ListBox / Stack Panel sorting and item ordering.

MarekHolly · 02 May 2025, 14:03

Hi there.
I have ListBox, with Stack panel inside.

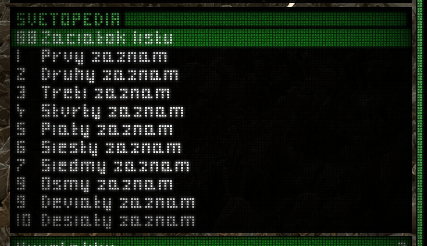

: 2025-05-02_13h56_51.png (168.58 KiB) Viewed 11234 times

Content is driven by data set. Now there is 14 items, but there can be easily 50 + items in future, as game progresses. But my UI is designed to show just 10. Currently stack panel always starts with first entry at the top. But I need it to end with last entry at the bottom by default. So, as I said, I have 14 items right now, I would like to have item number 14 at the bottom, then 13 above and so on. Is it doable?

Thanks

Marek

05 May 2025, 18:48

Just to make sure we understand the question... do you want to scroll the ListBox to the end when it gets loaded?

MarekHolly · 09 May 2025, 07:44

Yes, exactly.

12 May 2025, 10:54

For this you'll need an interactivity action that you can attach to the ListBox ScrollViewer (the one defined in ListBox's template), so when it gets loaded, it will scroll to the end of the list:

<ScrollViewer ...>
  <b:Interaction.Triggers>
    <b:EventTrigger EventName="Loaded">
      <local:ScrollToEndAction/>
    </b:EventTrigger EventName="Loaded">
  </b:Interaction.Triggers>
  ...
</ScrollViewer>

public class ScrollToEndAction: public TriggerAction<ScrollViewer>
{
  protected override void Invoke(object parameter)
  {
    ScrollViewer sv = AssociatedObject;
    if (sv != null) sv.ScrollToEnd();
  }
}

beshbalik · 13 May 2025, 15:11

Could you please explain in more detail where exactly I should use this code?

public class ScrollToEndAction: public TriggerAction<ScrollViewer>
{
  protected override void Invoke(object parameter)
  {
    ScrollViewer sv = AssociatedObject;
    if (sv != null) sv.ScrollToEnd();
  }
}

How do I correctly use Noesis Studio together with C#?

21 May 2025, 10:09

In case your project is built in Unity, you can create that interactivity action in C#. If it is a C++ project, then you have to write an equivalent code in C++.

The action should be added to the ScrollViewer contained in the ListBox template.

As Studio is not yet integrated into the Unity plugin or included in the SDK, your custom classes won't be visible in Studio, so you'll have to manually add for now this piece to your xaml:

<ScrollViewer ...>
  <b:Interaction.Triggers>
    <b:EventTrigger EventName="Loaded">
      <local:ScrollToEndAction/>
    </b:EventTrigger EventName="Loaded">
  </b:Interaction.Triggers>
  ...
</ScrollViewer>
