View Issue Details

IDProjectCategoryView StatusLast Update
0001684NoesisGUIC++ SDKpublic2026-04-27 12:17
ReporterJoren Assigned Tosfernandez
PrioritynormalSeverityfeature
Status feedbackResolutionopen
Product Version3.0
Target Version3.2.14
Summary0001684: Support for BaseAlignment for Inline elements
Description

As described in this thread. https://www.noesisengine.com/forums/viewtopic.php?f=3&t=1973#p11071

Support for BaseAlignment for inline elements.

Attached Files
PlatformAny

Activities

nikobarli

nikobarli

2021-11-25 09:35

reporter   ~0007613

I think we also need this to support superscript/subscript text on TextBlock.
If there is workaround, please let us know.

sfernandez

sfernandez

2021-11-25 11:12

manager   ~0007614

As a workaround you can use a InlineUIContainer containing a TextBlock with the appropriate size and margin:

  <TextBlock FontSize="20" HorizontalAlignment="Center" VerticalAlignment="Center">
<Run Text="Text with"/>
<InlineUIContainer><TextBlock FontSize="12" Text="superscript" Margin="0,-12,0,0"/></InlineUIContainer>
<Run Text="and"/>
<InlineUIContainer><TextBlock FontSize="12" Text="subscript" Margin="0,4,0,0"/></InlineUIContainer>
</TextBlock>

nikobarli

nikobarli

2021-11-25 12:13

reporter   ~0007615

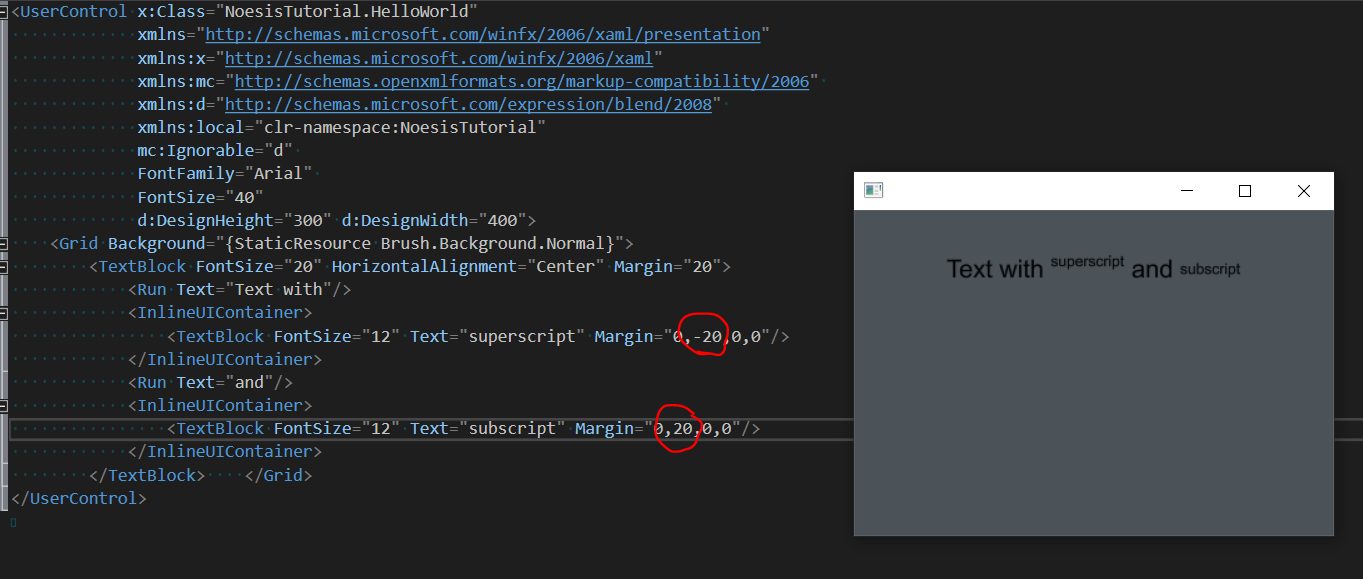

Tried the workaround here. Seems to work for superscript but not the subscript. And somehow I need to add top margin of -20 to make the superscript looks nice.
Please see the attachment.

sfernandez

sfernandez

2021-11-25 12:21

manager   ~0007616

Please try using a negative bottom margin for the subscript:

<TextBlock FontSize="12" Text="subscript" Margin="0,0,0,-10"/>

I have to check why our InlineUIContainers are not behaving like WPF regarding to the margins.

nikobarli

nikobarli

2021-11-25 12:34

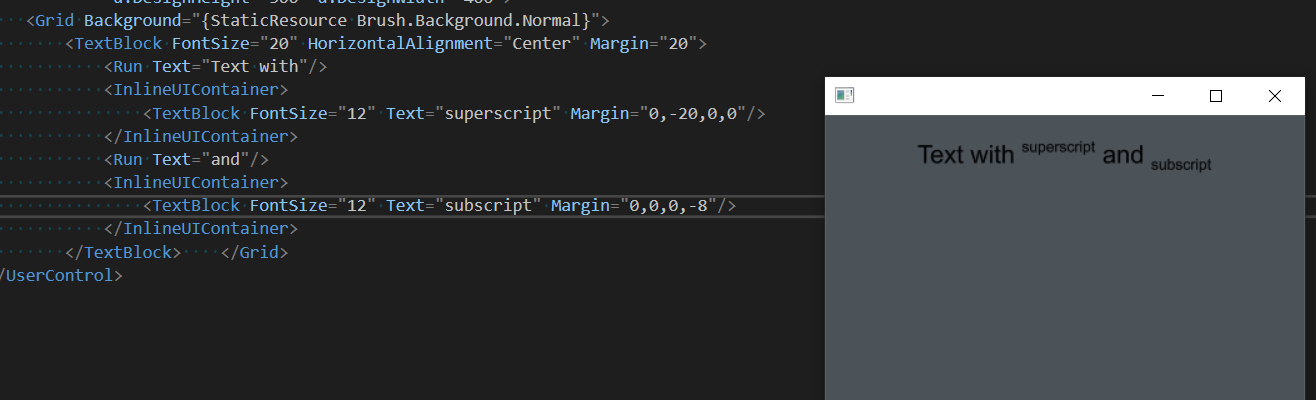

reporter   ~0007618

Thanks. Negative bottom margin seems to work.

lachfoy

lachfoy

2024-05-31 08:03

reporter   ~0009603

Would also be very keen on this feature for showing icons and tooltips in our localized text.

FrancoisRecisio

FrancoisRecisio

2024-08-22 11:38

reporter   ~0009900

I'm also interested in this feature. The negative margin works well but finding the perfect value is not easy and depends on the font size.
