Summary0001374: NoesisGUIExtensions: PlaneProjection rotate OpacityMask
Description

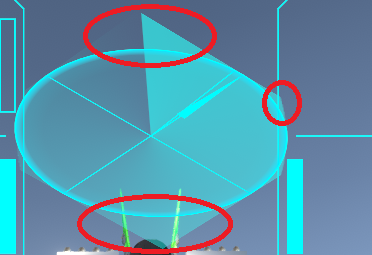

Drawing is wrong when you rotate control using OpacityMask with PlaneProjection.
Rotation animation speed is also different.

Steps To Reproduce
            <noesis:Element.Projection>
                <noesis:PlaneProjection RotationX="45" RotationY="-30" RotationZ="-30" />
            </noesis:Element.Projection>

                        <Canvas ClipToBounds="True" Background="#8000FFFF">
                            <Canvas.OpacityMask>
                                <ImageBrush ImageSource="radarMask2.png">
                                    <ImageBrush.RelativeTransform>
                                        <RotateTransform CenterX="0.5" CenterY="0.5" />
                                    </ImageBrush.RelativeTransform>
                                </ImageBrush>
                            </Canvas.OpacityMask>
                            <Canvas.Triggers>
                                <EventTrigger RoutedEvent="FrameworkElement.Loaded">
                                    <BeginStoryboard>
                                        <Storyboard>
                                            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(Canvas.OpacityMask).(Brush.RelativeTransform).(RotateTransform.Angle)" RepeatBehavior="Forever">
                                                <EasingDoubleKeyFrame KeyTime="0:0:0" Value="0"/>
                                                <EasingDoubleKeyFrame KeyTime="0:0:4" Value="360"/>
                                            </DoubleAnimationUsingKeyFrames>
                                        </Storyboard>
                                    </BeginStoryboard>
                                </EventTrigger>
                            </Canvas.Triggers>
                        </Canvas>

Compare Rotation Speed.
<Line x:Name="RadarEllipse" X1="150" Y1="150" X2="300" Y2="150" Stroke="Cyan" StrokeThickness="1" RenderTransformOrigin="0,0">
<Line.RenderTransform>
<RotateTransform Angle="0" CenterX="150" CenterY="150"/>
</Line.RenderTransform>
<Line.Triggers>
<EventTrigger RoutedEvent="FrameworkElement.Loaded">
<BeginStoryboard>
<Storyboard>
<!-- Vertical inverted bug. -->
<DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(Line.RenderTransform).(RotateTransform.Angle)" RepeatBehavior="Forever" >
<EasingDoubleKeyFrame KeyTime="0:0:4" Value="0" />
<EasingDoubleKeyFrame KeyTime="0:0:0" Value="360"/>
</DoubleAnimationUsingKeyFrames>
</Storyboard>
</BeginStoryboard>
</EventTrigger>
</Line.Triggers>
</Line>

Attached Files
PlatformWindows

Relationships

related to 0001373 resolvedsfernandez OpacityMask Vertically and Rotate Inverted.

Activities

arukari

arukari

2019-03-20 04:25

reporter   ~0005541

I'm waiting for fix.
