| Summary | 0001415: Drawing Path takes a very long time when the pitch is less than 0.5 pixel | ||||
| Description | We have a scenario where we draws a line path from approx 1000~2000 points, and in some cases NoesisGUI rendering became very slow to more than 500 ms (less than 2 fps). We tracked down the problem and it seems that it happens when the pitch of the points are less than 0.5 pixel. | ||||
| Attached Files | DataBinding.cpp (3,807 bytes)
#include "stdafx.h"
#include <boost/make_shared.hpp>
#include "NoesisTutorial.h"
#include <ZioLog/ZioLog.h>
#include <ZioLog/ZBLK.h>
// #ifdef _DEBUG
// #define new DEBUG_NEW
// #endif
ZLOGFACILITY("DataBinding");
using namespace Noesis;
using namespace NoesisUtil;
namespace NoesisTutorial {
//----------------------------------------------------
// DataBinding NoesisGUI element
//----------------------------------------------------
class DataBinding : public UserControl
{
private:
void InitializeComponent()
{
__ZBLK__;
LINFO((__FUNCTION__));
GUI::LoadComponent(this, FormatResourcePath("DataBinding.xaml").c_str());
}
public:
DataBinding()
{
LINFO((__FUNCTION__));
InitializeComponent();
}
virtual ~DataBinding()
{
__ZBLK__;
LINFO((__FUNCTION__));
}
public:
NS_IMPLEMENT_INLINE_REFLECTION(DataBinding, UserControl)
{
NsMeta<TypeId>("NoesisTutorial.DataBinding");
}
};
//----------------------------------------------------
// DataBindingVM
//----------------------------------------------------
NS_DECLARE_SYMBOL(PointCount);
NS_DECLARE_SYMBOL(PathLength);
NS_DECLARE_SYMBOL(Pitch);
NS_DECLARE_SYMBOL(PathData);
class DataBindingVM : public BaseComponent, public INotifyPropertyChanged
{
public:
NS_IMPLEMENT_INTERFACE_FIXUP
public:
DataBindingVM()
{
setupPath();
}
void setupPath()
{
int yBase = 50;
m_pitch = (float)m_length / (float)m_count;
m_pathData = MakePtr<StreamGeometry>();
StreamGeometryContext context = m_pathData->Open();
context.BeginFigure(Point(0, yBase), false);
for (int i = 0; i < m_count; i++) {
float x = i * m_pitch;
float y = yBase + (((i % 2) == 0) ? 10 : -10);
context.LineTo(Point(x, y));
}
context.Close();
_propertyChanged(this, NSS(Pitch));
_propertyChanged(this, NSS(PathData));
}
// From INotifyPropertyChanged
PropertyChangedEventHandler& PropertyChanged() override { return _propertyChanged; }
private:
Ptr<StreamGeometry> m_pathData;
int m_count = 100;
int m_length = 300;
float m_pitch = .0f;
int GetPointNum() const { return m_count; }
float GetLength() const { return m_length; }
void SetPointNum(int num) {
m_count = num;
_propertyChanged(this, NSS(PointCount));
setupPath();
}
void SetLength(float w) {
m_length = w;
_propertyChanged(this, NSS(PathLength));
setupPath();
}
PropertyChangedEventHandler _propertyChanged;
NS_IMPLEMENT_INLINE_REFLECTION(DataBindingVM, BaseComponent)
{
NsMeta<TypeId>("NoesisTutorial.DataBindingVM");
NsImpl<INotifyPropertyChanged>();
NsProp("PointCount", &DataBindingVM::GetPointNum, &DataBindingVM::SetPointNum);
NsProp("PathLength", &DataBindingVM::GetLength, &DataBindingVM::SetLength);
NsProp("Pitch", &DataBindingVM::m_pitch);
NsProp("PathData", &DataBindingVM::m_pathData);
}
};
Ptr<BaseComponent> CreateContext_DataBinding() {
return MakePtr<DataBindingVM>();
}
NOESIS_COMP_REGISTRATION(DataBinding);
NOESIS_COMP_REGISTRATION(DataBindingVM);
}
DataBinding.xaml (1,353 bytes)
<UserControl x:Class="NoesisTutorial.DataBinding"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:local="clr-namespace:NoesisTutorial"
mc:Ignorable="d"
FontFamily="Meiryo UI"
d:DataContext="{d:DesignInstance {x:Type local:DataBindingVM}, IsDesignTimeCreatable=True}"
d:DesignHeight="300" d:DesignWidth="400">
<Grid Background="White">
<StackPanel Orientation="Vertical">
<TextBlock Foreground="Black" Text="{Binding PointCount, StringFormat=Point Count: {0}}"/>
<Slider Minimum="100" Maximum="2000" Value="{Binding PointCount}"/>
<TextBlock Foreground="Black" Text="{Binding PathLength, StringFormat=Length: {0}}"/>
<Slider Minimum="10" Maximum="1000" Value="{Binding PathLength}"/>
<TextBlock Foreground="Black" Text="{Binding Pitch, StringFormat=Pitch: {0}}"/>
<Canvas>
<Path Data="{Binding PathData}" Stroke="Red" />
</Canvas>
</StackPanel>
</Grid>
</UserControl>
| ||||
| Platform | Windows | ||||
 |

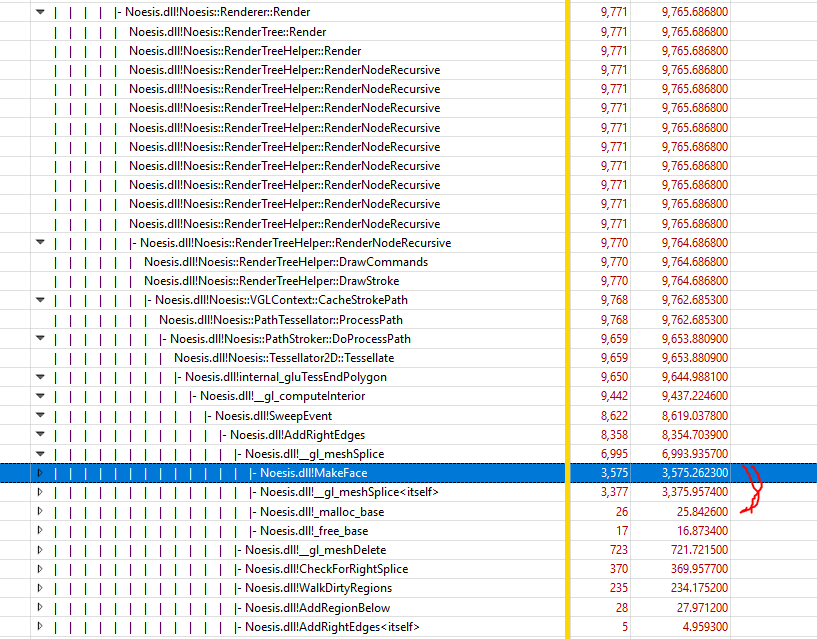

I ran ETW to find the hotspot. |
 |
The tessellator is going nuts at that resolution. I will have a look at it later. Meanwhile could you limit the pitch length? |
|
|
We are still away from release date, so I think we can wait for the fix. |
|
|
Hi Jesus, Is there any update on this ? We deferred implementing a feature to the next version due to this. |
|
|
Hi Niko, No updates yet sorry about it. Yes, I want to have this fixed in 3.0.X Do you think it is possible to pack a minimal application reproducing the issue? Thanks! |
|
|
Hi Jesus, I attached a patch for your HelloWorld demo program (Noesis version 2.x). NoesisPathSlow.patch (24,151 bytes)

Index: Packages/Samples/HelloWorld/Data/MainWindow.xaml
===================================================================
--- Packages/Samples/HelloWorld/Data/MainWindow.xaml (revision 146550)
+++ Packages/Samples/HelloWorld/Data/MainWindow.xaml (working copy)
@@ -7,209 +7,18 @@
mc:Ignorable="d"
Background="#FF124C7A"
Title="NoesisGUI - Hello, World!">
+ <Grid Background="White">
+ <StackPanel Orientation="Vertical">
+ <TextBlock Foreground="Black" Text="{Binding PointCount, StringFormat=Point Count: {0}}"/>
+ <Slider Minimum="100" Maximum="2000" Value="{Binding PointCount}"/>
- <Window.Resources>
- <Storyboard x:Key="Intro">
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(FrameworkElement.Width)" Storyboard.TargetName="Word">
- <EasingDoubleKeyFrame KeyTime="0" Value="0"/>
- <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1" Value="276.8">
- <EasingDoubleKeyFrame.EasingFunction>
- <CubicEase EasingMode="EaseInOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="GUI">
- <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:0.5" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:0.8" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:1.2" Value="#FF2AA6E2"/>
- </ColorAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.Y)" Storyboard.TargetName="Logo">
- <EasingDoubleKeyFrame KeyTime="0" Value="-4"/>
- <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
- </DoubleAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[2].(RotateTransform.Angle)" Storyboard.TargetName="Logo">
- <EasingDoubleKeyFrame KeyTime="0" Value="-180"/>
- <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0">
- <EasingDoubleKeyFrame.EasingFunction>
- <ExponentialEase EasingMode="EaseInOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleX)" Storyboard.TargetName="Logo">
- <EasingDoubleKeyFrame KeyTime="0" Value="0.5"/>
- <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1">
- <EasingDoubleKeyFrame.EasingFunction>
- <BackEase EasingMode="EaseOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleY)" Storyboard.TargetName="Logo">
- <EasingDoubleKeyFrame KeyTime="0" Value="0.5"/>
- <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1">
- <EasingDoubleKeyFrame.EasingFunction>
- <BackEase EasingMode="EaseOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="Line1">
- <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:0.3" Value="#FF2AA6E2"/>
- </ColorAnimationUsingKeyFrames>
- <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="Line2">
- <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:0.1" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:0.4" Value="#FF2AA6E2"/>
- </ColorAnimationUsingKeyFrames>
- <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="Line3">
- <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:0.2" Value="#002AA6E2"/>
- <EasingColorKeyFrame KeyTime="0:0:0.5" Value="#FF2AA6E2"/>
- </ColorAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleX)" Storyboard.TargetName="GUI">
- <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1"/>
- <EasingDoubleKeyFrame KeyTime="0:0:0.8" Value="1.1"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="1">
- <EasingDoubleKeyFrame.EasingFunction>
- <ExponentialEase EasingMode="EaseInOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleY)" Storyboard.TargetName="GUI">
- <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1"/>
- <EasingDoubleKeyFrame KeyTime="0:0:0.8" Value="1.1"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="1">
- <EasingDoubleKeyFrame.EasingFunction>
- <ExponentialEase EasingMode="EaseInOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(TextElement.Foreground).(SolidColorBrush.Color)" Storyboard.TargetName="Hello">
- <EasingColorKeyFrame KeyTime="0" Value="Transparent"/>
- <EasingColorKeyFrame KeyTime="0:0:1" Value="Transparent"/>
- <EasingColorKeyFrame KeyTime="0:0:1.3" Value="White">
- <EasingColorKeyFrame.EasingFunction>
- <SineEase EasingMode="EaseInOut"/>
- </EasingColorKeyFrame.EasingFunction>
- </EasingColorKeyFrame>
- </ColorAnimationUsingKeyFrames>
- <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(TextElement.Foreground).(SolidColorBrush.Color)" Storyboard.TargetName="World">
- <EasingColorKeyFrame KeyTime="0" Value="Transparent"/>
- <EasingColorKeyFrame KeyTime="0:0:1.2" Value="Transparent"/>
- <EasingColorKeyFrame KeyTime="0:0:1.5" Value="White">
- <EasingColorKeyFrame.EasingFunction>
- <SineEase EasingMode="EaseInOut"/>
- </EasingColorKeyFrame.EasingFunction>
- </EasingColorKeyFrame>
- </ColorAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="Hello">
- <EasingDoubleKeyFrame KeyTime="0" Value="-40"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1" Value="-40"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.3" Value="0">
- <EasingDoubleKeyFrame.EasingFunction>
- <SineEase EasingMode="EaseInOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="World">
- <EasingDoubleKeyFrame KeyTime="0" Value="-40"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="-40"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.5" Value="0">
- <EasingDoubleKeyFrame.EasingFunction>
- <SineEase EasingMode="EaseInOut"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[1].(SkewTransform.AngleX)" Storyboard.TargetName="Hello">
- <EasingDoubleKeyFrame KeyTime="0" Value="0"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1" Value="20"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.3" Value="0">
- <EasingDoubleKeyFrame.EasingFunction>
- <BackEase EasingMode="EaseIn"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[1].(SkewTransform.AngleX)" Storyboard.TargetName="World">
- <EasingDoubleKeyFrame KeyTime="0" Value="0"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="20"/>
- <EasingDoubleKeyFrame KeyTime="0:0:1.5" Value="0">
- <EasingDoubleKeyFrame.EasingFunction>
- <BackEase EasingMode="EaseIn"/>
- </EasingDoubleKeyFrame.EasingFunction>
- </EasingDoubleKeyFrame>
- </DoubleAnimationUsingKeyFrames>
- </Storyboard>
- </Window.Resources>
- <Window.Triggers>
- <EventTrigger RoutedEvent="FrameworkElement.Loaded">
- <BeginStoryboard Storyboard="{StaticResource Intro}"/>
- </EventTrigger>
- </Window.Triggers>
- <Grid>
- <Viewbox>
- <Grid Width="325.8" Margin="24">
- <Grid HorizontalAlignment="Center">
- <Grid.ColumnDefinitions>
- <ColumnDefinition Width="Auto"/>
- <ColumnDefinition Width="Auto"/>
- </Grid.ColumnDefinitions>
- <Grid.RowDefinitions>
- <RowDefinition/>
- <RowDefinition/>
- </Grid.RowDefinitions>
- <Grid x:Name="Logo" Grid.Column="0" RenderTransformOrigin="0.5,0.5" Width="49">
- <Grid.RenderTransform>
- <TransformGroup>
- <ScaleTransform/>
- <SkewTransform/>
- <RotateTransform/>
- <TranslateTransform/>
- </TransformGroup>
- </Grid.RenderTransform>
- <Path x:Name="Line1" Data="M6.1,16 L13.7,5.7 32,8 35.7,16.7 39.4,11.9 35.5,3 11.2,0 0,15.2 3.8,24.1 9.5,24.8 6.1,16 z" Fill="#FF2AA6E2" VerticalAlignment="Center" Height="24.8" Margin="0,5.5,9.6,16.5"/>
- <Path x:Name="Line2" Data="M15.5,6 L20.6,17.8 9.5,32.6 0,31.4 2.4,37 12.1,38.1 26.8,18.5 19.2,1.2 9.7,0 6.2,4.6 15.5,6.1 z" Fill="#FF2AA6E2" VerticalAlignment="Center" RenderTransformOrigin="0.5,0.5" Height="38.1" Margin="22.2,0,0,8.7"/>
- <Path x:Name="Line3" Data="M26,26.8 L13.3,25.4 6.1,8.4 6,8.4 11.8,0.8 5.7,0 0,7.8 9.5,30.3 28.4,32.5 34.1,24.8 31.9,19.4 z" Fill="#FF2AA6E2" VerticalAlignment="Center" RenderTransformOrigin="0.5,0.5" Height="32.5" Margin="9.3,14.3,5.6,0"/>
- </Grid>
- <Grid x:Name="Word" Grid.Column="1" Width="276.8">
- <StackPanel Orientation="Horizontal" HorizontalAlignment="Right">
- <Path x:Name="Noesis" Data="M26.0999999999999,16.9L25.8,16.9C25.2,16.9 24.5999999999999,16.6999999999999 24.0999999999999,16.4 23.5999999999999,16.1 23.0999999999999,15.6999999999999 22.6999999999998,15.1999999999999L12.0999999999999,2.99999999999989C11.1999999999998,1.99999999999989 10.1999999999998,1.19999999999993 9.19999999999982,0.799999999999841 8.19999999999982,0.299999999999841 6.99999999999977,0.0999999999997954 5.49999999999977,0.0999999999997954L-2.27373675443232E-13,0.0999999999997954 -2.27373675443232E-13,21.9999999999998 5.19999999999982,21.9999999999998 5.19999999999982,5.19999999999982 5.49999999999977,5.19999999999982C6.09999999999968,5.19999999999982 6.69999999999982,5.39999999999986 7.19999999999982,5.69999999999982 7.79999999999973,5.99999999999977 8.19999999999982,6.39999999999986 8.59999999999991,6.89999999999986L19,18.9999999999999C19.9000000000001,20.0999999999999 20.9000000000001,20.8999999999999 21.9000000000001,21.3999999999999 23,21.8999999999999 24.2,22.0999999999999 25.8000000000002,22.0999999999999L31.3000000000002,22.0999999999999 31.3000000000002,-1.13686837721616E-13 26.1000000000001,-1.13686837721616E-13 26.0999999999999,16.9z M59.3,0L42.3999999999999,0C36.8999999999999,0,34.0999999999999,2.29999999999995,34.0999999999999,7L34.0999999999999,15C34.0999999999999,19.6,36.8999999999999,22,42.3999999999999,22L59.3,22C64.8,22,67.5999999999999,19.7,67.5999999999999,15L67.5999999999999,7C67.5999999999999,2.39999999999998,64.8,0,59.3,0z M62.2,15C62.2,16.2,61.2,16.9,59.3,16.9L42.3999999999999,16.9C40.4999999999998,16.9,39.4999999999998,16.3,39.4999999999998,15L39.4999999999998,7C39.4999999999998,5.70000000000005,40.4999999999998,5.10000000000002,42.3999999999999,5.10000000000002L59.3,5.10000000000002C61.2,5.10000000000002,62.2,5.70000000000005,62.2,7L62.2,15z M75.7,15.7999999999997L75.7,13.5999999999999 100.9,13.5999999999999 100.9,8.49999999999989 75.7,8.49999999999989 75.7,6.29999999999984C75.7,5.5999999999998,76.1000000000001,5.19999999999982,76.9000000000001,5.19999999999982L101,5.19999999999982 101,-2.27373675443232E-13 76.9000000000001,-2.27373675443232E-13C72.5,-2.27373675443232E-13,70.3000000000002,1.79999999999973,70.3000000000002,5.29999999999973L70.3000000000002,16.4999999999998C70.3000000000002,20.0999999999998,72.5000000000002,21.8999999999998,76.9000000000001,21.8999999999998L101.1,21.8999999999998 101.1,16.7999999999997 76.9000000000001,16.7999999999997C76.1000000000001,16.8999999999998,75.7,16.4999999999998,75.7,15.7999999999997z M128.5,8.39999999999998L110.2,8.39999999999998C109.4,8.39999999999998,108.9,8.10000000000002,108.9,7.60000000000002L108.9,5.89999999999998C108.9,5.39999999999998,109.3,5.10000000000002,110.2,5.10000000000002L134.4,5.10000000000002 134.4,0 110.2,0C105.8,0,103.6,1.79999999999995,103.6,5.29999999999995L103.6,8.79999999999995C103.6,11.9,105.8,13.5,110.2,13.5L128.5,13.5C129.3,13.5,129.7,13.8,129.7,14.3L129.7,16.0999999999999C129.7,16.5999999999999,129.3,16.8999999999999,128.5,16.8999999999999L104.3,16.8999999999999 104.3,21.9999999999999 128.5,21.9999999999999C132.9,21.9999999999999,135.1,20.1999999999999,135.1,16.6999999999999L135.1,13.6999999999999C135.1,10.1999999999999,132.9,8.39999999999998,128.5,8.39999999999998z M137.8,0L143.2,0 143.2,21.9 137.8,21.9z M170.8,8.39999999999998L152.5,8.39999999999998C151.7,8.39999999999998,151.2,8.10000000000002,151.2,7.60000000000002L151.2,5.89999999999998C151.2,5.39999999999998,151.6,5.10000000000002,152.5,5.10000000000002L176.7,5.10000000000002 176.7,0 152.5,0C148.1,0,145.9,1.79999999999995,145.9,5.29999999999995L145.9,8.79999999999995C145.9,11.9,148.1,13.5,152.5,13.5L170.8,13.5C171.6,13.5,172,13.8,172,14.3L172,16.0999999999999C172,16.5999999999999,171.6,16.8999999999999,170.8,16.8999999999999L146.6,16.8999999999999 146.6,21.9999999999999 170.8,21.9999999999999C175.2,21.9999999999999,177.4,20.1999999999999,177.4,16.6999999999999L177.4,13.6999999999999C177.3,10.1999999999999,175.1,8.39999999999998,170.8,8.39999999999998z" Fill="White" VerticalAlignment="Center" Margin="12,0,0,0"/>
- <Path x:Name="GUI" Data="M61.9000244140625,16.1C61.9000244140625,16.6,61.5000244140624,16.9,60.7000244140625,16.9L41.5000244140624,16.9C40.7000244140625,16.9,40.2000244140625,16.6,40.2000244140625,16.1L40.2000244140625,0.100000000000023 34.8000244140624,0.100000000000023 34.8000244140624,16.7C34.8000244140624,20.3000000000001,37.0000244140624,22.1,41.4000244140623,22.1L60.6000244140623,22.1C65.0000244140624,22.1,67.2000244140622,20.3000000000001,67.2000244140622,16.8000000000001L67.2000244140622,1.13686837721616E-13 61.8000244140621,1.13686837721616E-13 61.8000244140621,16.1000000000001z M70.0000244140624,0L75.4000244140625,0 75.4000244140625,21.9 70.0000244140624,21.9z M20.1000244140623,8.60000000000002L20.1000244140623,14 26.8000244140624,14 26.8000244140624,16.9 6.60002441406232,16.9C5.80002441406236,16.9,5.30002441406236,16.5,5.30002441406236,15.8L5.30002441406236,6.19999999999993C5.30002441406236,5.49999999999989,5.70002441406245,5.09999999999991,6.60002441406232,5.09999999999991L31.6000244140623,5.09999999999991 31.6000244140623,-1.13686837721616E-13 6.60002441406232,-1.13686837721616E-13C2.20002441406223,-1.13686837721616E-13,2.44140624090505E-05,1.79999999999984,2.44140624090505E-05,5.29999999999984L2.44140624090505E-05,16.4999999999999C2.44140624090505E-05,20.0999999999999,2.20002441406245,21.8999999999999,6.60002441406232,21.8999999999999L32.2000244140622,21.8999999999999 32.2000244140622,8.49999999999989 20.1000244140623,8.49999999999989z" Fill="#FF2AA6E2" VerticalAlignment="Center" Margin="12,0,0,0" RenderTransformOrigin="1,0.5">
- <Path.RenderTransform>
- <TransformGroup>
- <ScaleTransform/>
- <SkewTransform/>
- <RotateTransform/>
- <TranslateTransform/>
- </TransformGroup>
- </Path.RenderTransform>
- </Path>
- </StackPanel>
- </Grid>
- <StackPanel x:Name="HelloWorld" Grid.Row="1" Grid.ColumnSpan="2" Margin="0,15,0,0" Orientation="Horizontal" HorizontalAlignment="Center">
- <TextBlock x:Name="Hello" Text="Hello," FontSize="20" Foreground="White" RenderTransformOrigin="0.5,0.5">
- <TextBlock.RenderTransform>
- <TransformGroup>
- <ScaleTransform/>
- <SkewTransform/>
- <RotateTransform/>
- <TranslateTransform/>
- </TransformGroup>
- </TextBlock.RenderTransform>
- </TextBlock>
- <TextBlock x:Name="World" Text="World!" FontSize="20" Foreground="White" Margin="5,0,0,0" RenderTransformOrigin="0.5,0.5">
- <TextBlock.RenderTransform>
- <TransformGroup>
- <ScaleTransform/>
- <SkewTransform/>
- <RotateTransform/>
- <TranslateTransform/>
- </TransformGroup>
- </TextBlock.RenderTransform>
- </TextBlock>
- </StackPanel>
- </Grid>
- </Grid>
- </Viewbox>
- </Grid>
+ <TextBlock Foreground="Black" Text="{Binding PathLength, StringFormat=Length: {0}}"/>
+ <Slider Minimum="10" Maximum="1000" Value="{Binding PathLength}"/>
+
+ <TextBlock Foreground="Black" Text="{Binding Pitch, StringFormat=Pitch: {0}}"/>
+ <Canvas>
+ <Path Data="{Binding PathData}" Stroke="Red" />
+ </Canvas>
+ </StackPanel>
+ </Grid>
</Window>
Index: Packages/Samples/HelloWorld/Src/Main.cpp
===================================================================
--- Packages/Samples/HelloWorld/Src/Main.cpp (revision 146550)
+++ Packages/Samples/HelloWorld/Src/Main.cpp (working copy)
@@ -14,6 +14,11 @@
#include <NsApp/Application.h>
#include <NsApp/Window.h>
+#include <NsGui/IntegrationAPI.h>
+#include <NsGui/StreamGeometry.h>
+#include <NsGui/StreamGeometryContext.h>
+#include <NsApp/NotifyPropertyChangedBase.h>
+
#include "App.xaml.bin.h"
#include "MainWindow.xaml.bin.h"
@@ -24,7 +29,66 @@
namespace HelloWorld
{
+ class DataBindingVM : public NoesisApp::NotifyPropertyChangedBase
+ {
+ public:
+ NS_IMPLEMENT_INTERFACE_FIXUP
+ public:
+ DataBindingVM()
+ {
+ setupPath();
+ }
+
+ void setupPath()
+ {
+ float yBase = 50;
+ m_pitch = (float)m_length / (float)m_count;
+
+ m_pathData = MakePtr<StreamGeometry>();
+ StreamGeometryContext context = m_pathData->Open();
+ context.BeginFigure(Point(0, yBase), false);
+
+ for (int i = 0; i < m_count; i++) {
+ float x = i * m_pitch;
+ float y = yBase + (((i % 2) == 0) ? 10 : -10);
+ context.LineTo(Point(x, y));
+ }
+ context.Close();
+
+ OnPropertyChanged("Pitch");
+ OnPropertyChanged("PathData");
+ }
+
+ private:
+ Ptr<StreamGeometry> m_pathData;
+ int m_count = 600;
+ float m_length = 600;
+ float m_pitch = .0f;
+
+ int GetPointNum() const { return m_count; }
+ float GetLength() const { return m_length; }
+
+ void SetPointNum(int num) {
+ m_count = num;
+ OnPropertyChanged("PointCount");
+ setupPath();
+ }
+ void SetLength(float w) {
+ m_length = w;
+ OnPropertyChanged("PathLength");
+ setupPath();
+ }
+
+ NS_IMPLEMENT_INLINE_REFLECTION(DataBindingVM, NotifyPropertyChangedBase)
+ {
+ NsProp("PointCount", &DataBindingVM::GetPointNum, &DataBindingVM::SetPointNum);
+ NsProp("PathLength", &DataBindingVM::GetLength, &DataBindingVM::SetLength);
+ NsProp("Pitch", &DataBindingVM::m_pitch);
+ NsProp("PathData", &DataBindingVM::m_pathData);
+ }
+ };
+
////////////////////////////////////////////////////////////////////////////////////////////////////
class App final: public Application
{
@@ -37,6 +101,24 @@
////////////////////////////////////////////////////////////////////////////////////////////////////
class MainWindow final: public Window
{
+public:
+ MainWindow::MainWindow()
+ {
+ Initialized() += MakeDelegate(this, &MainWindow::OnInitialized);
+ InitializeComponent();
+ }
+
+private:
+ void MainWindow::InitializeComponent()
+ {
+ GUI::LoadComponent(this, "MainWindow.xaml");
+ }
+
+ void MainWindow::OnInitialized(BaseComponent*, const EventArgs&)
+ {
+ SetDataContext(MakePtr<DataBindingVM>());
+ }
+
NS_IMPLEMENT_INLINE_REFLECTION(MainWindow, Window)
{
NsMeta<TypeId>("HelloWorld.MainWindow");
|
|
|
Hi Niko, I am already working on this, the internal tessellator is being optimized. I will keep you posted. |
|
|
Hi Niko, we have a new tessellator, it is around 10x faster that the current one. I have been trying your scenario today and although it is a lot faster it is still inefficient. The main reason is that when pitch goes under 0.5 the lines (stroked lines) start to auto-intersect and generate a lot of extra points. There are ways to improve this in the tessellator, but it is going to add more overhead to normal cases so I don't think that's a good idea. There are different solutions to solve this very efficiently. First, in 3.1 we are improving the OnRender virtual call to be very fast. So, once we have that in that 3.1 we recommend moving your code to OnRender and draw all the lines you need there. While you are in 3.0, I recommend the following:
Please, let me know your thoughts. The new tessellation is being integrated into /trunk/ this week. |
|
|
I also was able to slightly improve the efficiency of your code by generating individual lines instead of connected lines. This generates less geometry as the join is avoided.
|
|
|
Hi Jesus, Thank you for the update. We confirm that the workaround for 3.0 using MeshGeometry is feasible for us. |
