Summary0001617: Separator does not properly stretch in vertical orientation
Description

Using a (custom) Separator control the control does not properly stretch when it is used in a vertical layout. When using a LayoutTransform in WPF the Separator stretches its width to fill the vertical space (image 01), in NoesisGUI the width has to be manually defined for it to show up.

Steps To Reproduce

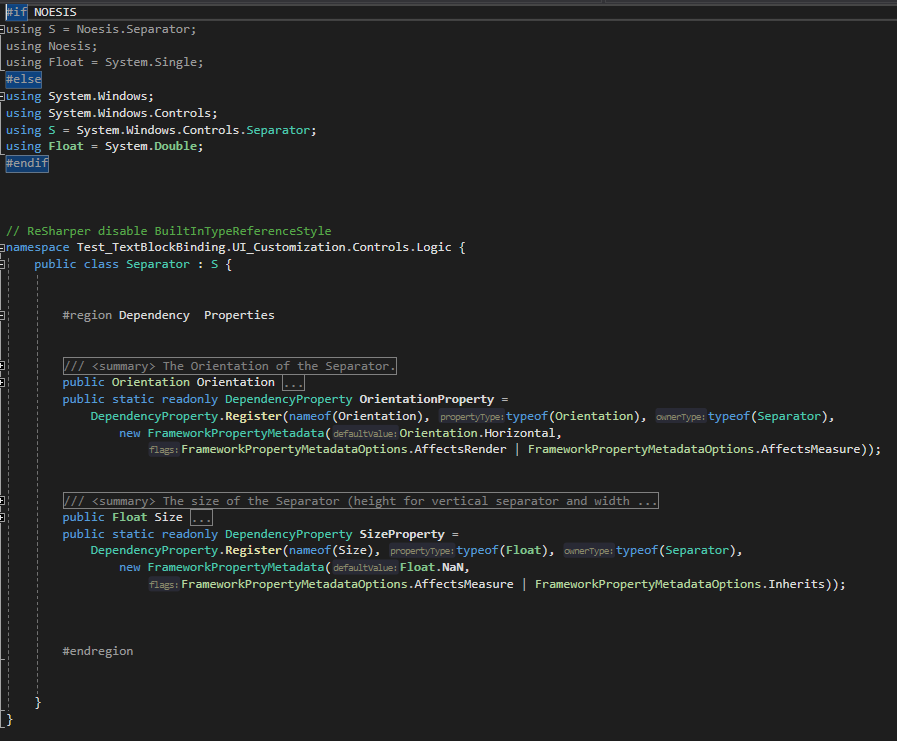

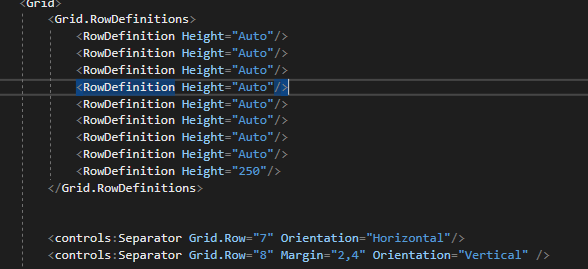

Define the code as defined in the attached images and the vertically oriented Separator will not show.

Attached Files
PlatformAny

Activities

sfernandez

sfernandez

2020-03-03 13:38

manager   ~0006121

Last edited: 2020-03-03 13:38

Could you please try adding the following template to your separator style?

<Setter Property="Template">

<Setter.Value>

<ControlTemplate TargetType="Separator">

<Rectangle Fill="{TemplateBinding Background}" Height="1"/>

</ControlTemplate>

</Setter.Value>

</Setter>
