Summary0003221: Border Effects do not Follow Border Shape
Description

Border Effects do not match the shape of the Border in which they are generated.

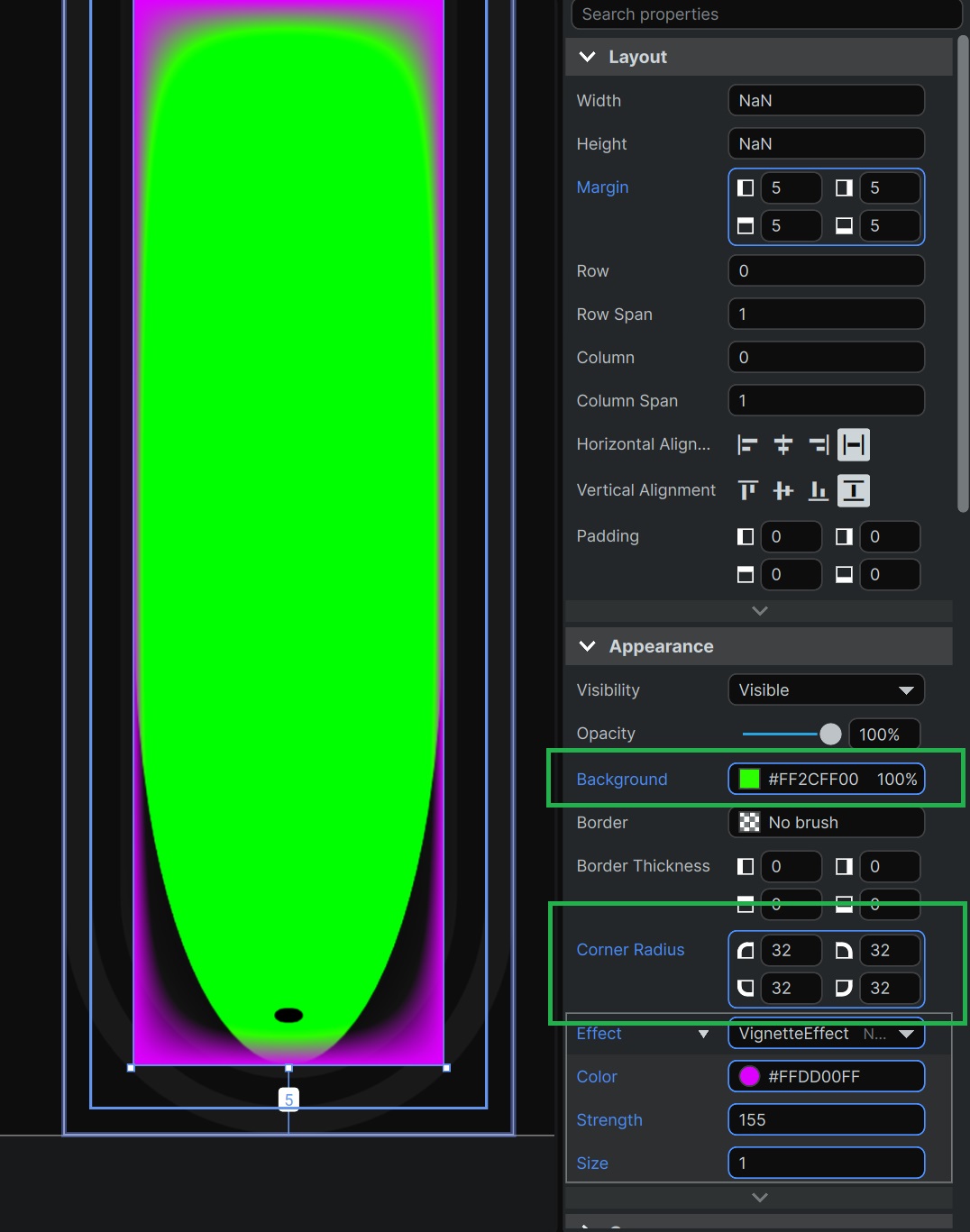

See attached screenshot.

Steps To Reproduce

Repro Steps:

1) Create a Page
2) Create a uniquely-coloured 128x128 Border Element with a 32,32,32,32 Corner Radius.
Observe how the corners round as expected.
3) Apply a Vignette Effect to the Border Element, and make it a contrasting colour to that selected for the Border.
Observe how the edges of the Vignette effect are squared off, and do not follow the rounding of the Border in which it is contained.

Expected Results: Border Effects follow the shape of the Border in which they are contained.

Attached Files
PlatformAny

Activities

Issue History

Date Modified Username Field Change
2024-04-09 15:46 dstewart New Issue
2024-04-09 15:46 dstewart File Added: VignetteShape.jpg
2024-04-09 18:52 dfranjic Assigned To => jsantos
2024-04-09 18:52 dfranjic Status new => assigned
2024-04-10 14:11 jsantos Target Version => Studio_Alpha
2025-04-02 11:09 sfernandez Target Version Studio_Alpha => Studio_Beta
