Summary0003456: SVGs Containing Bitmap Elements Don't Render Raster Data When Imported to Studio
Description

In addition to vector data, SVGs are also able to contain raster/bitmap data.

Currently, when importing an SVG into Studio, only the vector elements are brought in, and the bitmap portions omitted.
The bitmap elements are fully rendered and visible, when opening the file in both Adobe Illustrator, and Adobe Designer.

Attached you will find:
MixedSVGTest.afdesign - the original Design file, made in Affinity Designer
MixedSVGTest_RasterizeNothingExport.svg - the file exported in Affinity Designer, and imported into Studio, Adobe Illustrator, and Affinity Designer

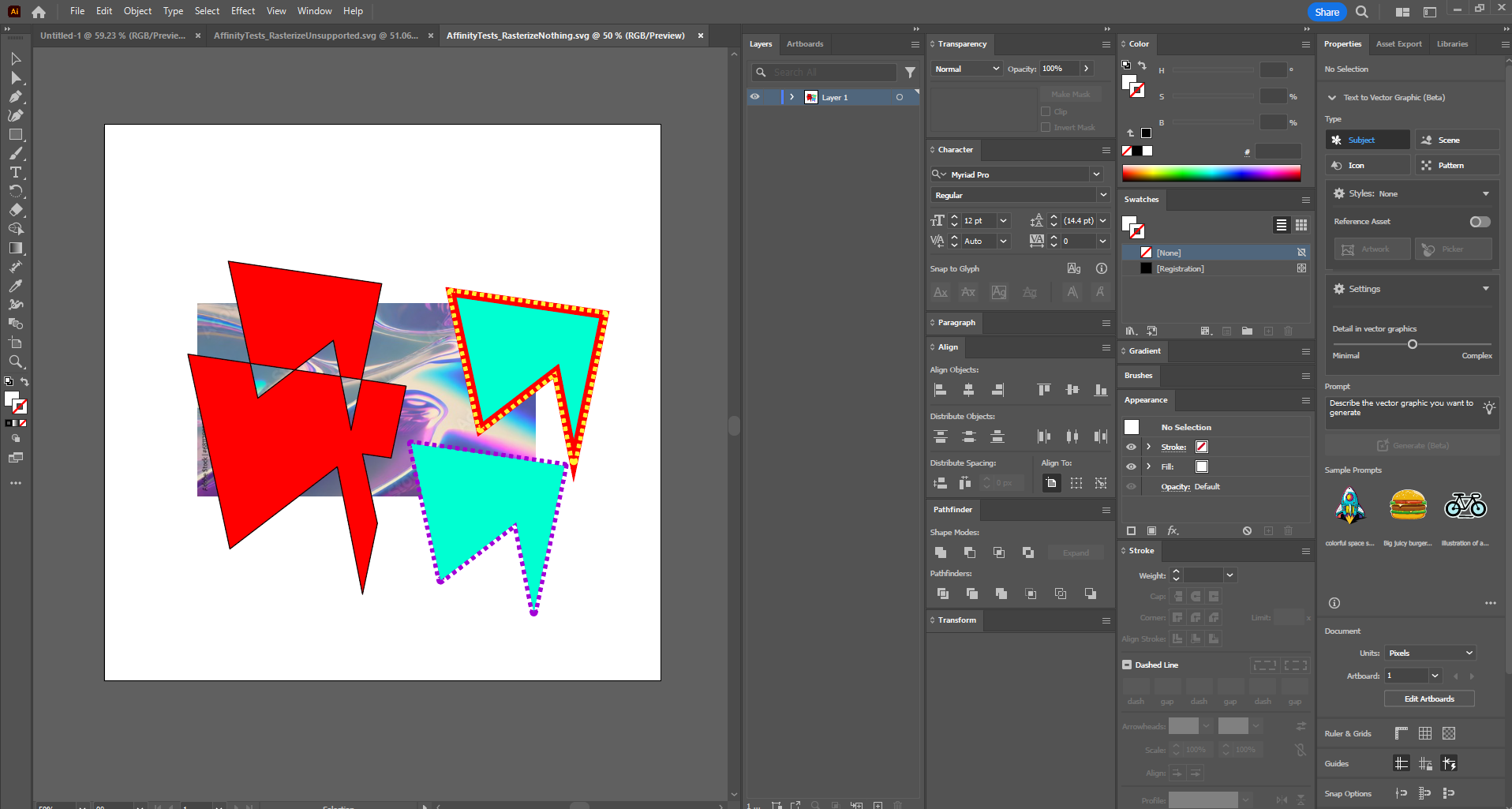

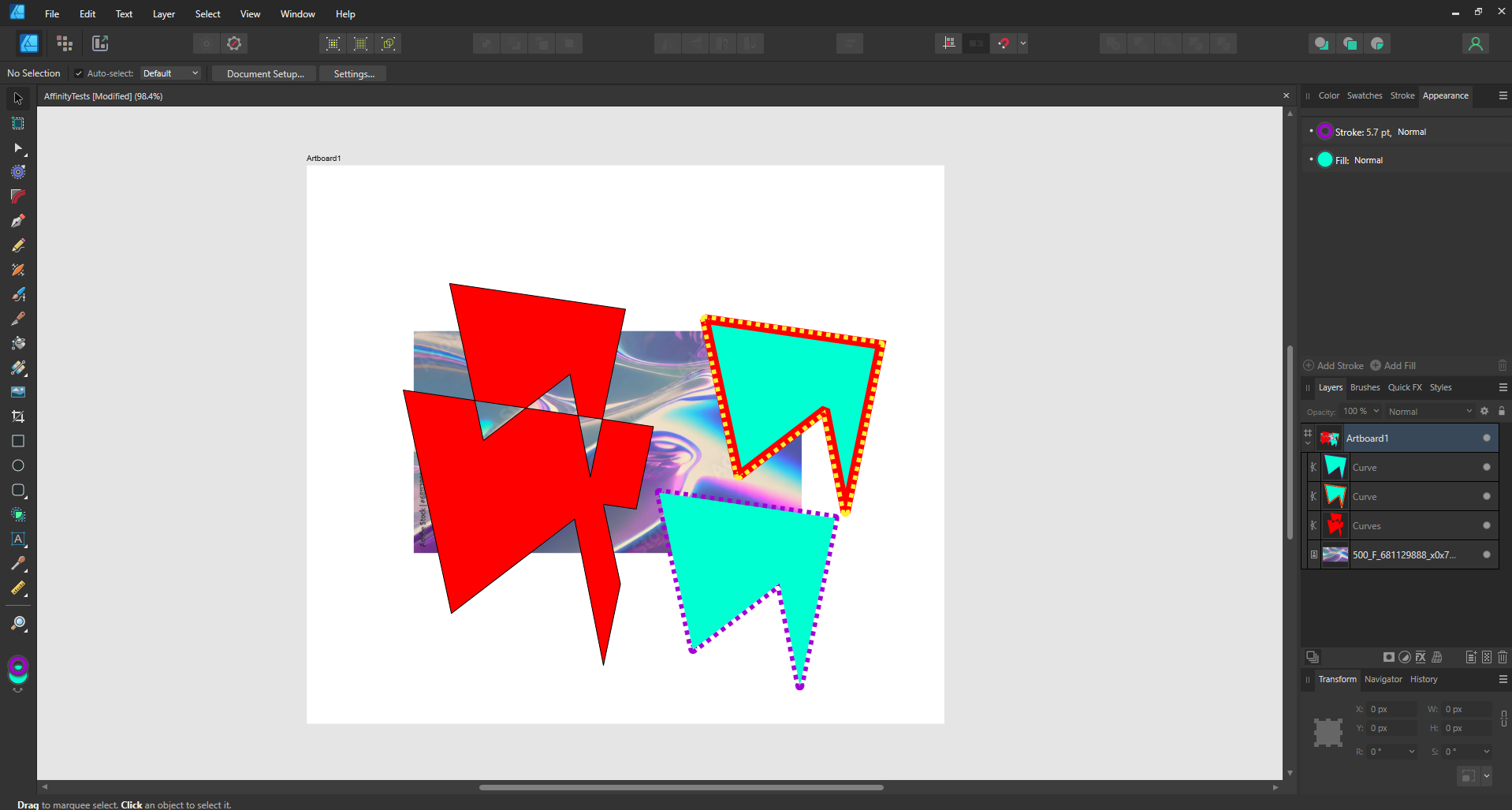

SVG_AffinityDesigner.png | SVGAdobeIllustrator.png | SVG_NoesisStudio.png - Screenshots of the SVG file when rendered in each application

Steps To Reproduce

Repro Steps:

1) Within Adobe Illustrator, or Affinity Designer, create a piece of artwork containing at least one vector layer, and one bitmap layer
2) Export the SVG
3) Open the SVG in Adobe Illustrator or Affinity Designer

Observe how both the vector and the bitmap elements appear on-screen.

4) Import the SVG into Noesis Studio

Observe how only the vector artwork has been imported, and the bitmap artwork is not imported or visible.

Expected Results: Studio renders SVGs according to the full data included in the SVG file, and in alignment with other vector editors.

Attached Files
MixedSVGTest_RasterizeNothingExport.svg (84,215 bytes)
MixedSVGTest_RasterizeNothingExport.svg (84,215 bytes)
MixedSVGTest.afdesign (613,989 bytes)
