View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0003553NoesisGUIC++ SDKpublic2024-07-25 15:362026-03-04 00:39
ReporterFrancoisRecisio Assigned Tojsantos
PriorityhighSeverityminor
Status assignedResolutionopen
Product Version3.2.4
Target Version3.2.13
Summary0003553: Strokes and shadows are broken when used together
Description

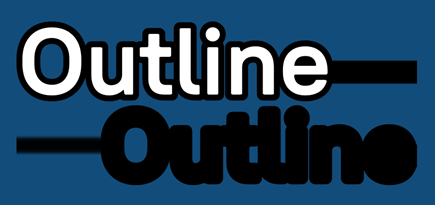

See attached file, can be reproduced with attached xaml

Steps To Reproduce

<Grid
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:noesis="clr-namespace:NoesisGUIExtensions;assembly=Noesis.GUI.Extensions"
Background="#FF124C7A">
<Viewbox>
<Grid Width="100">
<TextBlock
Text="Outline"
Foreground="#FFFFFF"
HorizontalAlignment="Center"
FontWeight="Bold" FontSize="16"
noesis:Text.Stroke="#000000" noesis:Text.StrokeThickness="2">
<TextBlock.Effect>
<DropShadowEffect BlurRadius="0" ShadowDepth="20" Opacity="1" />
</TextBlock.Effect>
</TextBlock>
</Grid>
</Viewbox>
</Grid>

Attached Files
PlatformAny

Relationships

related to 0003664 assignedsfernandez DropShadowEffect are not included in the object's bounds and overwrite the other drawn items in the same RT

Activities

Issue History

Date Modified Username Field Change
2024-07-25 15:36 FrancoisRecisio New Issue
2024-07-25 15:36 FrancoisRecisio File Added: outline.png
2024-07-25 15:54 jsantos Assigned To => jsantos
2024-07-25 15:54 jsantos Status new => assigned
2024-07-25 15:54 jsantos Target Version => 3.2.5
2024-10-24 12:22 jsantos Target Version 3.2.5 => 3.2.6
2024-11-14 17:42 jsantos Priority normal => high
2024-11-22 18:18 jsantos Target Version 3.2.6 => 3.2.7
2025-01-20 17:43 jsantos Target Version 3.2.7 => 3.2.8
2025-04-30 11:31 sfernandez Relationship added related to 0003664
2025-05-28 10:39 jsantos Target Version 3.2.8 => 3.2.9
2025-10-02 00:49 jsantos Target Version 3.2.9 => 3.2.10
2025-10-20 18:25 jsantos Target Version 3.2.10 => 3.2.11
2026-01-20 19:32 jsantos Target Version 3.2.11 => 3.2.12
2026-03-04 00:39 jsantos Target Version 3.2.12 => 3.2.13
