Summary0003604: Path Points Within a Canvas End Up in Unpredictable Positions when Animated
Description

Currently, animating individual Path Points along a Path is not possible to to be completed in a predictable manner, often resulting in the Path Point, or in certain cases, the entire Path, to be transposed to a completely different position than intended by the user.

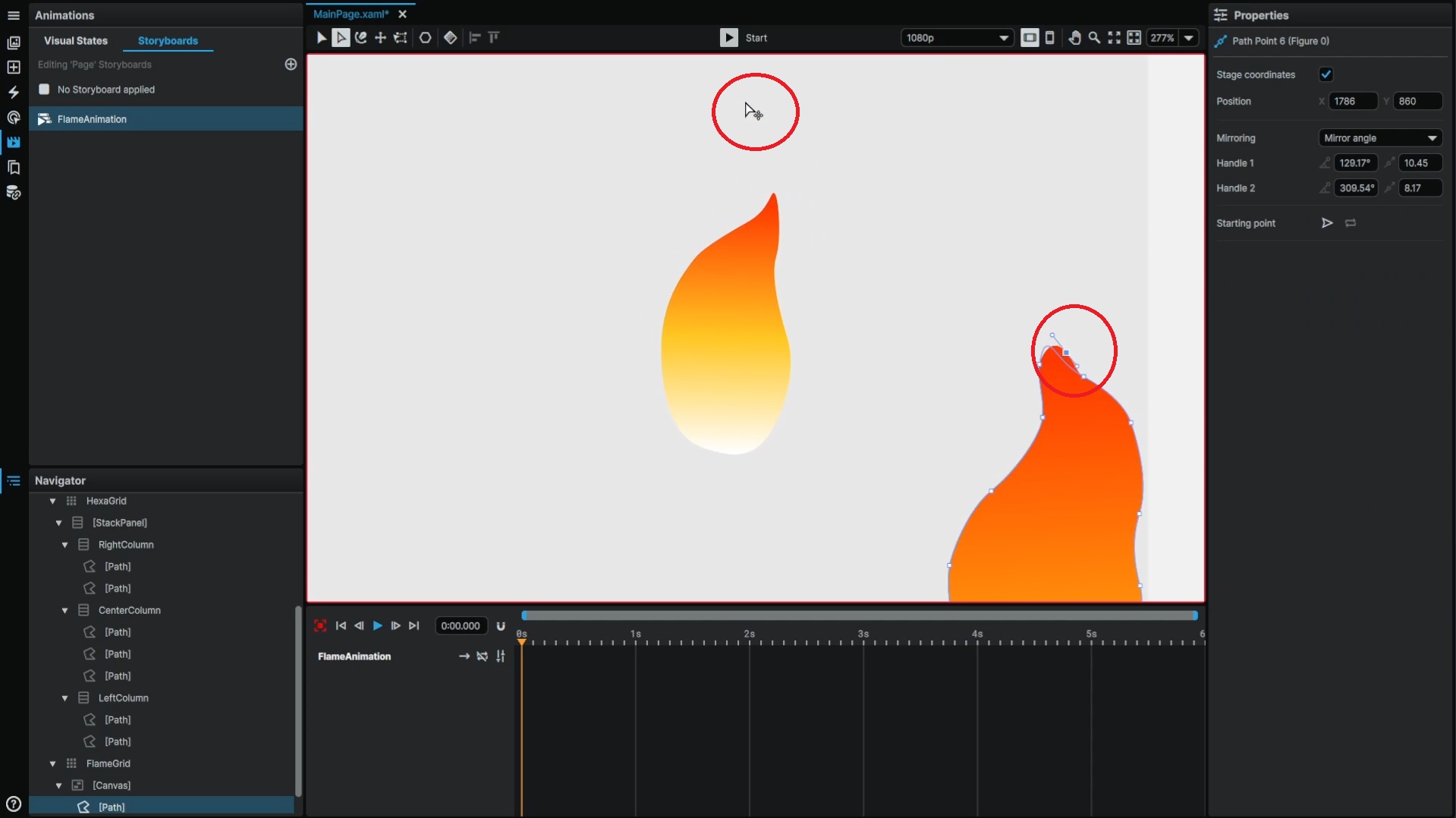

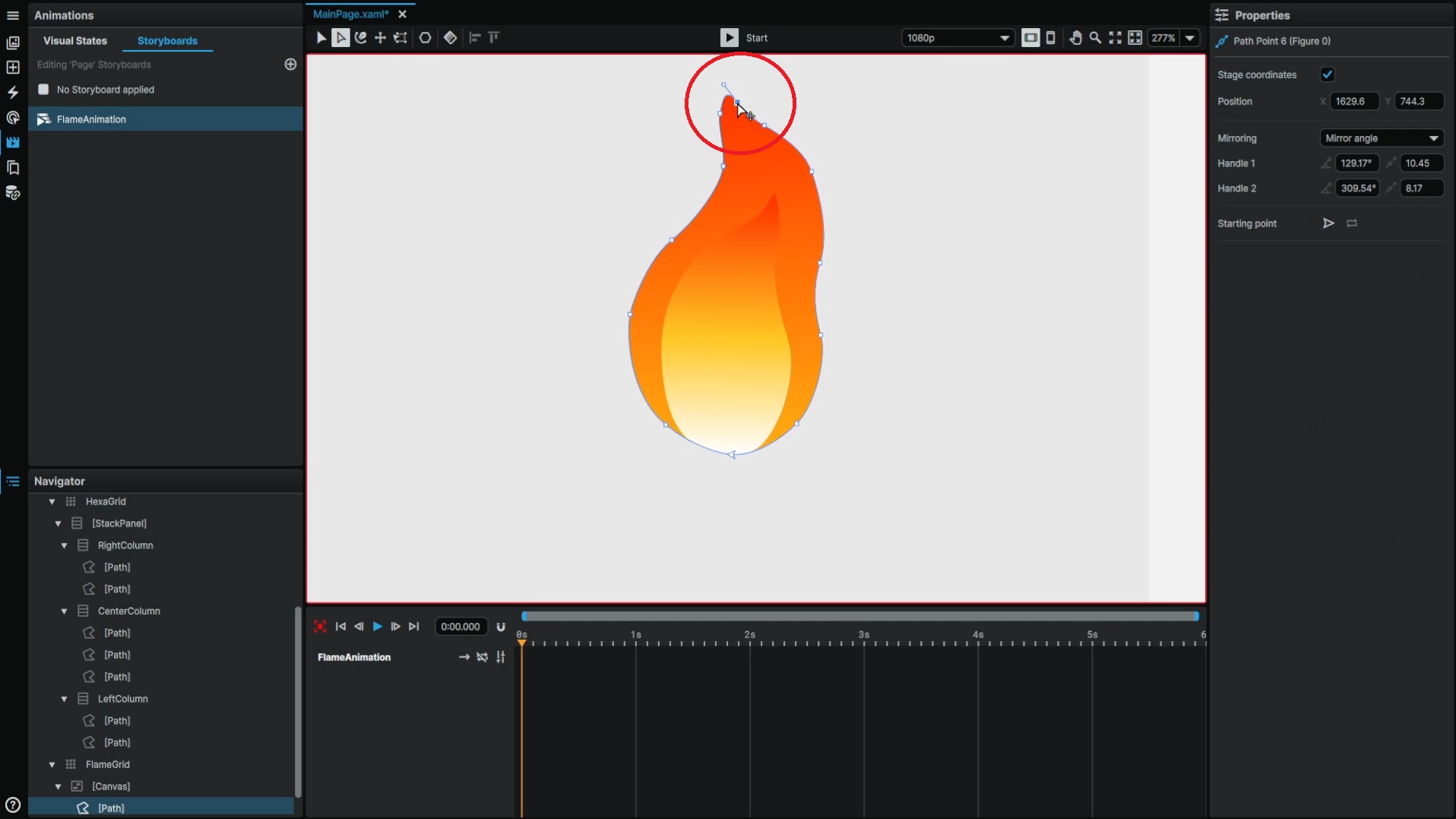

See attached images for an example of this occuring during the Path Test.

Steps To Reproduce

Repro Steps:

1) Download the attached PathTest.zip
2) Navigate to the Animation Panel (Ctrl+5), and navigate to the Storyboards Tab.
3) Create a new Storyboard using the (+) icon from the top-right of the Storyboards Tab.

4) On the Stage, zoom in to the Flame, and switch to the Path Selection Tool (A).
5) Select either the inner or the outer Flame with the Path Selection Tool, and click it to make its Path Points appear.
6) Ensuring that the Storyboard is set to 'Recording', using the Path Selection Tool, click-and-drag any of its Path Points to a position of your choice to key it on the Timeline.

Observe how the flame dissappears from view and transposes in its entirety to a completely different position on-Stage.

Expected Results: Path Points can be moved independently to any position without disrupting the wider shape (especially within a Canvas Panel)
