Summary0004017: Difference in DirectionalNavigation when key event is handled between WPF and Noesis
Description

I've implemented a simple behavior that prevents keyboard events from bubbling outside the associated object.

When using the behavior ( attached screenshot ), i noticed that directional navigation stops working in some circumstances

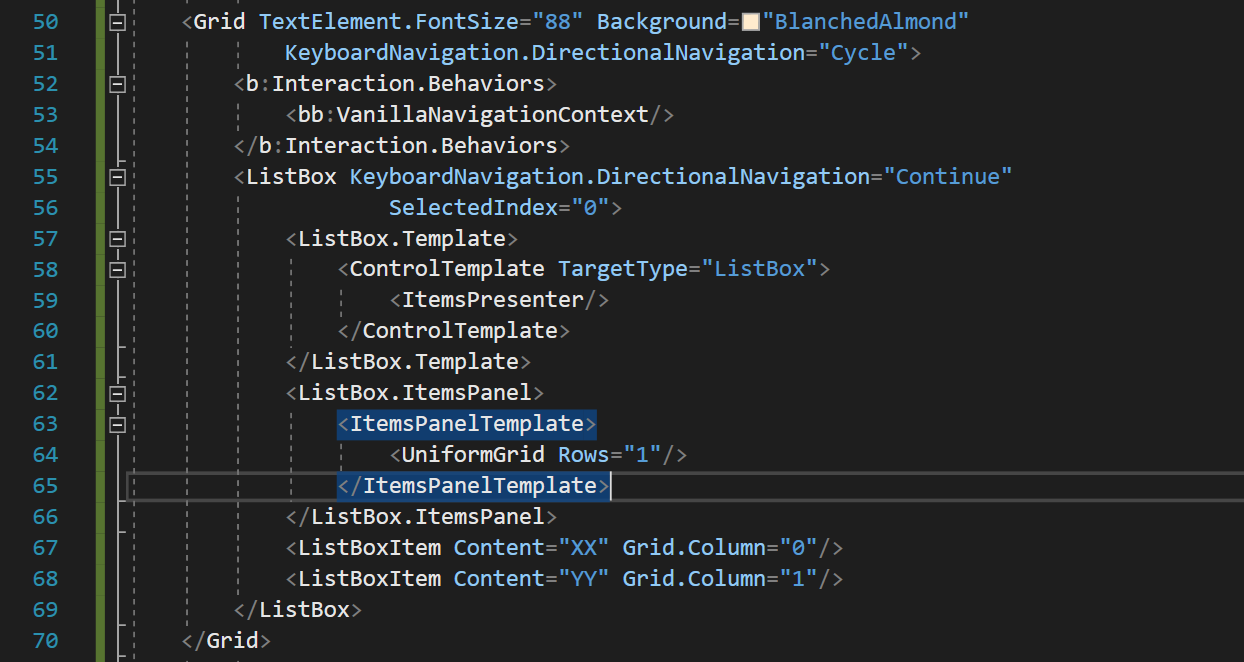

I've been able to isolate the issue on a simple xaml ( attached screenshot )

Directional navigation stops working when keyboard events are handled, but only for certain kinds of ItemsPanel.
Known Items panel not working: Grid, UniformGrid
Some others work fine: StackPanel, VirtualizingStackPanel

Steps To Reproduce

Replicate the xaml provided
VanillaNavigationContext is a behavior that just prevents KeyDown and KeyUp events, from bubbling out of the associated object

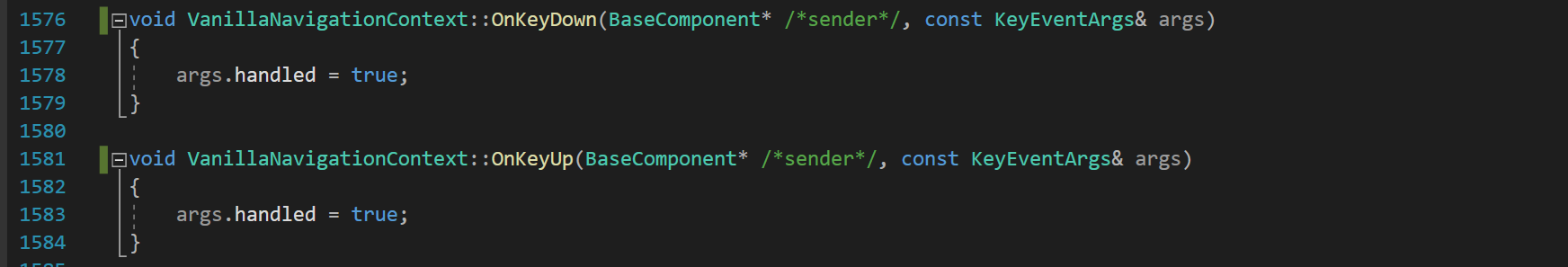

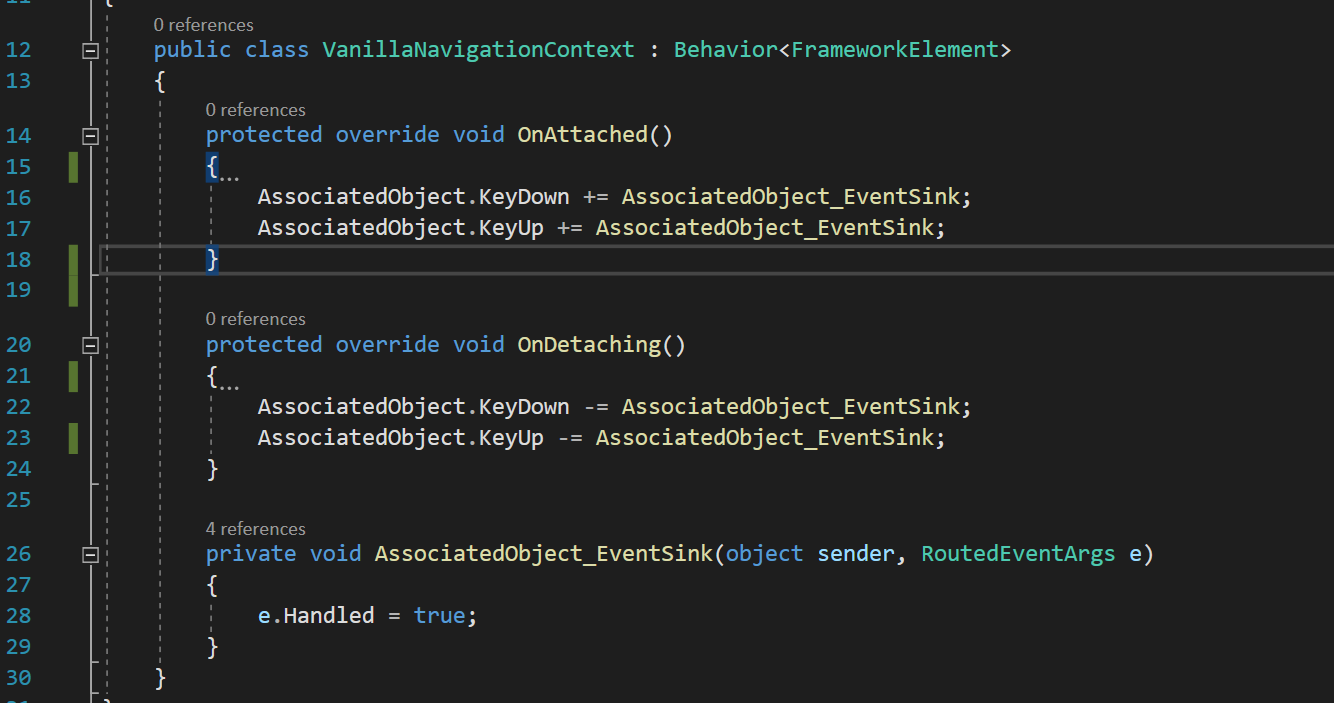

Attached C# and C++ References

1.- Launch the samples
2.- Click on the first element
3.- Try to use directional navigation

Expected (WPF): Directional Navigation inside the associated object works fine
Actual(Noesis): Mixed results depending on ItemsPanel

  • StackPanel [Works]
  • VirtualizingStackPanel. [Works]
  • Grid - [Not working]
  • UniformGrid - [Not working]

I have not tested all the possible panels, only these 4

Attached Files
PlatformAny
