View Issue Details

IDProjectCategoryView StatusLast Update
0004273NoesisGUIStudiopublic2025-06-30 17:57
Reporterdstewart Assigned Tosfernandez
PrioritynormalSeveritymajor
Status resolvedResolutionfixed
Product VersionStudio_Beta
Target VersionStudio_BetaFixed in VersionStudio_Beta
Summary0004273: Layout Transform Tab Selection Is Broken
Description

Currently, when expanding the Transform Properties Expander the Layout Transform Section:

  • Displays a Layout Translate X and a Layout Translate Y Property pair, but without displaying an active "Translate" Tab.
  • Once any other Layout Transform Tab is selected, the Layout Translate fields becoming permanently inaccessible.

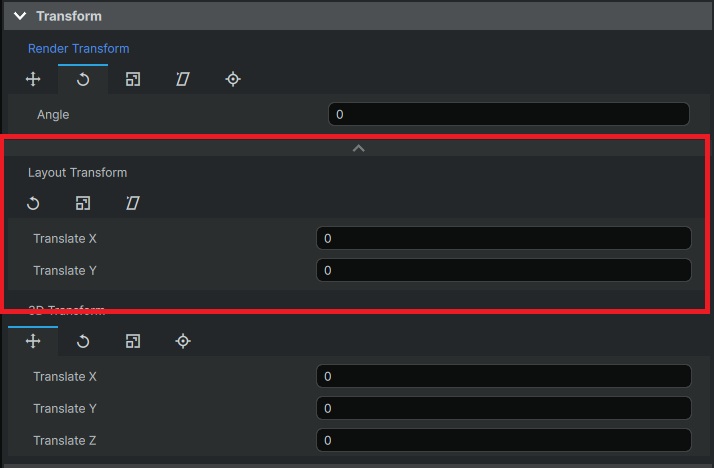

See attached image.


Repro Steps:

1) Create a new Project featuring a MainPage.xaml
2) Select the RootGrid included within the MainPage.xaml, and navigate to its Properties Panel.
3) Select the expander of the Transform Properties section. This will reveal the Layout Transform and 3D Transform sections.

Observe how unlike the Render Transform and 3D Transform sections, the Layout Transform section has no currently-active Tab.

4) Select the tab for either the Layout Transform's Rotate, Scale, or Skew.
Observe how the Layout Transform's TranslateX and TranslateY Properties are now permanently inaccessible.

Expected Results:
If Layout Transforms contain a 'Translate' tab and associated functionality, this tab should be shown in the Layout Transform tabs at all times.
If Layout Transforms don't contain a 'Translate' function, TranslateX and TranslateY shouldn't be shown as the default fields under the Layout Transform section.

Attached Files
PlatformAny

Activities

Issue History

Date Modified Username Field Change
2025-06-30 16:37 dstewart New Issue
2025-06-30 16:37 dstewart File Added: LayoutTransform.jpg
2025-06-30 17:57 sfernandez Assigned To => sfernandez
2025-06-30 17:57 sfernandez Status new => assigned
2025-06-30 17:57 sfernandez Target Version => Studio_Beta
2025-06-30 17:57 sfernandez Status assigned => resolved
2025-06-30 17:57 sfernandez Resolution open => fixed
2025-06-30 17:57 sfernandez Fixed in Version => Studio_Beta
