View Issue Details

IDProjectCategoryView StatusLast Update
0004825NoesisGUIStudiopublic2026-02-26 10:47
Reporterdstewart Assigned Tosfernandez
PrioritynormalSeveritytrivial
Status assignedResolutionopen
Product VersionStudio_Beta
Target VersionStudio_Beta
Summary0004825: Binding Tabs Don't Fit Standard Panel Widths
Description

Currently, under two 'default' circumstances, the tabs atop the Binding Menu that allow the user to select between 'Name', 'Relative', 'Source', and Context don't fit in their allotted horizontal space.

This occurs in at least the following two places, with potentially more:

1) The Colour Brush Panel, when binding a Color Property.
2) The Properties Panel, when the application window is at at standard 1920x1080 resolution.

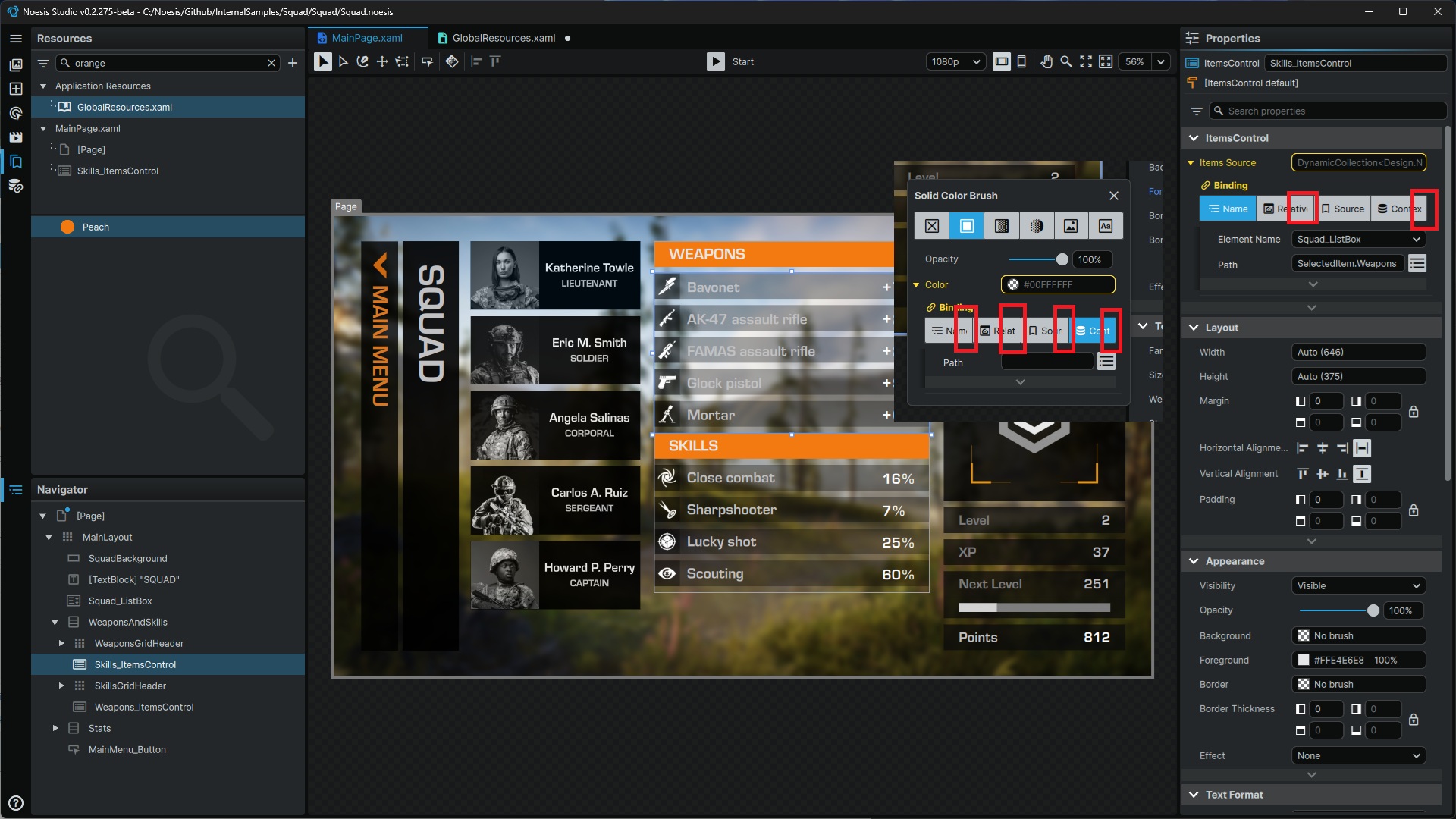

See attached image.

I would potentially suggest that we configure these tabs so that if the full length of each Tab name cannot comfortably fit in the space allocated for all tabs, that their text collapses to produce a centred 'icon-only' version of the tab, with the possibility to reveal the tab's name in a tooltip on Tab hover.

Either that, or we increase the default width of both the Brush and Properties Panel to be able to support our Tab names, but I think the above solution is far more universal and allows for handling of all cases a bit better.

Attached Files
PlatformAny

Activities

Issue History

Date Modified Username Field Change
2026-02-20 16:41 dstewart New Issue
2026-02-20 16:41 dstewart File Added: BindingTabsNoFit.jpg
2026-02-20 16:41 dstewart Summary Binding Tabs Don't Fit Panel Widths => Binding Tabs Don't Fit Standard Panel Widths
2026-02-20 16:42 dstewart Description Updated
2026-02-26 10:47 sfernandez Assigned To => sfernandez
2026-02-26 10:47 sfernandez Status new => assigned
2026-02-26 10:47 sfernandez Target Version => Studio_Beta
