View Issue Details

IDProjectCategoryView StatusLast Update
0005105NoesisGUIStudiopublic2026-07-06 10:20
Reporterdstewart Assigned ToAntonino
PrioritynormalSeverityminor
Status resolvedResolutionfixed
Product VersionStudio_Beta
Target Version4.0Fixed in Version4.0
Summary0005105: Hovering Over Timeline Properties Renders Chevron Tooltips
Description

Currently, hover over any Element in the Navigator or the Timeline, provides a ToolTip containing information about the Element Type, as well as the applied Style.

Hover, when hovering over an Element's Property in the Timeline, the ToolTip only produces a '<>' entry.

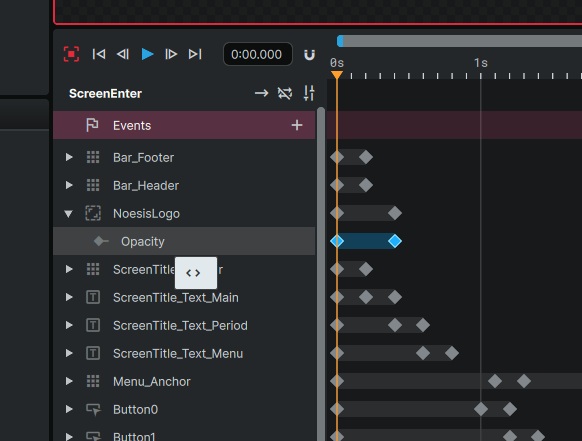

See attached image.


Repro Steps:

1) Create a Studio Project featuring a MainPage.xaml

2) Navigate to the Animation/Storyboards Tab, and create a new Storyboard animation.
This will open the Storyboard in 'record' mode.

3) On the Timeline, move the playhead forward, and make any change to any Property of any Element on the Page.
This will key a Keyframe on the Timeline at the position of the Playhead.

4) In the Timeline, select the Element that they Keyframe was added to, and click on its arrow expander to the right of the Element's name. If required, continue expanding any children further, until there are no more sections to expand.

5) In the Timeline, hover over the name of the Property that features the Keyframe.

Observe how a ToolTip appears, displaying '<>'.

Expected Results: There is likely no need for these Property names to have a Tooltip at all. However, this could be reconsidered if we can think of anything useful to display in this case.

Attached Files
PlatformAny

Activities

Antonino

Antonino

2026-07-06 10:20

developer   ~0012395

Fixed on r17461

Issue History

Date Modified Username Field Change
2026-06-30 16:44 dstewart New Issue
2026-06-30 16:44 dstewart File Added: TimelineTooltips.jpg
2026-07-01 18:34 jsantos Target Version => 4.0
2026-07-01 18:34 jsantos Assigned To => sfernandez
2026-07-01 18:34 jsantos Status new => assigned
2026-07-06 10:18 Antonino Assigned To sfernandez => Antonino
2026-07-06 10:20 Antonino Status assigned => resolved
2026-07-06 10:20 Antonino Resolution open => fixed
2026-07-06 10:20 Antonino Fixed in Version => 4.0
2026-07-06 10:20 Antonino Note Added: 0012395
