View Issue Details

IDProjectCategoryView StatusLast Update
0005291NoesisGUIStudiopublic2026-10-27 17:03
Reporterdstewart Assigned Tosfernandez
PrioritynormalSeveritytweak
Status resolvedResolutionfixed
Product Version4.0
Target Version4.0.2Fixed in Version4.0.2
Summary0005291: Improved Property Ordering for TranslateZoomRotateBehavior Properties
Description

Currently, the TranslateZoomRotateBehavior offers a selection of Behavior Properties.
However, the grouping of the Properties in its Properties Panel lacks cohesion and grouping.

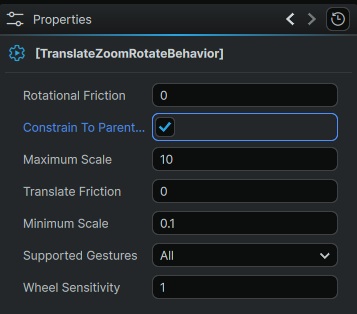

Currently, the Properties are listed in the order of:

Rotational Friction
Constrain to Parent Element Bounds
Maximum Scale
Translate Friction
Minimum Scale
Supported Gestures
Wheel Sensitivity

A potential re-organisation, could:

a) Serve the Properties in order of most-general, to most specific.
b) Group related Properties together.

For example, as a proposal:

Supported Gestures (without this one, many of the below won't work in the most classic use cases)
Wheel Sensitivity (Applies to all options below, but dependent on Supported Gestures directly above it)
Minimum Scale (Grouping with Max Scale - and putting Scale at the top since its one of the default behaviors)
Maximum Scale (Grouping with Min Scale)
Translate Friction (Grouped with Rotational Friction)
Rotational Friction (Grouped with Translate Friction)
Constrain to Parent Element Bounds (Modifier feature to all settings above)

Image Attached.


Repro Steps:

Repro Steps:

1) Create a Studio Project featuring a MainPage.xaml

2) Select the root Grid, navigate to the Interactivity Panel, and apply a TranslateZoomRotateBehavior Behavior to it.

5) With the Behavior selected, identify its Behavior Properties in the Behaviors Panel.

Observe how individual Properties are ordered without following grouping of similar Properties.

Attached Files
PlatformAny

Activities

Issue History

Date Modified Username Field Change
2026-10-27 16:26 dstewart New Issue
2026-10-27 16:26 dstewart File Added: TranslateZoomRotateBehaviorPropertyOrdering.jpg
2026-10-27 16:36 jsantos Assigned To => sfernandez
2026-10-27 16:36 jsantos Status new => assigned
2026-10-27 16:36 jsantos Product Version 4.0.3 => 4.0
2026-10-27 16:36 jsantos Target Version => 4.0.2
2026-10-27 17:03 sfernandez Status assigned => resolved
2026-10-27 17:03 sfernandez Resolution open => fixed
2026-10-27 17:03 sfernandez Fixed in Version => 4.0.2
