Language Server

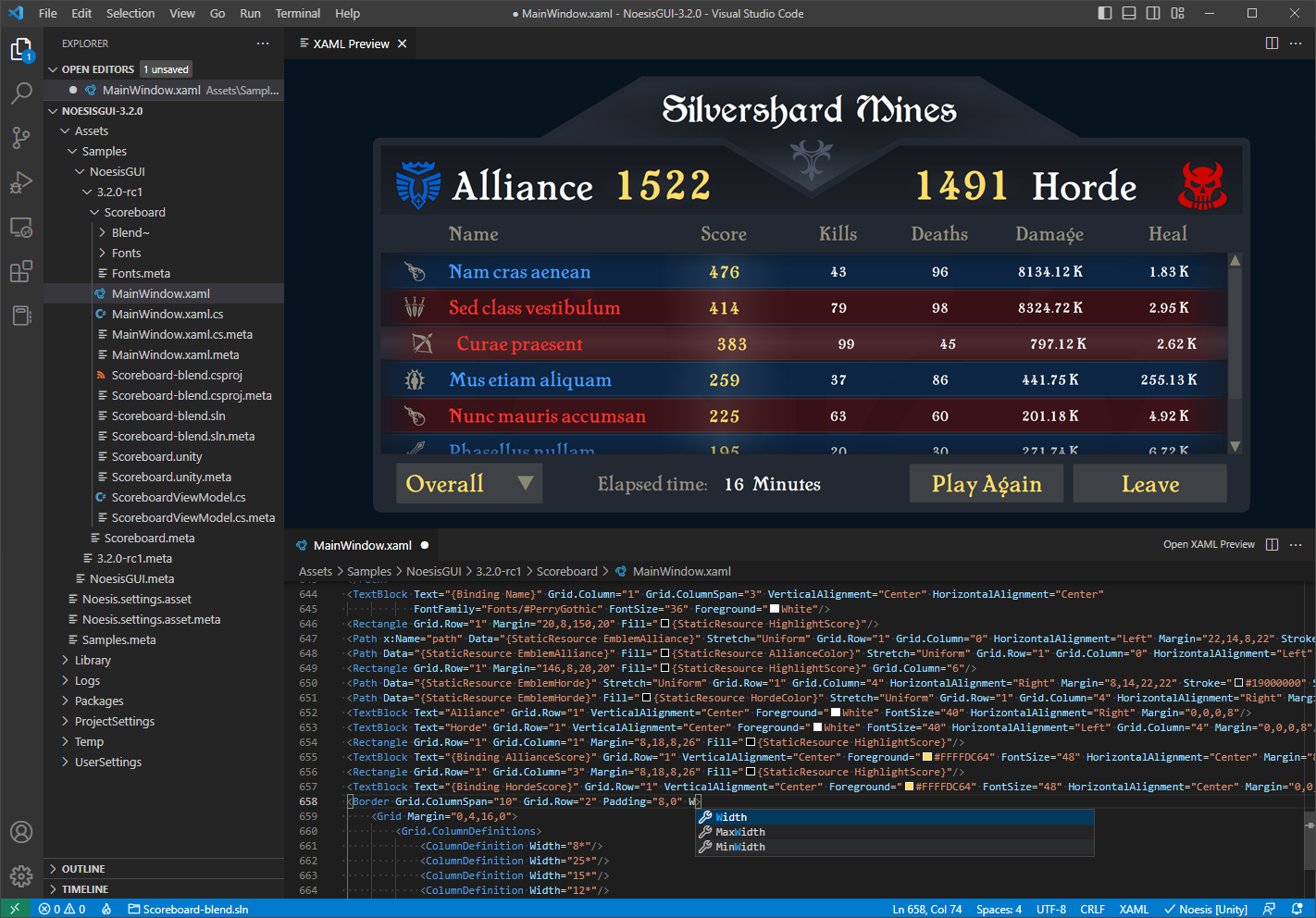

The Noesis Language Server implements the Language Server Protocol for XAML documents. When used with a compatible client, the Language Server provides rich editor features, including completion, error reporting, and render previews.

We offer a Visual Studio Code extension that serves as a client for the Language Server. This client is fully compatible with any Noesis instance, including Unity and Unreal


Our plugin automatically launches the server when using Unity or Unreal editors. If you're working in vanilla C++ or C#, a custom Language Server implementation is required. In cases where no language servers are detected, the Visual Studio Code extension initiates an internal server binary. However, this binary exclusively supports core Noesis types. To incorporate your custom types, you'll need to compile a custom Language Server with the required type definitions.

Application Framework

The Application Framework comes equipped with a custom Language Server, which is initially deactivated. To enable it, utilize the '--lang_server' command line. For a seamless experience with the Language Server, we suggest utilizing the '--root projectpath' command line. This switch disables the embedded file providers and enables direct access to the filesystem, supporting Hot Reload.

Samples.HelloWorld.exe --lang_server --root Packages\Samples\HelloWorld\Data

Custom Language Server

If the App Framework isn't integrated into your application, running the Language Server is a straightforward process. The initial step involves setting the server's name. It must be completed before initializing the server. The name is shown in the Visual Studio Code status bar.

C++
LangServer::SetName("LostGhost");

Following that, it's essential to register the providers responsible for loading files on the server.

C++
LangServer::SetXamlProvider(MakePtr<LocalXamlProvider>());
LangServer::SetTextureProvider(MakePtr<LocalTextureProvider>());
LangServer::SetFontProvider(MakePtr<LocalFontProvider>());

Optionally, you can register a callback for generating render preview images. If this callback is not provided, XAML Previews will be disabled in VSCode.

C++
LangServer::SetRenderCallback(0, [](void*, UIElement* content, int renderWidth,
    int renderHeight, double renderTime, const char* savePath)
{
    RenderContext* context = RenderContext::Current();
    RenderPreview(context, content, renderWidth, renderHeight, renderTime, savePath);
});

After configuring everything, you can proceed to initialize the Language Server.

C++
LangServer::Init();

The server needs to be ticked per frame to process messages from the client.

C++
LangServer::RunTick();

At shutdown, be sure to close the server for proper cleanup.

C++
LangServer::Shutdown();

VSCode Tools Settings

While your application is running, the extension will connect automatically to your Language Server.

Additionally, you have the option to configure the extension to launch your application when Visual Studio Code opens a XAML document. The extension will manage this process, starting and killing it as needed.

In Visual Studio Code open File > Preferences > Settings > Extensions > NoesisGUI XAML Tools.

Set the path to your Language Server binary in Language Server Path. If you require any command line switches, these can be set in Language Server Args. These changes will take effect immediately.
