User avatar
digimbyte
Topic Author
Posts: 47
Joined: 14 Nov 2017, 21:42

Black Screen Samples and not NoesisGUI

29 Nov 2018, 07:04

Hey, I've managed to get around putting back together my project, but i've come across an issue where I am unable to render NoesisGUI.
in my game scene, none of the elements render on the camera, and when I open a sample scene, I am greeted with a black screen.

this is in the Unity Editor, I don't know if a setting is restricting it from rendering, I am using the Lightweight renderpipeline
I'd be happy to sit down and debug it but I dont know where to start

Tags:

User avatar
sfernandez
Site Admin
Posts: 1912
Joined: 22 Dec 2011, 19:20

Re: Black Screen Samples and not NoesisGUI

29 Nov 2018, 15:32

NoesisGUI Unity plugin doesn't render in the Editor until you click the Play button.
You will see a black screen for the samples because that is the clear color we selected in the Main Camera.
If you click play for any of our samples does it render fine?

User avatar
digimbyte
Topic Author
Posts: 47
Joined: 14 Nov 2017, 21:42

Re: Black Screen Samples and not NoesisGUI

29 Nov 2018, 16:13

that is correct, when I hit play, nothing renders
I created a new Unity 3D project, using the default 3D renderer but Noesis GUI doesn't render
this is the scoreboard example

User avatar
sfernandez
Site Admin
Posts: 1912
Joined: 22 Dec 2011, 19:20

Re: Black Screen Samples and not NoesisGUI

29 Nov 2018, 17:04

Version 2.1 of the unity plugin only works with D3D11 and GL renderers in Windows, which one have you selected?

User avatar
digimbyte
Topic Author
Posts: 47
Joined: 14 Nov 2017, 21:42

Re: Black Screen Samples and not NoesisGUI

29 Nov 2018, 17:30

I have it set to Auto-Graphics for Windows/Mac/Linux
disabling it I see only Direct3D11 enabled but nothing renders still

User avatar
sfernandez
Site Admin
Posts: 1912
Joined: 22 Dec 2011, 19:20

Re: Black Screen Samples and not NoesisGUI

29 Nov 2018, 18:21

Could you make sure Unity Editor is opened in D3D11 mode?

Those settings are probably used only for standalone builds.
Could you also try to build an executable for one of our samples and see if it renders fine then?

User avatar
digimbyte
Topic Author
Posts: 47
Joined: 14 Nov 2017, 21:42

Re: Black Screen Samples and not NoesisGUI

29 Nov 2018, 18:46

Can confirm it is in DX11 mode
and when I compile a sample nothing shows up, I only see the standard skybox showing.
I updated my Nvidia drivers and restarted, still the same
Last edited by digimbyte on 30 Nov 2018, 03:21, edited 1 time in total.

User avatar
jsantos
Site Admin
Posts: 2904
Joined: 20 Jan 2012, 17:18
Contact:

Re: Black Screen Samples and not NoesisGUI

30 Nov 2018, 00:55

If the same is happening with a 3D sample without noesis then I think we should mark this as solved.

User avatar
digimbyte
Topic Author
Posts: 47
Joined: 14 Nov 2017, 21:42

Re: Black Screen Samples and not NoesisGUI

30 Nov 2018, 03:04

I think you misunderstand what I said.
I forgot to hit play in the sample scenes, they work fine in the clean unity project, but still nothing rendering in my main project during play

User avatar
digimbyte
Topic Author
Posts: 47
Joined: 14 Nov 2017, 21:42

Re: Black Screen Samples and not NoesisGUI

30 Nov 2018, 03:48

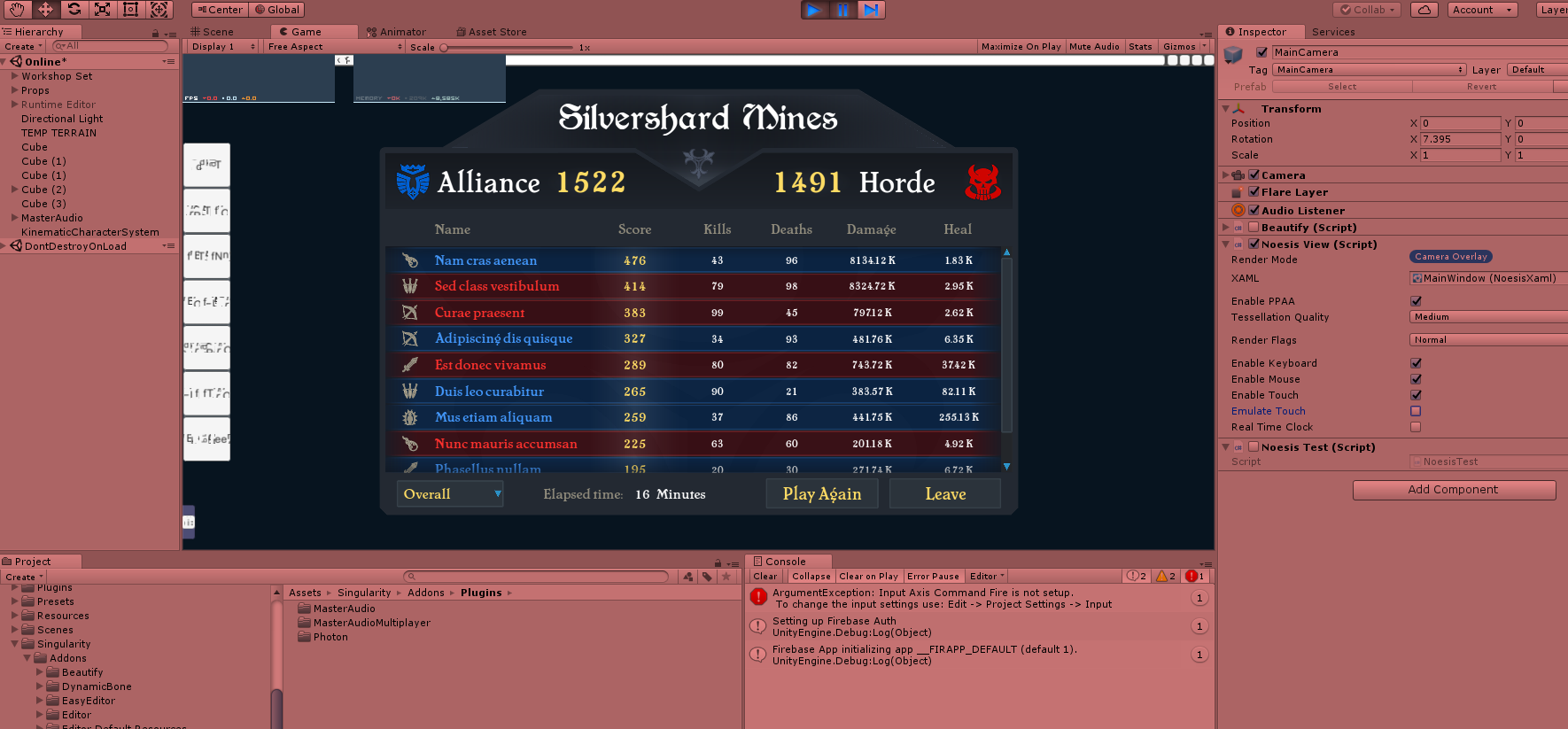

Attached is my scene with some Unity Hud Elements and Noesis GUI rendering the MainWindow from the scoreboard.

Update:
I have merged my project settings over from the blank scene and it works
that being said, I have no idea what setting is required so I'll have to go through, each file and compare them
