Transparent objects in front of WorldSpaceUI

13 Oct 2023, 14:45

Hello,

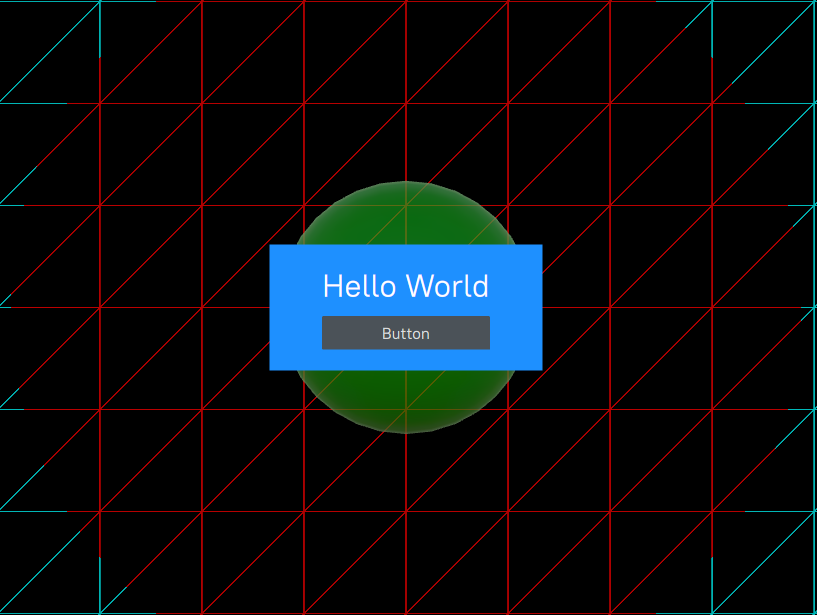

I'm wondering if transparent object in front of WorldSpaceUI is possible? Currently It gets rendered behind UI, like the picture below

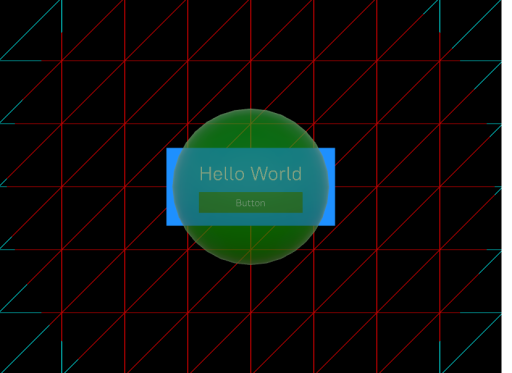

Expected result:

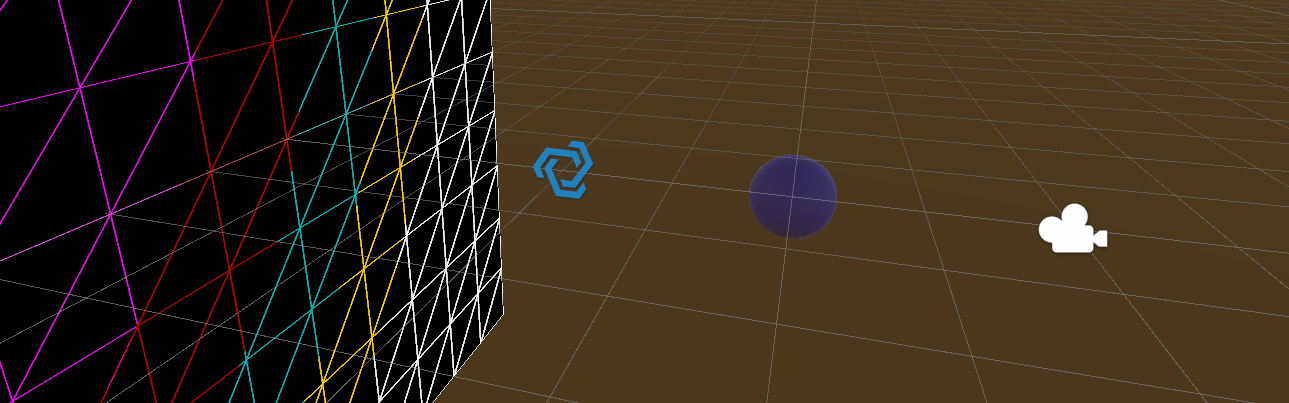

Scene arrangement:
Thanks!

User avatar
jsantos
Site Admin
Posts: 4822
Joined: 20 Jan 2012, 17:18
Contact:

Re: Transparent objects in front of WorldSpaceUI

17 Oct 2023, 18:27

For now, there is not easy solution for this. In URP, out View exposes a property for setting the RenderPassEvent where the UI is rendered. I haven't tried but this should allow you to render the UI before transparent objects.

We have long terms plans to give better flexibility to WorldSpace UI. First implementation came with 3.2 and we are receiving a lot of feedback,
