Summary0001599: Unity Hard Loop/Lock on Visual Tree Update
DescriptionUpdated: -- User Error, Please Ignore

I don't know how to provide the telemetry you need for this one -- your guidance/help on getting you what you need is requested. I have a UI that causes Unity to hard lock (loop?) with high processor utilization. Breakpoints don't fire and I am forced to terminate Unity. A freeze occurs after the UI is initialized and a subsequent change is made. Sometimes the UI disappears, but most of the time it is a lock. The visual tree is as follows:

Grid
   Grid
      Grid
         ViewBox
            Grid (which forces a specific size based on user's preferred UI 'size')
               Grid
                  Grid
                     Grid
                        HeaderedContentControl
                           Grid
                              StackPanel
                                 ScrollViewer
                                    WrapPanel
                                       UserControl w/ LayoutTransform & ScaleTransform
                                          Grid
                                             Image 1
                                             Image 2
                                             Text 1
                                             StackPanel
                                                Image 1
                                                Image N
                                             Grid (Focused 9-Slice Grid w/ Image)
                                             Grid (Unfocused 9-Slice Grid w/ Image)
                                             Grid (Over 9-Slice Grid w/ Image)
                                             Grid (Down 9-Slice Grid w/ Image)

There are 75+ UserControl instances in that wrap panel. I found that if the focused grid had negative margin (so that it extends outside of its parent) I get a hard lock every time the scrollviewer hits 0.

Clearing the wrap panel can also cause a hard lock. This could be Unity, it could be me. I'm not aware of anything I am doing to cause a layout cycle, but hey, I've done incorrect things before.

What kind of information can I provide to help us diagnose if this is a Noesis thing?

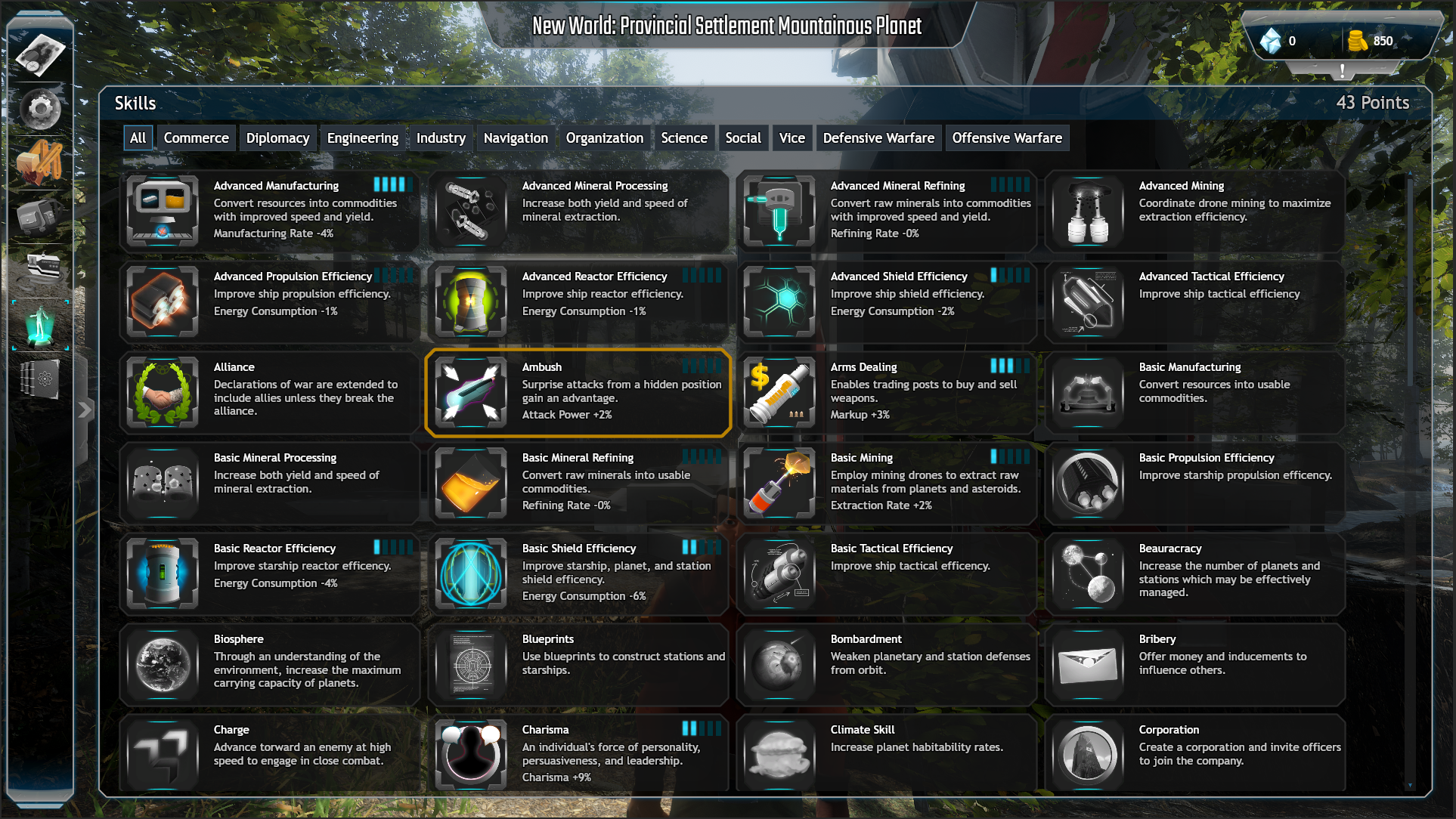

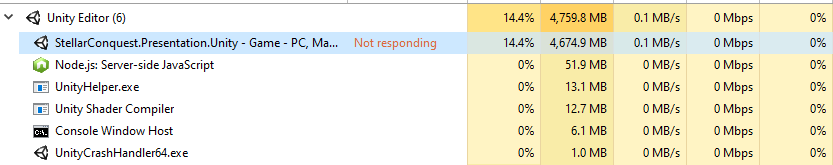

Encl. screenshots of UI and unresponsive process.

TagsNo tags attached.
PlatformAny

Relationships

related to 0001600 resolvedsfernandez Layout freeze

Activities

stonstad

stonstad

2019-12-12 14:09

reporter

stonstad

stonstad

2019-12-12 14:23

reporter   ~0006034

I found the code that causes the hard lock. Commenting it out resolves the behavior. The UserControl cited above has this logic:

        Button.MouseEnter += (sender2, e2) =>
            {
                if (Button.IsFocused)
                    _FocusedLayer.Visibility = Visibility.Visible;
                else
                    _OverLayer.Visibility = Visibility.Visible;
            };

Changing what is visible inside the button is most likely firing a layout event which in turn is firing a MouseEnter/MouseLeave event, and it loops indefinitely. I am going to try to resolve this with different logic. If you think this is actually a bug to investigate let me know, otherwise I'll reply back once I have my offending logic eliminated.
stonstad

stonstad

2019-12-12 14:33

reporter   ~0006035

Setting IsHitTestVisible to false for UIElements which change on MouseOver resolves the behavior. Seems very much like user error on my part. Please do feel free to close this unless you feel further investigation is warranted.
sfernandez

sfernandez

2019-12-16 12:46

manager   ~0006036

I think this is in fact a bug in Noesis because we shouldn't freeze in an infinite loop no matter what layout and triggers you decide to use.
We should be able to detect those scenarios and break the layout loop.
