Target Version3.0
Summary0001736: Crash when calling UpdateView
Description

Noesis occasionally crashed inside UpdateView.
It happens when we switches tabs or buttons quickly. Currently we don't have small environment that can reproduces the problem.

Here is the callstack:

Noesis.dll!Noesis::UIElement::Measure(const Noesis::Size & availableSize) Line 536 C++
[Inline Frame] Noesis.dll!Noesis::ViewLayout::ProcessMeasures() Line 526 C++
Noesis.dll!Noesis::ViewLayout::ProcessLayout() Line 380 C++
[Inline Frame] Noesis.dll!Noesis::ViewLayout::Layout(bool) Line 255 C++
[Inline Frame] Noesis.dll!Noesis::View::UpdateContent() Line 730 C++
[Inline Frame] Noesis.dll!Noesis::View::InternalUpdate(double) Line 714 C++
Noesis.dll!Noesis::View::Update(double timeInSeconds) Line 639 C++
NoesisUtil.dll!NoesisUtil::ZUIImpl::UpdateView() Line 631 C++

I attached the dump file, Noesis.{dll,pdb}, and NoesisUtil.{dll,pdb}. Could you please analyze it and if possible provide a fix ?

NoesisUtil is our integration layer.

Attached Files
Zpal2_rxcpp.dmp (1,228,419 bytes)
Noesis.dll (4,859,392 bytes)
PlatformWindows

Activities

nikobarli

nikobarli

2020-06-24 08:36

reporter   ~0006449

Oops, seems that the PDB files are too large.
nikobarli

nikobarli

2020-06-24 08:44

reporter   ~0006450

Please find the files in my OneDrive here: https://ziokk-my.sharepoint.com/:f:/g/personal/bniko_zio_co_jp/EnREbrAMyN9DjZeUDXL-P2YBiqg8Pxr9G9SRHq0QIMp1Ug?e=Q9BoYY

The link will expire in 2020/8/23.

Thanks
nikobarli

nikobarli

2020-06-24 09:20

reporter   ~0006451

Hhmmhh the OneDrive link seems to have problem as well.
Please use this one if it is not working:

https://drive.google.com/drive/folders/1w4Q1ot0P3X_0cF94OBWznR2HNj5wZMxk?usp=sharing
nikobarli

nikobarli

2020-06-24 09:29

reporter   ~0006452

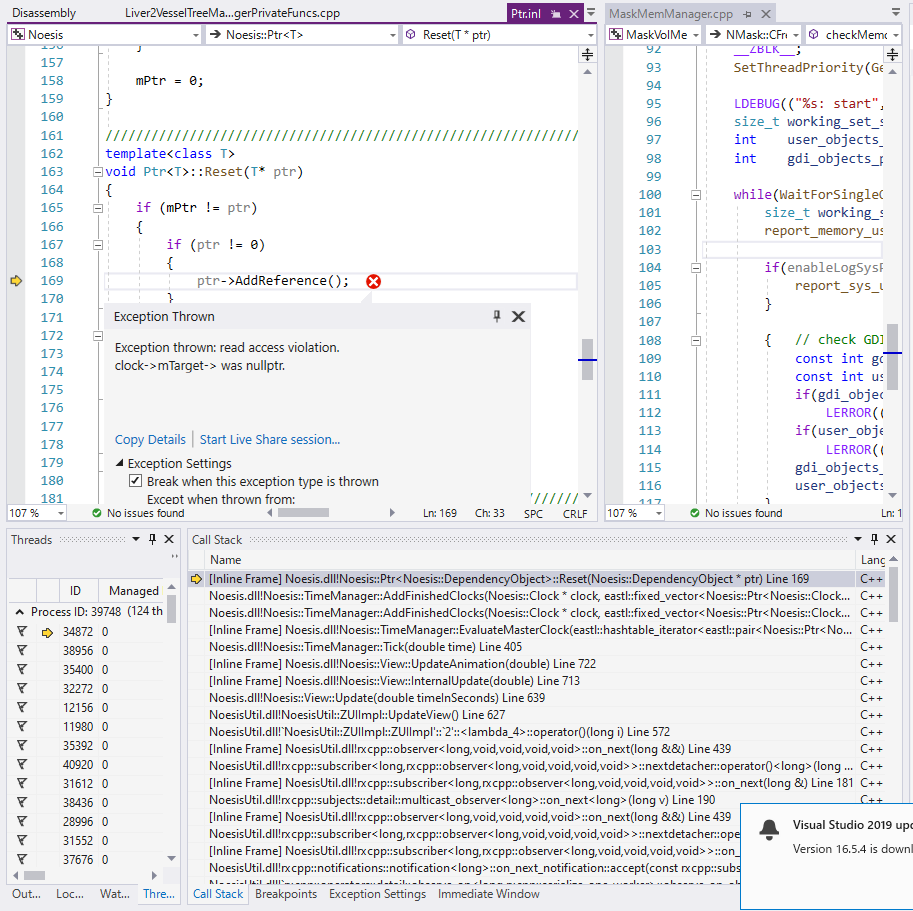

BTW, this is another crash inside UpdateView that we had. The callstack is different from above.
It also happens if we operate on NoesisGUI quickly. In this case, switching tabs quickly.

image (16).png (155,612 bytes)
image (16).png (155,612 bytes)
sfernandez

sfernandez

2020-06-29 19:03

manager   ~0006471

Thanks for the info, we'll take a look as soon as possible.
Any chance we can get the TabControl and tabs definition that leads to this crash?
sfernandez

sfernandez

2020-06-29 19:09

manager   ~0006472

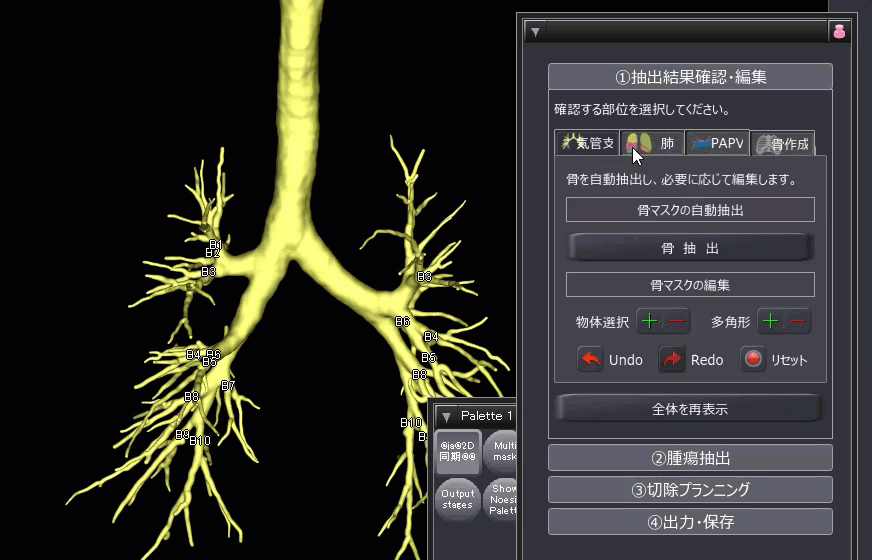

From the gif video I see there are panels also changing on the background, not only the TabControl contents. If you hide/disable those background panels so only the TabControl changes, does the crash still occurs? I'm just trying to figure out if the problem is related to the TabControl or it could be something more complex.
nikobarli

nikobarli

2020-06-30 06:50

reporter   ~0006476

The tabs are actually old code that we no longer used. The background panels are ordinary MFC windows that reacts to the Noesis GUI.
We no longer have the code now and we have avoided using tabs (partly due to adjusting to UI design that requires no tab implementation), and use buttons for most of the scenarios.
But we still have the similar exception when calling view->Update().

From the dump core, do you have any idea what may cause this issue ?
sfernandez

sfernandez

2020-06-30 12:24

manager   ~0006477

From the dump I see that is crashing when calling or returning from MeasureCore, so I guess the UI element is being destroyed while measuring.
It could help if you can add some logs in the UIElement::Measure() function to determine which control is, something like:

    if (!IsMeasureValid() || availableSize != mPreviousMeasureConstraint)

{

NS_LOG_INFO("[Measure] %s (%s): (%gx%g)", GetClassType()->GetName(),

GetValue<NsString>(FrameworkElement::NameProperty).c_str(),

availableSize.width, availableSize.height);


    // We want always to arrange after measure
    InvalidateArrange();

   ...</pre>


If you make it crash again there, please attach the logs.


After that I would like to test something, in ViewLayout.cpp, in the ProcessMeasures() function use a Ptr to store the current element during its measure:


void ViewLayout::ProcessMeasures()

{

NS_PROFILE_CPU("Gui/Layout/Measure");


Ptr<UIElement> current(*mMeasures.begin());

NS_ASSERT(!current->IsMeasureValid());

mInsideLayout = true;
current->Measure(current->GetMeasureConstraint());
mInsideLayout = false;


}


If with that change you don't get more crashes there, it would mean the object is definitely being destroyed inside its measure.
nikobarli

nikobarli

2020-07-01 05:15

reporter   ~0006481

Thanks. We will try to patch our code and see if it happens again.

Meanwhile, we found a code that reproduce the crash stack trace in ClicksAndCrash-2.gif (related to animation?) .
Please find the patch below. Just click anywhere inside the window to crash the program.

FYI, we are using Noesis 2.2.6 x64 version.

NoesisGUI-win-x86_64sln_HelloWorld.patch (22,639 bytes)

Index: Src/Packages/Samples/HelloWorld/Data/MainWindow.xaml
===================================================================
--- Src/Packages/Samples/HelloWorld/Data/MainWindow.xaml	(revision 145041)
+++ Src/Packages/Samples/HelloWorld/Data/MainWindow.xaml	(working copy)
@@ -8,208 +8,55 @@
         Background="#FF124C7A"
         Title="NoesisGUI - Hello, World!">

-    <Window.Resources>
-        <Storyboard x:Key="Intro">
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(FrameworkElement.Width)" Storyboard.TargetName="Word">
-                <EasingDoubleKeyFrame KeyTime="0" Value="0"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1" Value="276.8">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <CubicEase EasingMode="EaseInOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="GUI">
-                <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:0.5" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:0.8" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:1.2" Value="#FF2AA6E2"/>
-            </ColorAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.Y)" Storyboard.TargetName="Logo">
-                <EasingDoubleKeyFrame KeyTime="0" Value="-4"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0"/>
-            </DoubleAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[2].(RotateTransform.Angle)" Storyboard.TargetName="Logo">
-                <EasingDoubleKeyFrame KeyTime="0" Value="-180"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="0">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <ExponentialEase EasingMode="EaseInOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleX)" Storyboard.TargetName="Logo">
-                <EasingDoubleKeyFrame KeyTime="0" Value="0.5"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <BackEase EasingMode="EaseOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleY)" Storyboard.TargetName="Logo">
-                <EasingDoubleKeyFrame KeyTime="0" Value="0.5"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <BackEase EasingMode="EaseOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="Line1">
-                <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:0.3" Value="#FF2AA6E2"/>
-            </ColorAnimationUsingKeyFrames>
-            <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="Line2">
-                <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:0.1" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:0.4" Value="#FF2AA6E2"/>
-            </ColorAnimationUsingKeyFrames>
-            <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(Shape.Fill).(SolidColorBrush.Color)" Storyboard.TargetName="Line3">
-                <EasingColorKeyFrame KeyTime="0" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:0.2" Value="#002AA6E2"/>
-                <EasingColorKeyFrame KeyTime="0:0:0.5" Value="#FF2AA6E2"/>
-            </ColorAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleX)" Storyboard.TargetName="GUI">
-                <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:0.8" Value="1.1"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="1">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <ExponentialEase EasingMode="EaseInOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[0].(ScaleTransform.ScaleY)" Storyboard.TargetName="GUI">
-                <EasingDoubleKeyFrame KeyTime="0:0:0.5" Value="1"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:0.8" Value="1.1"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="1">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <ExponentialEase EasingMode="EaseInOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(TextElement.Foreground).(SolidColorBrush.Color)" Storyboard.TargetName="Hello">
-                <EasingColorKeyFrame KeyTime="0" Value="Transparent"/>
-                <EasingColorKeyFrame KeyTime="0:0:1" Value="Transparent"/>
-                <EasingColorKeyFrame KeyTime="0:0:1.3" Value="White">
-                    <EasingColorKeyFrame.EasingFunction>
-                        <SineEase EasingMode="EaseInOut"/>
-                    </EasingColorKeyFrame.EasingFunction>
-                </EasingColorKeyFrame>
-            </ColorAnimationUsingKeyFrames>
-            <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(TextElement.Foreground).(SolidColorBrush.Color)" Storyboard.TargetName="World">
-                <EasingColorKeyFrame KeyTime="0" Value="Transparent"/>
-                <EasingColorKeyFrame KeyTime="0:0:1.2" Value="Transparent"/>
-                <EasingColorKeyFrame KeyTime="0:0:1.5" Value="White">
-                    <EasingColorKeyFrame.EasingFunction>
-                        <SineEase EasingMode="EaseInOut"/>
-                    </EasingColorKeyFrame.EasingFunction>
-                </EasingColorKeyFrame>
-            </ColorAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="Hello">
-                <EasingDoubleKeyFrame KeyTime="0" Value="-40"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1" Value="-40"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.3" Value="0">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <SineEase EasingMode="EaseInOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[3].(TranslateTransform.X)" Storyboard.TargetName="World">
-                <EasingDoubleKeyFrame KeyTime="0" Value="-40"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="-40"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.5" Value="0">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <SineEase EasingMode="EaseInOut"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[1].(SkewTransform.AngleX)" Storyboard.TargetName="Hello">
-                <EasingDoubleKeyFrame KeyTime="0" Value="0"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1" Value="20"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.3" Value="0">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <BackEase EasingMode="EaseIn"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-            <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(UIElement.RenderTransform).(TransformGroup.Children)[1].(SkewTransform.AngleX)" Storyboard.TargetName="World">
-                <EasingDoubleKeyFrame KeyTime="0" Value="0"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.2" Value="20"/>
-                <EasingDoubleKeyFrame KeyTime="0:0:1.5" Value="0">
-                    <EasingDoubleKeyFrame.EasingFunction>
-                        <BackEase EasingMode="EaseIn"/>
-                    </EasingDoubleKeyFrame.EasingFunction>
-                </EasingDoubleKeyFrame>
-            </DoubleAnimationUsingKeyFrames>
-        </Storyboard>
-    </Window.Resources>
-    <Window.Triggers>
-        <EventTrigger RoutedEvent="FrameworkElement.Loaded">
-            <BeginStoryboard Storyboard="{StaticResource Intro}"/>
-        </EventTrigger>
-    </Window.Triggers>
-    <Grid>
-        <Viewbox>
-            <Grid Width="325.8" Margin="24">
-                <Grid HorizontalAlignment="Center">
-                    <Grid.ColumnDefinitions>
-                        <ColumnDefinition Width="Auto"/>
-                        <ColumnDefinition Width="Auto"/>
-                    </Grid.ColumnDefinitions>
-                    <Grid.RowDefinitions>
-                        <RowDefinition/>
-                        <RowDefinition/>
-                    </Grid.RowDefinitions>
-                    <Grid x:Name="Logo" Grid.Column="0" RenderTransformOrigin="0.5,0.5" Width="49">
-                        <Grid.RenderTransform>
-                            <TransformGroup>
-                                <ScaleTransform/>
-                                <SkewTransform/>
-                                <RotateTransform/>
-                                <TranslateTransform/>
-                            </TransformGroup>
-                        </Grid.RenderTransform>
-                        <Path x:Name="Line1" Data="M6.1,16 L13.7,5.7 32,8 35.7,16.7 39.4,11.9 35.5,3 11.2,0 0,15.2 3.8,24.1 9.5,24.8 6.1,16 z" Fill="#FF2AA6E2" VerticalAlignment="Center" Height="24.8" Margin="0,5.5,9.6,16.5"/>
-                        <Path x:Name="Line2" Data="M15.5,6 L20.6,17.8 9.5,32.6 0,31.4 2.4,37 12.1,38.1 26.8,18.5 19.2,1.2 9.7,0 6.2,4.6 15.5,6.1 z" Fill="#FF2AA6E2" VerticalAlignment="Center" RenderTransformOrigin="0.5,0.5" Height="38.1" Margin="22.2,0,0,8.7"/>
-                        <Path x:Name="Line3" Data="M26,26.8 L13.3,25.4 6.1,8.4 6,8.4 11.8,0.8 5.7,0 0,7.8 9.5,30.3 28.4,32.5 34.1,24.8 31.9,19.4 z" Fill="#FF2AA6E2" VerticalAlignment="Center" RenderTransformOrigin="0.5,0.5" Height="32.5" Margin="9.3,14.3,5.6,0"/>
-                    </Grid>
-                    <Grid x:Name="Word" Grid.Column="1" Width="276.8">
-                        <StackPanel Orientation="Horizontal" HorizontalAlignment="Right">
-                            <Path x:Name="Noesis" Data="M26.0999999999999,16.9L25.8,16.9C25.2,16.9 24.5999999999999,16.6999999999999 24.0999999999999,16.4 23.5999999999999,16.1 23.0999999999999,15.6999999999999 22.6999999999998,15.1999999999999L12.0999999999999,2.99999999999989C11.1999999999998,1.99999999999989 10.1999999999998,1.19999999999993 9.19999999999982,0.799999999999841 8.19999999999982,0.299999999999841 6.99999999999977,0.0999999999997954 5.49999999999977,0.0999999999997954L-2.27373675443232E-13,0.0999999999997954 -2.27373675443232E-13,21.9999999999998 5.19999999999982,21.9999999999998 5.19999999999982,5.19999999999982 5.49999999999977,5.19999999999982C6.09999999999968,5.19999999999982 6.69999999999982,5.39999999999986 7.19999999999982,5.69999999999982 7.79999999999973,5.99999999999977 8.19999999999982,6.39999999999986 8.59999999999991,6.89999999999986L19,18.9999999999999C19.9000000000001,20.0999999999999 20.9000000000001,20.8999999999999 21.9000000000001,21.3999999999999 23,21.8999999999999 24.2,22.0999999999999 25.8000000000002,22.0999999999999L31.3000000000002,22.0999999999999 31.3000000000002,-1.13686837721616E-13 26.1000000000001,-1.13686837721616E-13 26.0999999999999,16.9z M59.3,0L42.3999999999999,0C36.8999999999999,0,34.0999999999999,2.29999999999995,34.0999999999999,7L34.0999999999999,15C34.0999999999999,19.6,36.8999999999999,22,42.3999999999999,22L59.3,22C64.8,22,67.5999999999999,19.7,67.5999999999999,15L67.5999999999999,7C67.5999999999999,2.39999999999998,64.8,0,59.3,0z M62.2,15C62.2,16.2,61.2,16.9,59.3,16.9L42.3999999999999,16.9C40.4999999999998,16.9,39.4999999999998,16.3,39.4999999999998,15L39.4999999999998,7C39.4999999999998,5.70000000000005,40.4999999999998,5.10000000000002,42.3999999999999,5.10000000000002L59.3,5.10000000000002C61.2,5.10000000000002,62.2,5.70000000000005,62.2,7L62.2,15z M75.7,15.7999999999997L75.7,13.5999999999999 100.9,13.5999999999999 100.9,8.49999999999989 75.7,8.49999999999989 75.7,6.29999999999984C75.7,5.5999999999998,76.1000000000001,5.19999999999982,76.9000000000001,5.19999999999982L101,5.19999999999982 101,-2.27373675443232E-13 76.9000000000001,-2.27373675443232E-13C72.5,-2.27373675443232E-13,70.3000000000002,1.79999999999973,70.3000000000002,5.29999999999973L70.3000000000002,16.4999999999998C70.3000000000002,20.0999999999998,72.5000000000002,21.8999999999998,76.9000000000001,21.8999999999998L101.1,21.8999999999998 101.1,16.7999999999997 76.9000000000001,16.7999999999997C76.1000000000001,16.8999999999998,75.7,16.4999999999998,75.7,15.7999999999997z M128.5,8.39999999999998L110.2,8.39999999999998C109.4,8.39999999999998,108.9,8.10000000000002,108.9,7.60000000000002L108.9,5.89999999999998C108.9,5.39999999999998,109.3,5.10000000000002,110.2,5.10000000000002L134.4,5.10000000000002 134.4,0 110.2,0C105.8,0,103.6,1.79999999999995,103.6,5.29999999999995L103.6,8.79999999999995C103.6,11.9,105.8,13.5,110.2,13.5L128.5,13.5C129.3,13.5,129.7,13.8,129.7,14.3L129.7,16.0999999999999C129.7,16.5999999999999,129.3,16.8999999999999,128.5,16.8999999999999L104.3,16.8999999999999 104.3,21.9999999999999 128.5,21.9999999999999C132.9,21.9999999999999,135.1,20.1999999999999,135.1,16.6999999999999L135.1,13.6999999999999C135.1,10.1999999999999,132.9,8.39999999999998,128.5,8.39999999999998z M137.8,0L143.2,0 143.2,21.9 137.8,21.9z M170.8,8.39999999999998L152.5,8.39999999999998C151.7,8.39999999999998,151.2,8.10000000000002,151.2,7.60000000000002L151.2,5.89999999999998C151.2,5.39999999999998,151.6,5.10000000000002,152.5,5.10000000000002L176.7,5.10000000000002 176.7,0 152.5,0C148.1,0,145.9,1.79999999999995,145.9,5.29999999999995L145.9,8.79999999999995C145.9,11.9,148.1,13.5,152.5,13.5L170.8,13.5C171.6,13.5,172,13.8,172,14.3L172,16.0999999999999C172,16.5999999999999,171.6,16.8999999999999,170.8,16.8999999999999L146.6,16.8999999999999 146.6,21.9999999999999 170.8,21.9999999999999C175.2,21.9999999999999,177.4,20.1999999999999,177.4,16.6999999999999L177.4,13.6999999999999C177.3,10.1999999999999,175.1,8.39999999999998,170.8,8.39999999999998z" Fill="White" VerticalAlignment="Center" Margin="12,0,0,0"/>
-                            <Path x:Name="GUI" Data="M61.9000244140625,16.1C61.9000244140625,16.6,61.5000244140624,16.9,60.7000244140625,16.9L41.5000244140624,16.9C40.7000244140625,16.9,40.2000244140625,16.6,40.2000244140625,16.1L40.2000244140625,0.100000000000023 34.8000244140624,0.100000000000023 34.8000244140624,16.7C34.8000244140624,20.3000000000001,37.0000244140624,22.1,41.4000244140623,22.1L60.6000244140623,22.1C65.0000244140624,22.1,67.2000244140622,20.3000000000001,67.2000244140622,16.8000000000001L67.2000244140622,1.13686837721616E-13 61.8000244140621,1.13686837721616E-13 61.8000244140621,16.1000000000001z M70.0000244140624,0L75.4000244140625,0 75.4000244140625,21.9 70.0000244140624,21.9z M20.1000244140623,8.60000000000002L20.1000244140623,14 26.8000244140624,14 26.8000244140624,16.9 6.60002441406232,16.9C5.80002441406236,16.9,5.30002441406236,16.5,5.30002441406236,15.8L5.30002441406236,6.19999999999993C5.30002441406236,5.49999999999989,5.70002441406245,5.09999999999991,6.60002441406232,5.09999999999991L31.6000244140623,5.09999999999991 31.6000244140623,-1.13686837721616E-13 6.60002441406232,-1.13686837721616E-13C2.20002441406223,-1.13686837721616E-13,2.44140624090505E-05,1.79999999999984,2.44140624090505E-05,5.29999999999984L2.44140624090505E-05,16.4999999999999C2.44140624090505E-05,20.0999999999999,2.20002441406245,21.8999999999999,6.60002441406232,21.8999999999999L32.2000244140622,21.8999999999999 32.2000244140622,8.49999999999989 20.1000244140623,8.49999999999989z" Fill="#FF2AA6E2" VerticalAlignment="Center" Margin="12,0,0,0" RenderTransformOrigin="1,0.5">
-                                <Path.RenderTransform>
-                                    <TransformGroup>
-                                        <ScaleTransform/>
-                                        <SkewTransform/>
-                                        <RotateTransform/>
-                                        <TranslateTransform/>
-                                    </TransformGroup>
-                                </Path.RenderTransform>
-                            </Path>
-                        </StackPanel>
-                    </Grid>
-                    <StackPanel x:Name="HelloWorld" Grid.Row="1" Grid.ColumnSpan="2" Margin="0,15,0,0" Orientation="Horizontal" HorizontalAlignment="Center">
-                        <TextBlock x:Name="Hello" Text="Hello," FontSize="20" Foreground="White" RenderTransformOrigin="0.5,0.5">
-                            <TextBlock.RenderTransform>
-                                <TransformGroup>
-                                    <ScaleTransform/>
-                                    <SkewTransform/>
-                                    <RotateTransform/>
-                                    <TranslateTransform/>
-                                </TransformGroup>
-                            </TextBlock.RenderTransform>
-                        </TextBlock>
-                        <TextBlock x:Name="World" Text="World!" FontSize="20" Foreground="White" Margin="5,0,0,0" RenderTransformOrigin="0.5,0.5">
-                            <TextBlock.RenderTransform>
-                                <TransformGroup>
-                                    <ScaleTransform/>
-                                    <SkewTransform/>
-                                    <RotateTransform/>
-                                    <TranslateTransform/>
-                                </TransformGroup>
-                            </TextBlock.RenderTransform>
-                        </TextBlock>
-                    </StackPanel>
-                </Grid>
-            </Grid>
-        </Viewbox>
-    </Grid>
+  <Grid>
+    <Grid.Resources>
+      <!-- ToggleButton Style -->
+      <Style x:Key="ToggleButtonStyle" TargetType="{x:Type ToggleButton}" >
+        <Setter Property="Template">
+          <Setter.Value>
+            <ControlTemplate TargetType="{x:Type ToggleButton}">
+              <Grid>
+                <VisualStateManager.VisualStateGroups>
+                  <VisualStateGroup x:Name="CommonStates">
+                    <VisualStateGroup.Transitions>
+                      <VisualTransition GeneratedDuration="0:0:0.1" To="MouseOver"/>
+                      <VisualTransition From="MouseOver" GeneratedDuration="0:0:0.5"/>
+                    </VisualStateGroup.Transitions>
+                    <VisualState x:Name="Normal"/>
+                    <VisualState x:Name="MouseOver">
+                      <Storyboard>
+                        <DoubleAnimationUsingKeyFrames Storyboard.TargetProperty="(Panel.Background).(Brush.Opacity)" Storyboard.TargetName="OverBorder">
+                          <EasingDoubleKeyFrame KeyTime="0" Value="1"/>
+                        </DoubleAnimationUsingKeyFrames>
+                        <ColorAnimationUsingKeyFrames Storyboard.TargetProperty="(TextElement.Foreground).(SolidColorBrush.Color)" Storyboard.TargetName="ContentHost">
+                          <EasingColorKeyFrame KeyTime="0" Value="White"/>
+                        </ColorAnimationUsingKeyFrames>
+                      </Storyboard>
+                    </VisualState>
+                    <VisualState x:Name="Disabled"/>
+                  </VisualStateGroup>
+                </VisualStateManager.VisualStateGroups>
+                <Border x:Name="OverBorder">
+                  <Border.Background>
+                    <SolidColorBrush Color="Yellow" Opacity="0.5"/>
+                  </Border.Background>
+                </Border>
+                <Border>
+                  <ContentPresenter x:Name="ContentHost"/>
+                </Border>
+              </Grid>
+              <ControlTemplate.Triggers>
+                <Trigger Property="IsChecked" Value="True">
+                  <Setter Property="Foreground" Value="Red"/>
+                </Trigger>
+              </ControlTemplate.Triggers>
+            </ControlTemplate>
+          </Setter.Value>
+        </Setter>
+      </Style>
+    </Grid.Resources>
+
+    <ToggleButton Style="{StaticResource ToggleButtonStyle}">111</ToggleButton>
+
+  </Grid>
 </Window>
NoesisGUI-win-x86_64sln_HelloWorld.patch (22,639 bytes)
sfernandez

sfernandez

2020-07-01 12:26

manager   ~0006482

Thanks a lot for that xaml, looking into it right now.
sfernandez

sfernandez

2020-07-01 17:23

manager   ~0006484

I moved the second crash (the one related to animations) to a new ticket: 0001743
nikobarli

nikobarli

2020-07-02 10:47

reporter   ~0006491

Thanks, I confirmed that the fix in 1743.

BTW, could you clarify in what condition the crash in that scenario happens ?
We are in final stage of releasing software, and we probably not able to incorporate the fix unless it is really necessary (to avoid risk of side effects).
If we can know the condition that cause the crash, we can check our XAML style to see whether it is likely to happens and decide whether to incorporate the fix.
sfernandez

sfernandez

2020-07-02 12:23

manager   ~0006493

It was happening when an ongoing visual transition (MouseOver) animates an object that gets destroyed (because IsChecked changes the Foreground brush object).
In the attached sample you can workaround the bug by using a local brush (instead of the inherited from the Control):

<ContentPresenter x:Name="ContentHost">

<TextElement.Foreground>

<SolidColorBrush Color="{Binding Foreground.Color, RelativeSource={RelativeSource TemplatedParent}}"/>

</TextElement.Foreground>

</ContentPresenter>
nikobarli

nikobarli

2020-07-22 05:55

reporter   ~0006541

FYI, we added the following fix to our internal Noesis source code for release.
Sorry that we don't have the information yet on which UI element that causes the crash (because we needed to release the software) .

void ViewLayout::ProcessMeasures()
{
NS_PROFILE_CPU("Gui/Layout/Measure");

Ptr<UIElement> current(*mMeasures.begin());

NS_ASSERT(!current->IsMeasureValid());

mInsideLayout = true;
current->Measure(current->GetMeasureConstraint());
mInsideLayout = false;

}
