View Issue Details

IDProjectCategoryView StatusLast Update
0002414NoesisGUIC++ SDKpublic2022-09-13 12:43
Reporterjack.barkov Assigned Tojsantos
PrioritynormalSeveritycrashReproducibilityalways
Status resolvedResolutionfixed
Product Version3.1.5
Fixed in Version3.1.6
Summary0002414: Crash - NoesisApp::GLRenderDevice::DestroyBuffer
DescriptionI have a bug when I close an application using the OpenGL render.

The crash happens in Noesis::GUI::Shutdown() => GLRenderDevice::DestroyBuffer(DynamicBuffer& buffer);

I was able to reproduce the crash using:
- Windows 7
- Android (only tested on arm64)
- iPhone 13 Pro Max

On my main machine, I use a Windows 11, where the crash does not happen.

I managed to generate a dump in vs2022 with the same error happening in your Samples.HelloWorld.

I also put the exes/pdbs so you can open the dmp and see exactly the error.

Link:
https://drive.google.com/file/d/1lmwTUw8KPbS4r3IbBldiqv9Ji0n8o5Vi/view?usp=sharing

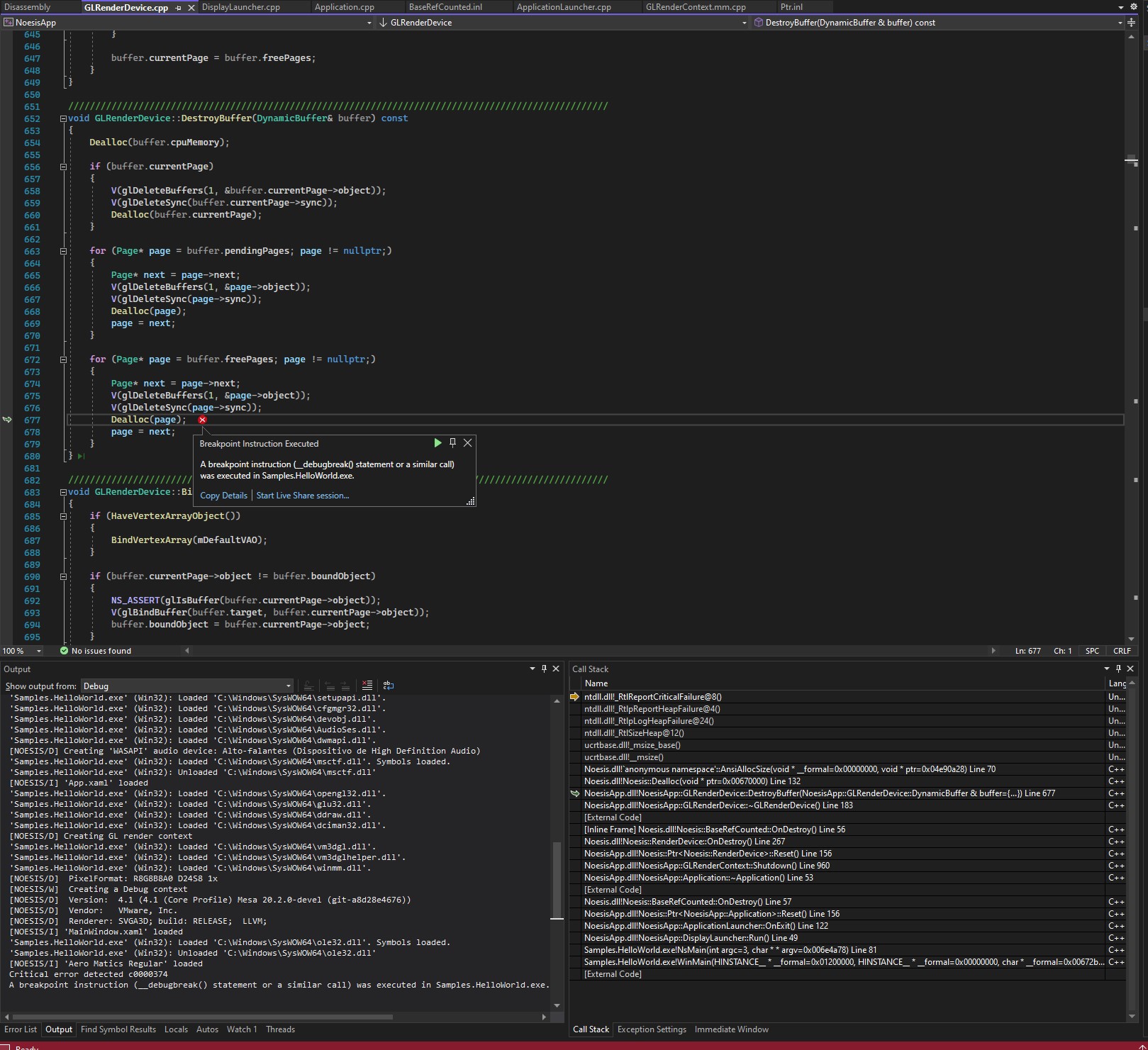

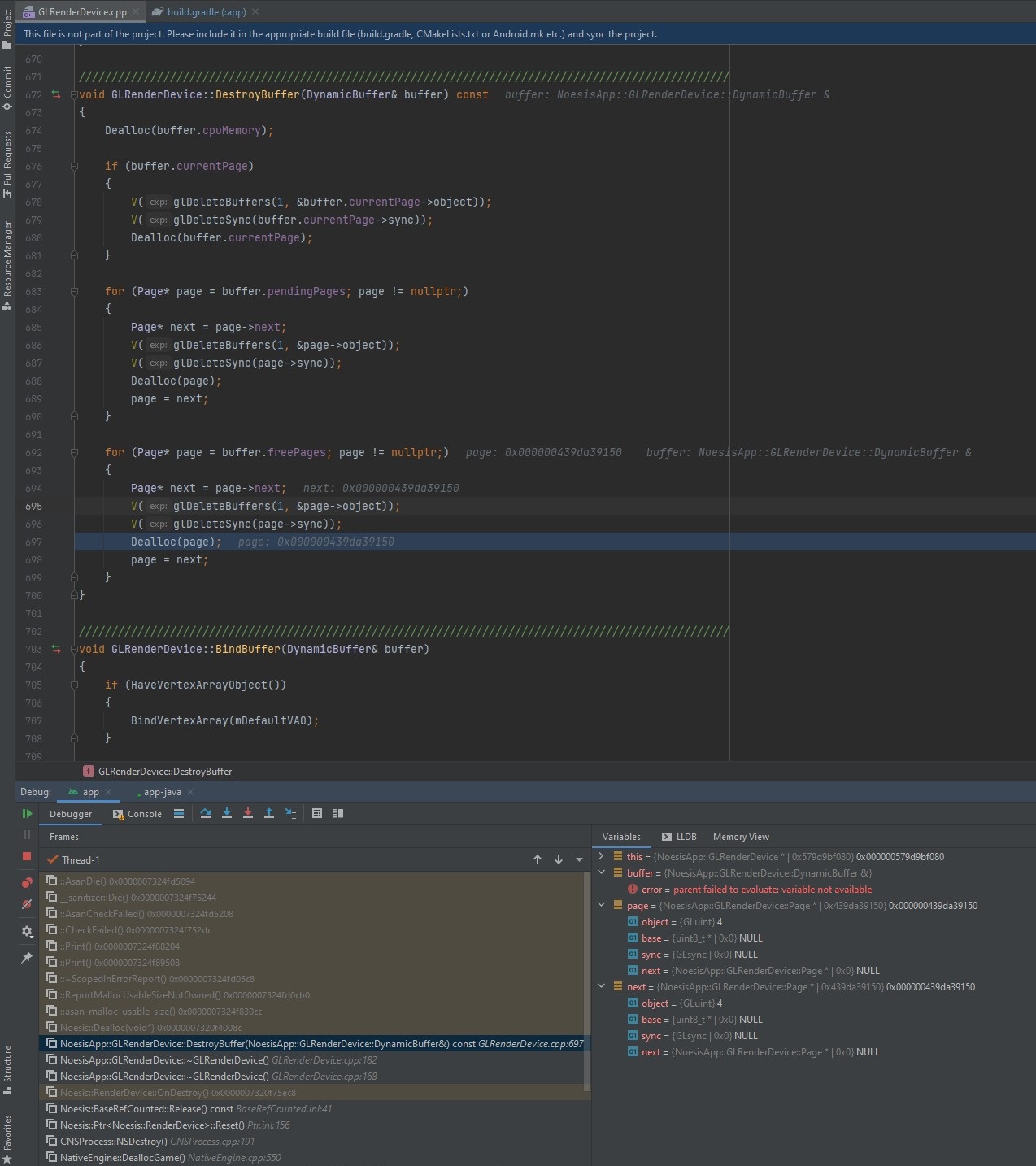

Attached here is a print of a crash on windows (samples.helloworld) and one on android (my test application).

Thanks.
Steps To ReproduceOpen and close the Sample.HelloWorld using OpenGL renderer.
TagsNo tags attached.
PlatformAny

Activities

jack.barkov

jack.barkov

2022-09-08 22:08

reporter

jsantos

jsantos

2022-09-09 15:25

manager   ~0008059

The attached minidump seems to be a different thing. And instead of a crash it is a debugger breakpoint

     ntdll.dll!77eceabe()	Unknown
     [Frames below may be incorrect and/or missing, no symbols loaded for ntdll.dll]
     ntdll.dll!77ecf9f1()	Unknown
>	Noesis.dll!Noesis::RenderDevice::OnDestroy() Line 267	C++
     NoesisApp.dll!NoesisApp::Application::~Application() Line 53	C++
     Samples.HelloWorld.exe!HelloWorld::App::~App()	C++
     Samples.HelloWorld.exe!HelloWorld::App::`scalar deleting destructor'(unsigned int)	C++
     Noesis.dll!Noesis::BaseRefCounted::OnDestroy() Line 57	C++
     NoesisApp.dll!Noesis::Ptr<NoesisApp::Application>::Reset() Line 156	C++
     NoesisApp.dll!NoesisApp::ApplicationLauncher::OnExit() Line 122	C++
     NoesisApp.dll!NoesisApp::DisplayLauncher::Run() Line 49	C++
     Samples.HelloWorld.exe!NsMain(int argc, char * * argv) Line 81	C++
     Samples.HelloWorld.exe!WinMain(HINSTANCE__ * __formal, HINSTANCE__ * __formal, char * __formal, int __formal) Line 36	C++
jsantos

jsantos

2022-09-09 15:33

manager   ~0008060

But don't worry about it. I think I found something wrong. I will send you a patch soon.
jsantos

jsantos

2022-09-09 20:19

manager   ~0008062

Could you please try changing the implementation of GLRenderDevice::DestroyBuffer to

void GLRenderDevice::DestroyBuffer(DynamicBuffer& buffer) const
{
    Dealloc(buffer.cpuMemory);

    if (HaveBufferStorage())
    {
        if (buffer.currentPage)
        {
            V(glDeleteBuffers(1, &buffer.currentPage->object));
            V(glDeleteSync(buffer.currentPage->sync));
            Dealloc(buffer.currentPage);
        }

        for (Page* page = buffer.pendingPages; page != nullptr;)
        {
            Page* next = page->next;
            V(glDeleteBuffers(1, &page->object));
            V(glDeleteSync(page->sync));
            Dealloc(page);
            page = next;
        }
    }

    for (Page* page = buffer.freePages; page != nullptr;)
    {
        Page* next = page->next;
        V(glDeleteBuffers(1, &page->object));
        V(glDeleteSync(page->sync));
        Dealloc(page);
        page = next;
    }
}
jack.barkov

jack.barkov

2022-09-10 00:37

reporter   ~0008063

This code snippet solved the problem.
I tested it on Android and Windows.

Thank you!
