Summary0002505: Transform3D + Effects Rendering Behavior
Description

Given the following XAML:

<Grid x:Name="_LayoutRoot">
<noesis:Element.Transform3D>
<noesis:CompositeTransform3D RotationY="-6"/>
</noesis:Element.Transform3D>
<Rectangle ... />
...

If an effect such as BlurEffect or DropShadowEffect is applied to the parent the resulting output is missing or corrupt. Please see the following screenshots, A, B, C and D. Note the UI element in the top-left corner.

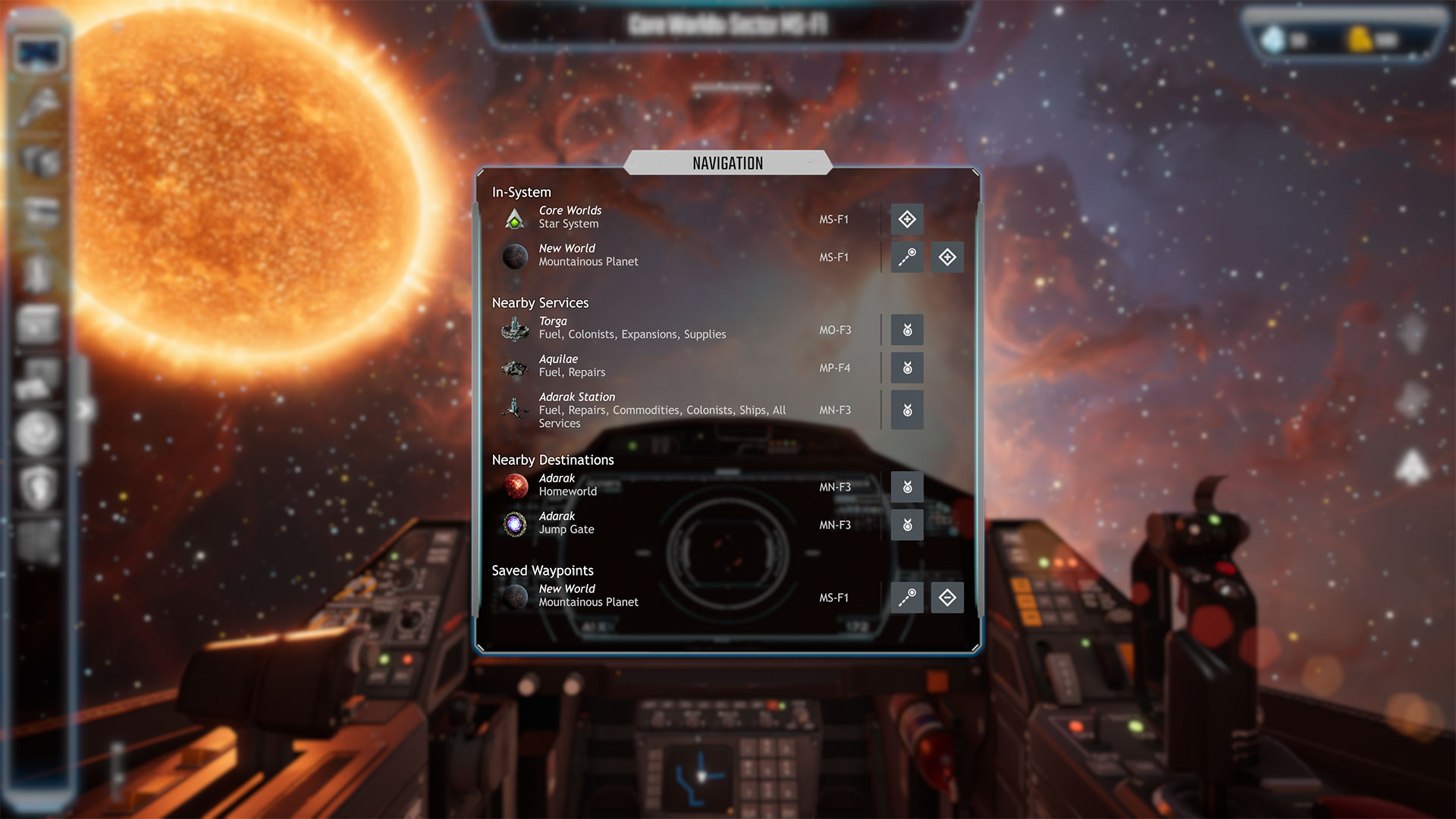

A. The UI element does not have a composite transform applied. No effect is applied. OK!

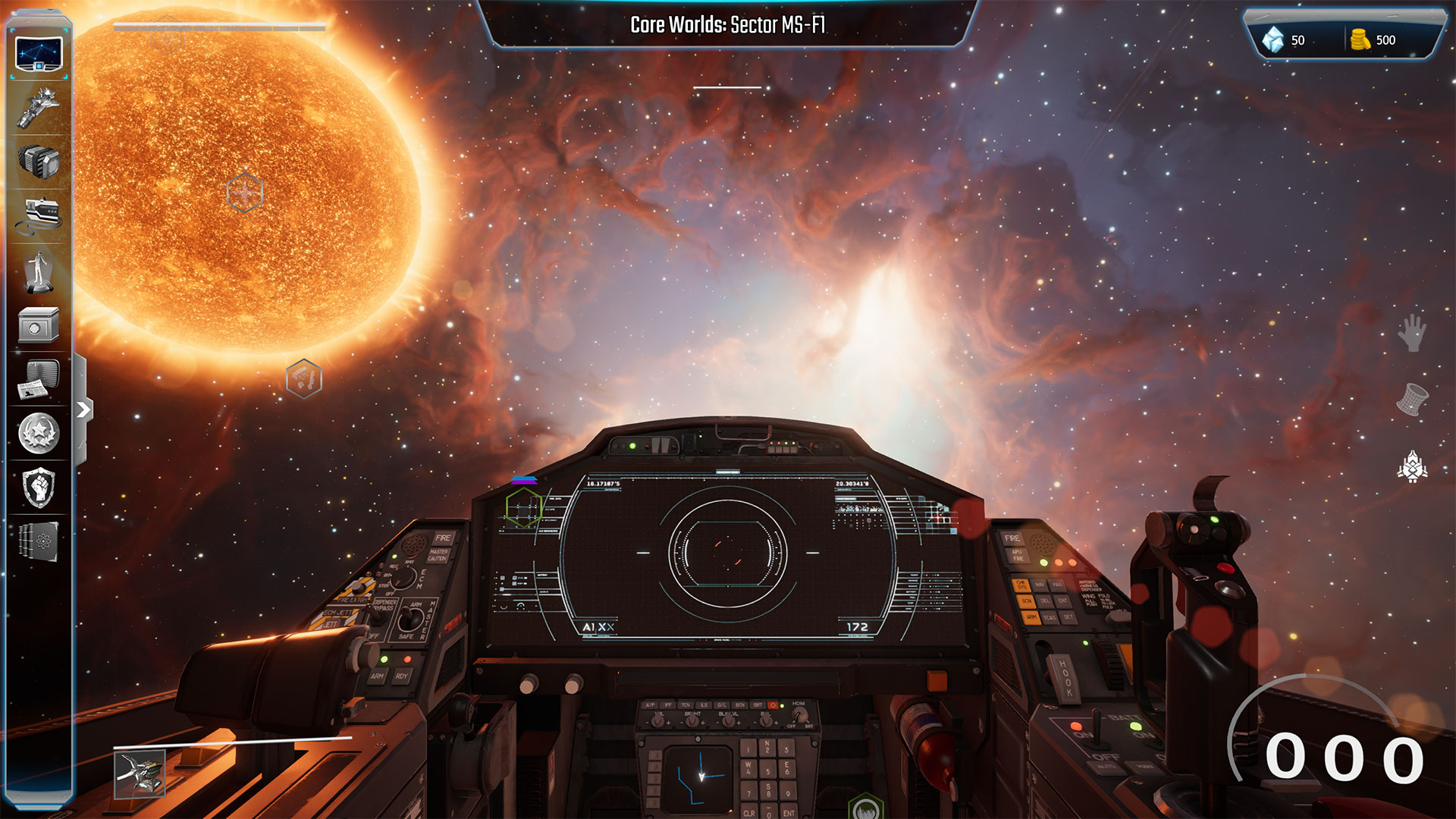

B. The UI element does not have a composite transform applied. BlurEffect is applied. OK!

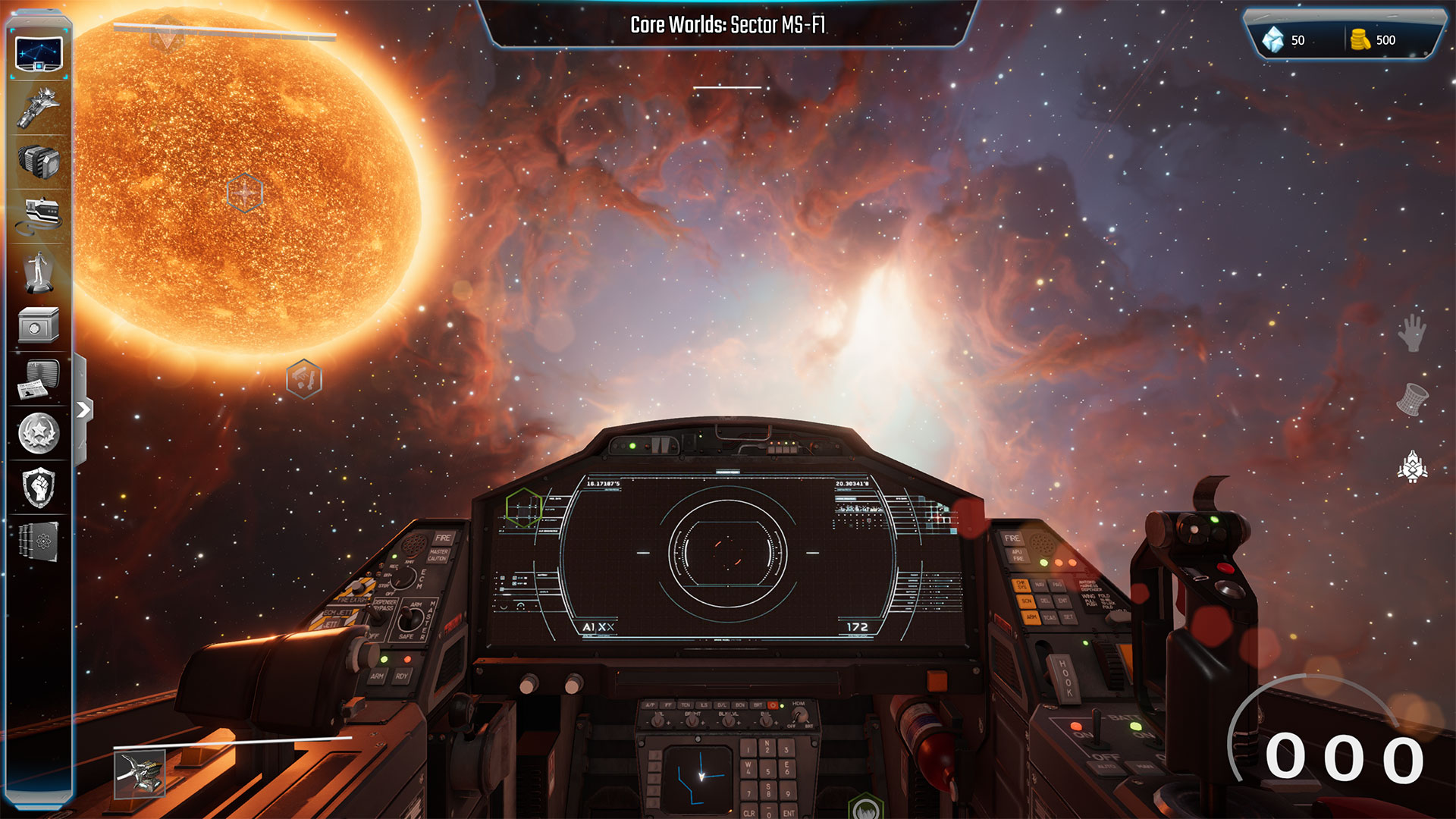

C. The UI element has a composite transform applied. No effect is applied. OK!

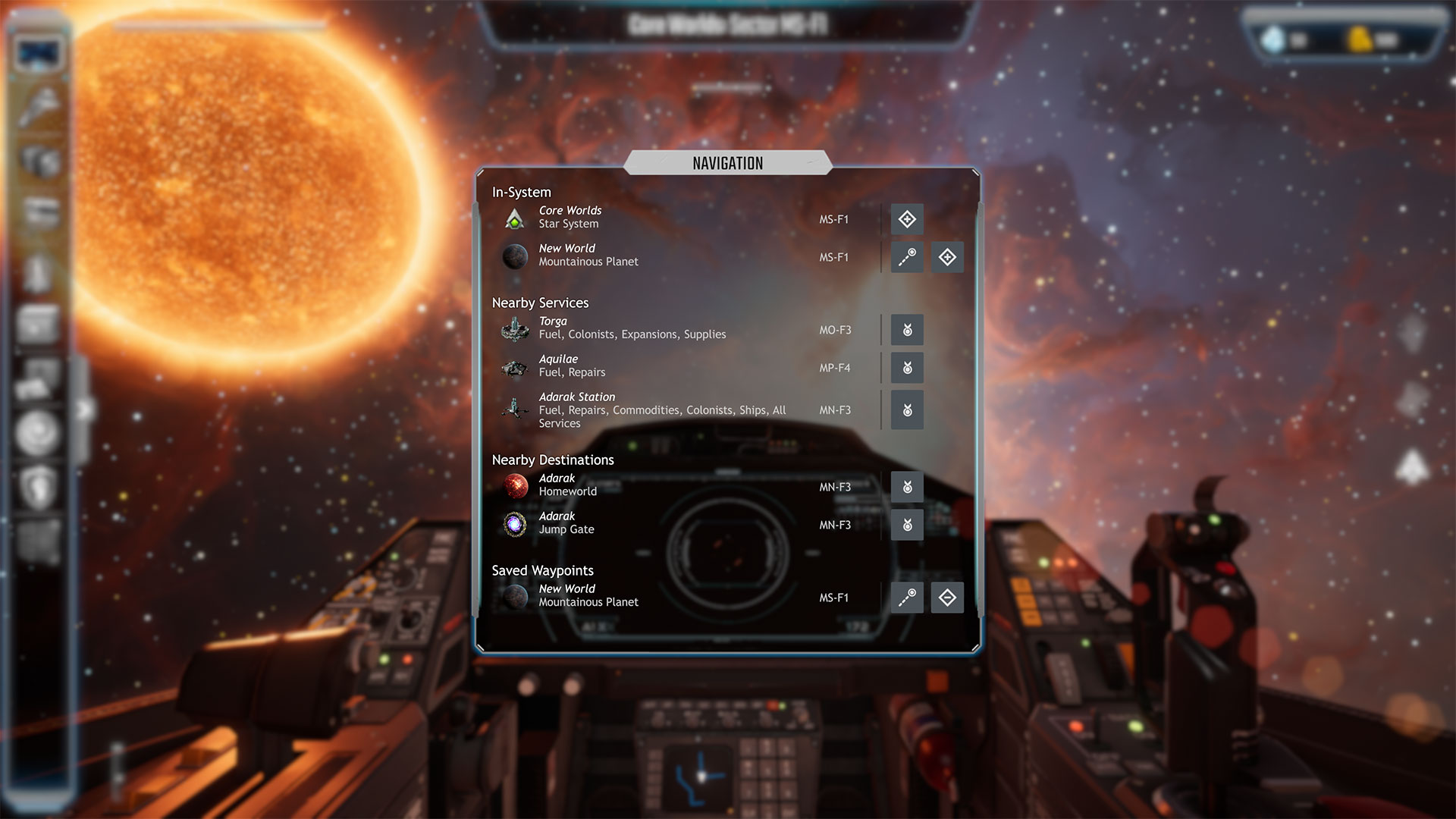

D. The UI element has a composite transform applied. BlurEffect is applied. FAIL!

Attached Files
PlatformAny

Relationships

duplicate of 0002299 feedbacksfernandez An element using Transform3D is not rendered if the container in which it is contained has the Blur effect set.

Activities

stonstad

stonstad

2023-02-09 18:58

reporter   ~0008272

Confirmed that this behavior persists in 3.1.7.
