It seems there is a problem rendering with the vscode extension, while we prepare an instrumented version to gather more information, could you please download the latest macOS C++ SDK (3.2 Beta) at
https://www.noesisengine.com/forums/viewtopic.php?t=2822
And try to launch SDKBrowser and XamlPlayer to check if they render correctly on your machine?
Thank you |
|
|
|

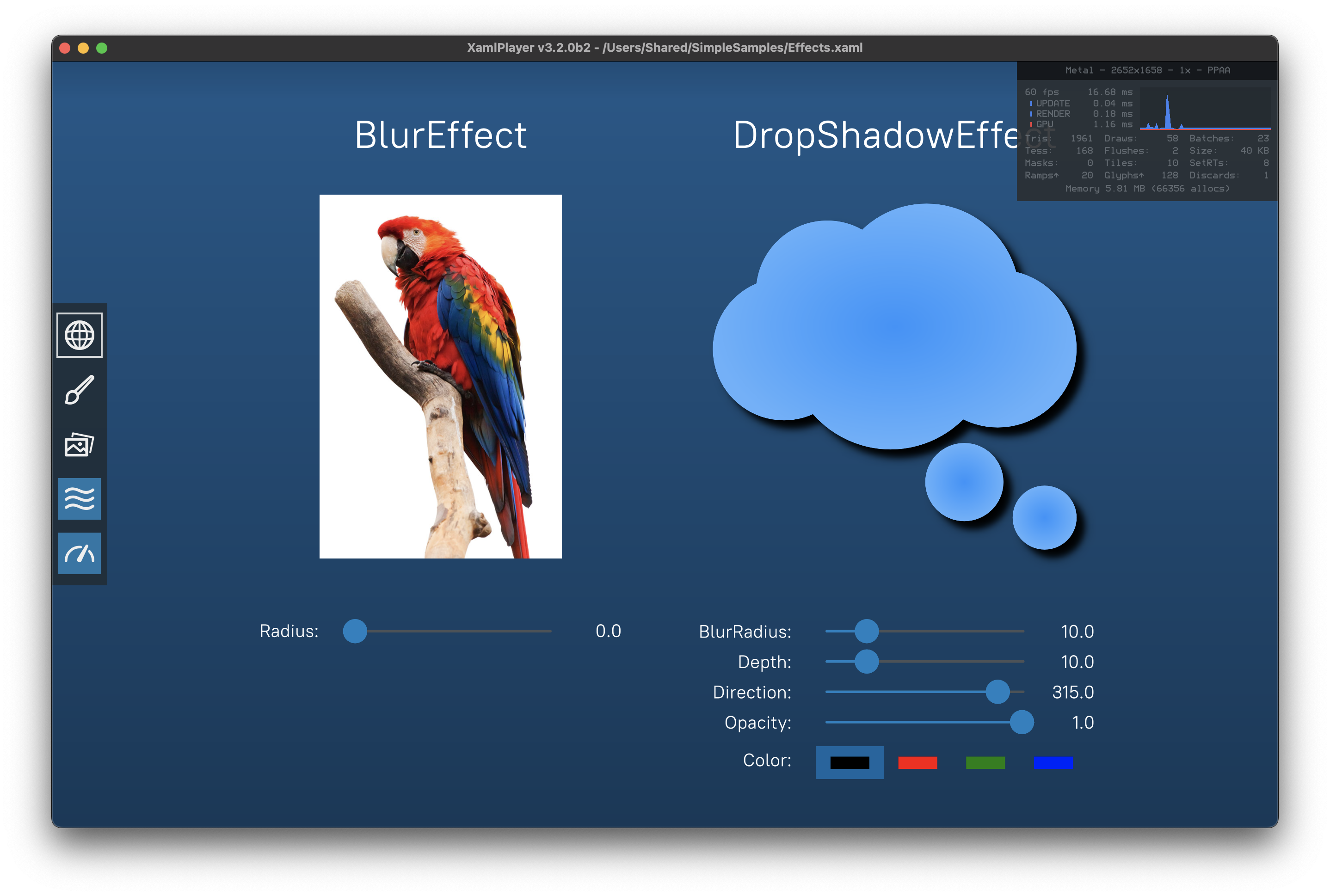

I checked the latest SDKBrowser & XamlPlayer both work: |
|
|
|
I have created a test binary which, when run, will output a test render png and log to the same folder.
Could you please download this binary (link to the zip below), run it in the terminal, and then upload the output png and log here?
https://drive.google.com/file/d/1P0p0PO9RXg-Ydz_epxd2_UYo9gs3uSpr
Thanks! |
|
|
|
Hello @maherne, here are the files generated by the test tool:
lang-server-test.log (482 bytes)
[NOESIS/I] Logging to 'lang-server-test.log'
[NOESIS/I] LangServer test start
[NOESIS/D] Creating 'Core Audio' audio device: MacBook Pro Speakers
[NOESIS/D] Creating Metal render context
[NOESIS/D] MTLDevice: AMD Radeon Pro 5500M
[NOESIS/T] Page 'Vertices[0]' created (512 KB)
[NOESIS/T] Page 'Indices[0]' created (128 KB)
[NOESIS/T] Pipeline '0x5030' compiled in 12 ms
[NOESIS/I] Rendering to 'lang-server-test.png'
[NOESIS/I] LangServer test completed
[NOESIS/I] Noesis Shutdown
|
|
|
|
Thanks for the results. Unfortunately, it doesn't report enough information. I am attaching a script that will enable Metal validation (enable_debug)
Please, could you:
- Copy the attached script (enable_debug) to the folder where you have App.LangServerTool
- Give execution permissions to the script (chmod +x enable_debug)
- Execute the script (./enable_debug)
- Execute our tool (./App.LangServerTool)
- Please, send us the report again (lang-server-test.log)
enable_debug (520 bytes)
# Metal Tracing Defaults
export DYLD_INSERT_LIBRARIES="/usr/lib/libMTLCapture.dylib:/Applications/Xcode.app/Contents/Developer/Platforms/MacOSX.platform/Developer/Library/GPUToolsPlatform/libMTLToolsDiagnostics.dylib"
export METAL_DEBUG_ERROR_MODE=0
export METAL_DEVICE_FORCE_COMMAND_BUFFER_ENHANCED_ERRORS=1
export METAL_DEVICE_WRAPPER_TYPE=5
export METAL_DIAGNOSTICS_ENABLED=1
export METAL_LOAD_INTERPOSER=1
export MTL_FORCE_COMMAND_BUFFER_ENHANCED_ERRORS=1
export DYMTL_TOOLS_DYLIB_PATH="/usr/lib/libMTLCapture.dylib"
|
|
|
|

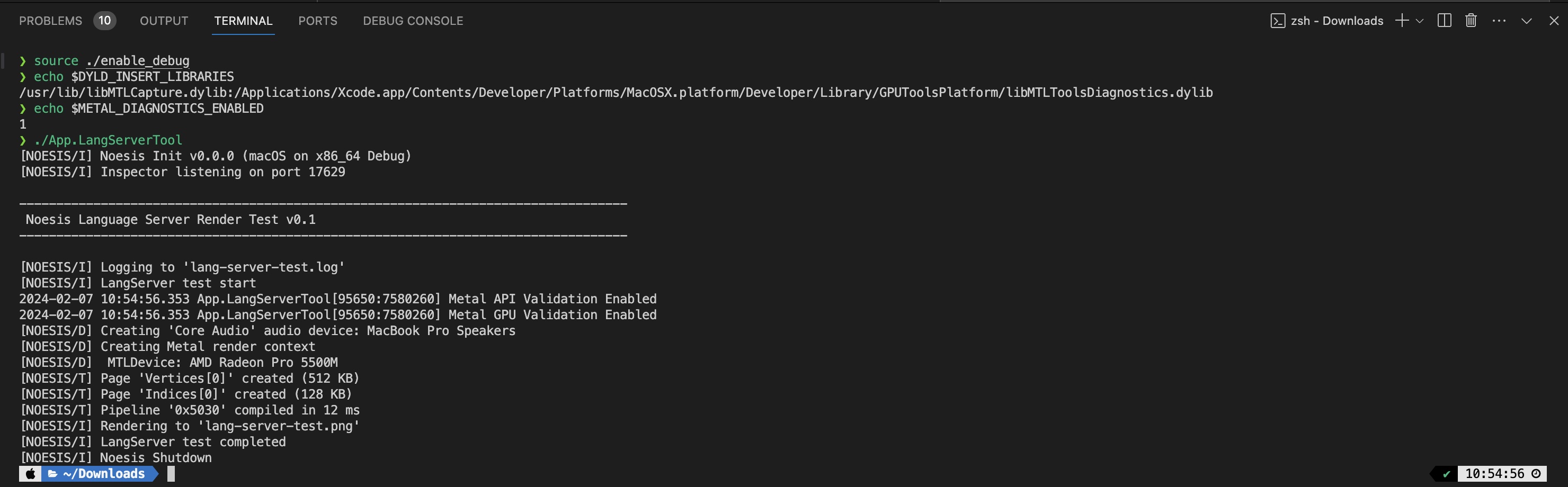

Here are the steps I did and the new log:
- add the env vars
❯ source ./enable_debug
- echo to check if the env vars have applied
❯ echo $DYLD_INSERT_LIBRARIES
/usr/lib/libMTLCapture.dylib:/Applications/Xcode.app/Contents/Developer/Platforms/MacOSX.platform/Developer/Library/GPUToolsPlatform/libMTLToolsDiagnostics.dylib
❯ echo $METAL_DIAGNOSTICS_ENABLED
1
- run the tool
❯ ./App.LangServerTool
lang-server-test-2.log (1,446 bytes)
[NOESIS/I] Logging to 'lang-server-test.log'
[NOESIS/I] LangServer test start
[NOESIS/D] Creating 'Core Audio' audio device: MacBook Pro Speakers
[NOESIS/D] Creating Metal render context
[NOESIS/D] MTLDevice: AMD Radeon Pro 5500M
[NOESIS/T] Page 'Vertices[0]' created (512 KB)
[NOESIS/T] Page 'Indices[0]' created (128 KB)
[NOESIS/T] Pipeline '0x5030' compiled in 14 ms
[NOESIS/I] Rendering to 'lang-server-test.png'
[NOESIS/I] LangServer test completed
[NOESIS/I] Noesis Shutdown
[NOESIS/I] Logging to 'lang-server-test.log'
[NOESIS/I] LangServer test start
[NOESIS/D] Creating 'Core Audio' audio device: MacBook Pro Speakers
[NOESIS/D] Creating Metal render context
[NOESIS/D] MTLDevice: AMD Radeon Pro 5500M
[NOESIS/T] Page 'Vertices[0]' created (512 KB)
[NOESIS/T] Page 'Indices[0]' created (128 KB)
[NOESIS/T] Pipeline '0x5030' compiled in 10 ms
[NOESIS/I] Rendering to 'lang-server-test.png'
[NOESIS/I] LangServer test completed
[NOESIS/I] Noesis Shutdown
[NOESIS/I] Logging to 'lang-server-test.log'
[NOESIS/I] LangServer test start
[NOESIS/D] Creating 'Core Audio' audio device: MacBook Pro Speakers
[NOESIS/D] Creating Metal render context
[NOESIS/D] MTLDevice: AMD Radeon Pro 5500M
[NOESIS/T] Page 'Vertices[0]' created (512 KB)
[NOESIS/T] Page 'Indices[0]' created (128 KB)
[NOESIS/T] Pipeline '0x5030' compiled in 11 ms
[NOESIS/I] Rendering to 'lang-server-test.png'
[NOESIS/I] LangServer test completed
[NOESIS/I] Noesis Shutdown
|
|
|
|
Sorry, we have been really busy with Beta 3.
Could you please send the full information of your MacBook Pro? |
|
|
|

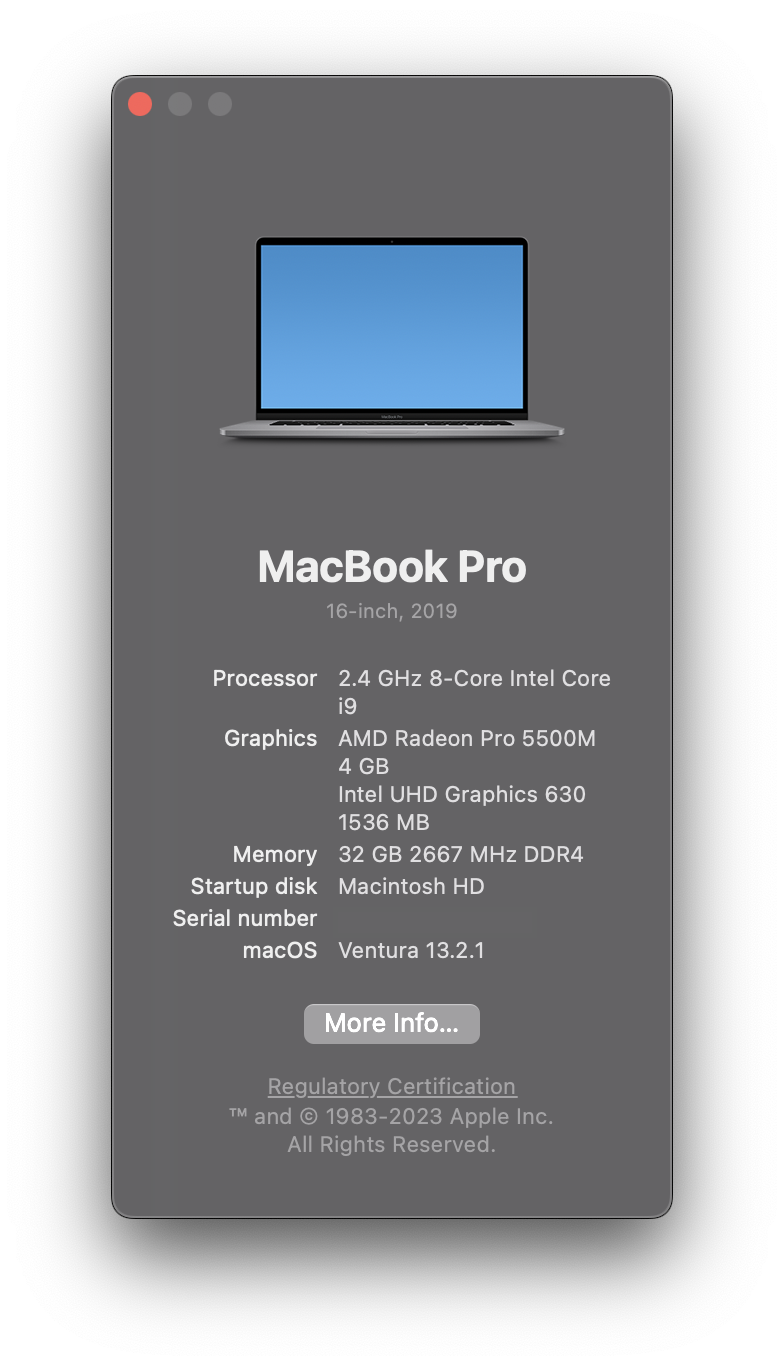

@jsantos Here is the information from "About This Mac".
If you need any extra info please tell me, thanks, and take your time! |
|
|
|
Could you please try with the latest version in the store (0.0.47) ? |
|
|
|
I've just tried the latest version 0.0.47.
Unfortunately, I still have the same issue.

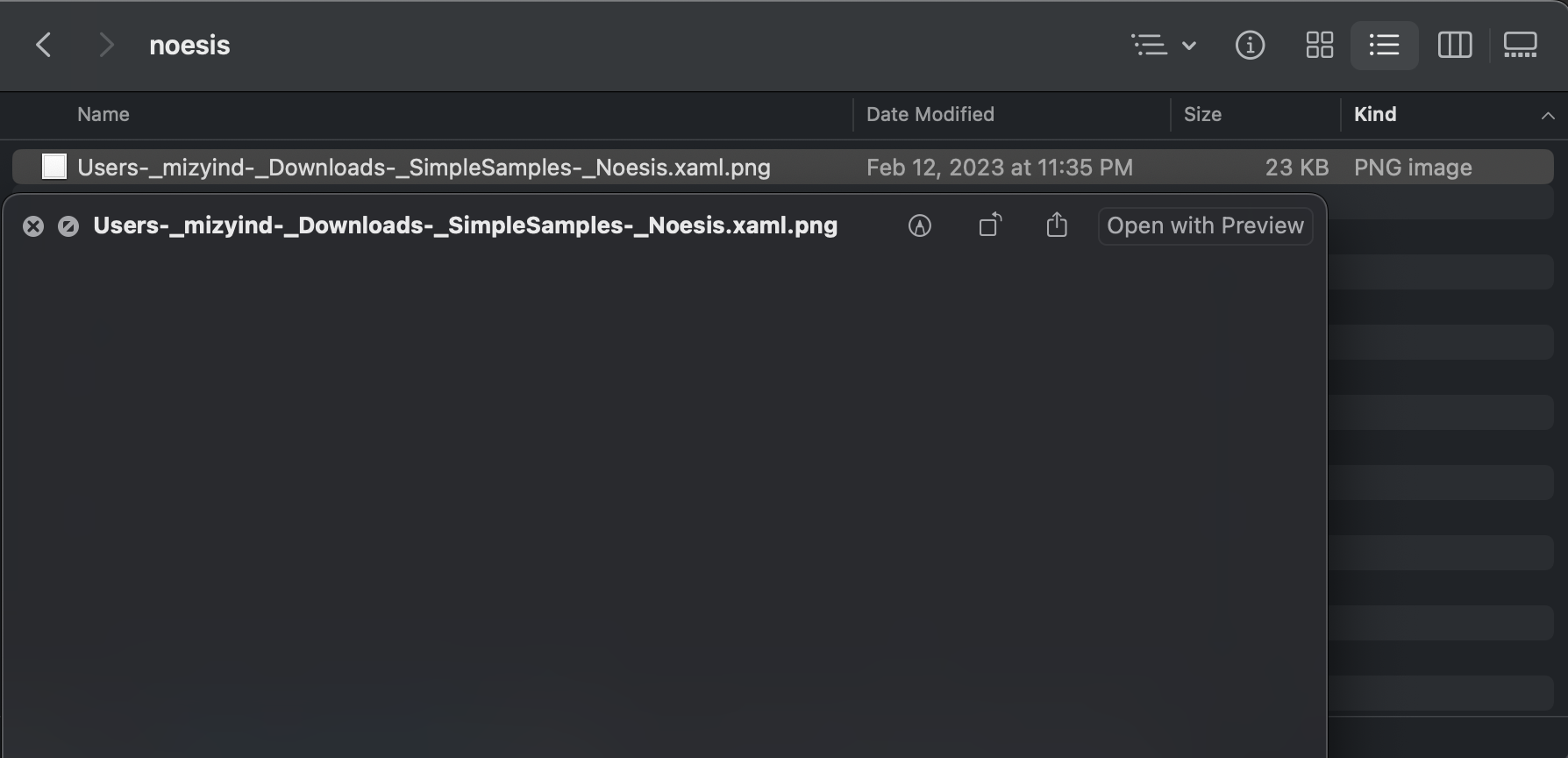

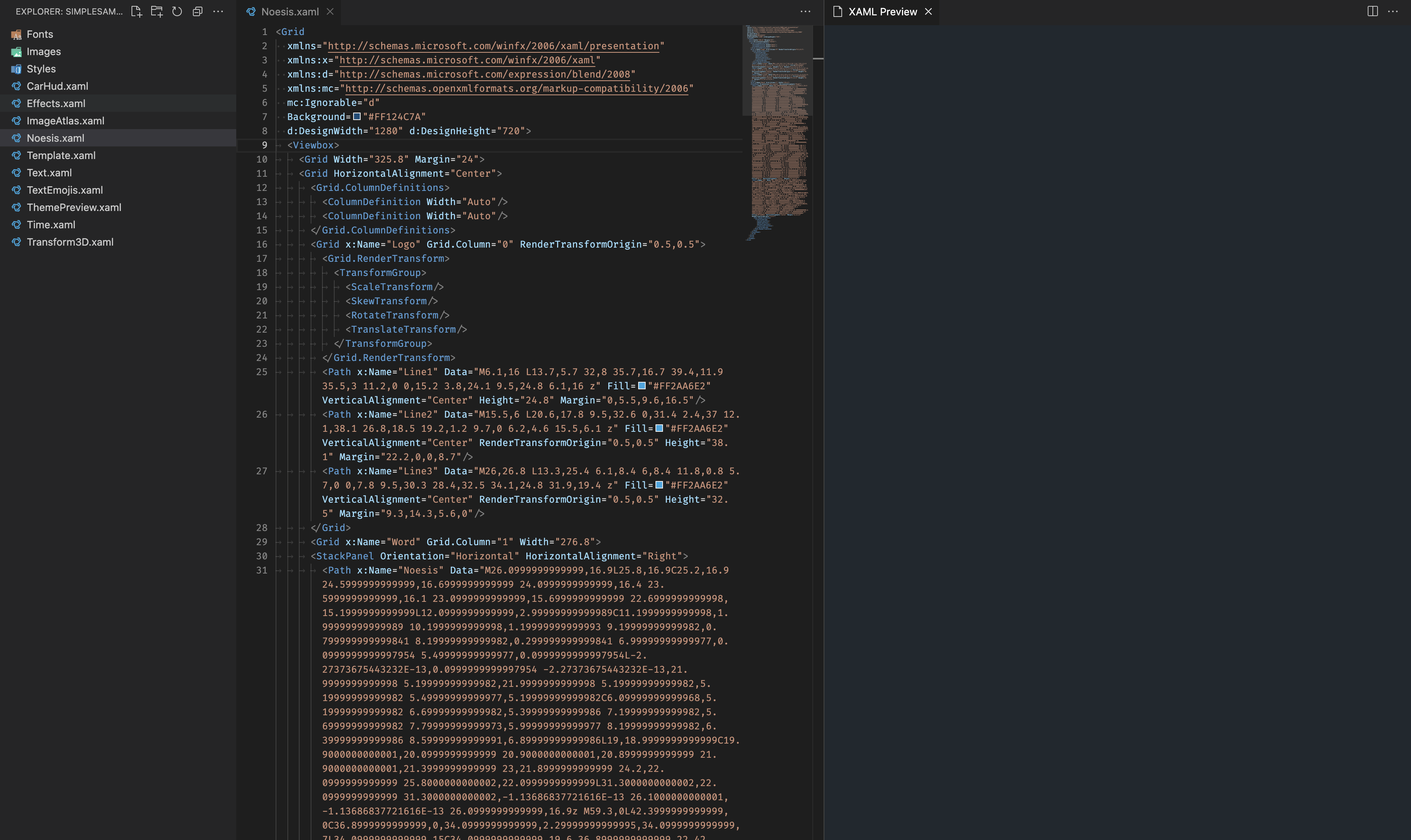

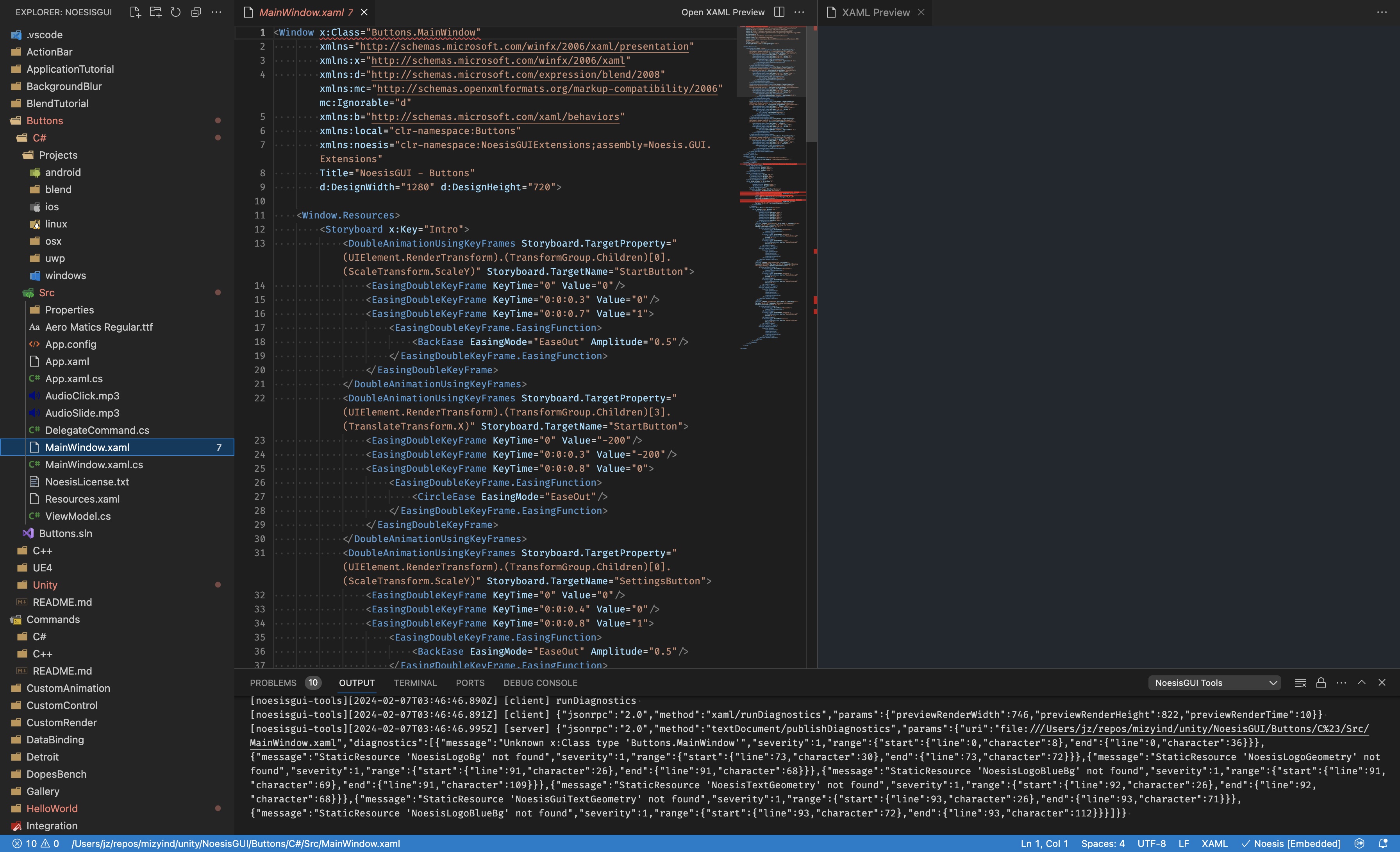

Here are the screenshots and the log generated by App.LangServerTool (with enable_debug).
lang-server-test-3.log (482 bytes)
[NOESIS/I] Logging to 'lang-server-test.log'
[NOESIS/I] LangServer test start
[NOESIS/D] Creating 'Core Audio' audio device: MacBook Pro Speakers
[NOESIS/D] Creating Metal render context
[NOESIS/D] MTLDevice: AMD Radeon Pro 5500M
[NOESIS/T] Page 'Vertices[0]' created (512 KB)
[NOESIS/T] Page 'Indices[0]' created (128 KB)
[NOESIS/T] Pipeline '0x5030' compiled in 12 ms
[NOESIS/I] Rendering to 'lang-server-test.png'
[NOESIS/I] LangServer test completed
[NOESIS/I] Noesis Shutdown
|
|
|
|
Could you please confirm if this is happening with the latest version (0.1.55) ? |
|
|
|
I just tried the latest version 0.1.55.
Unfortunately, it's still the same.
Here are the latest records.
lang-server-test-4.log (560 bytes)
[NOESIS/I] Logging to 'lang-server-test.log'
[NOESIS/I] LangServer test start
[NOESIS/D] Creating 'Core Audio' audio device: MacBook Pro Speakers
[NOESIS/D] Creating Metal render context
[NOESIS/D] MTLDevice: AMD Radeon Pro 5500M
[NOESIS/T] Page 'Vertices[0]' created (512 KB)
[NOESIS/T] Page 'Indices[0]' created (128 KB)
[NOESIS/T] Pipeline '0x5030' compiled in 14 ms
[NOESIS/I] Rendering to 'lang-server-test.png'
[NOESIS/I] LangServer test completed
[NOESIS/I] Noesis Shutdown
[NOESIS/I] Logging to 'lang-server-test.log'
[NOESIS/I] LangServer test start
|
|
|
|
Would you be open to allowing a connection to this computer and try a few things? (I will need XCode). |
|
|
|
Yes, I’m happy to allow a remote connection to help troubleshoot the issue.
I’m in the UTC+7 time zone and available between 10:00 AM – 6:00 PM local time, which corresponds to 5:00 AM – 1:00 PM CEST.
Let me know if that works for you, or feel free to suggest a time that suits you better. |
|
|
|
Thank you! Let's talk next week about this. I need to prepare a small sample for debugging.
I wonder if you could download the C++ SDK (3,2,8) for macOS. I will need to open it with Xcode on your computer. |
|
