IDProjectCategoryView StatusDate SubmittedLast Update
0002594NoesisGUIUnrealpublic2023-05-11 13:172023-07-19 17:14
Reportersergey_sitnikov_ninjatheory Assigned Tosfernandez
PrioritynormalSeveritymajor
Status resolvedResolutionfixed
Product Version3.2.1
Target Version3.2.2Fixed in Version3.2.2
Summary0002594: Complex OpacityMask with transparency provides different results in WPF and Noesis 3.2.0
Description

Complex OpacityMasks with transparency can provide different results in WPF and Noesis 3.2.0. The problem can cause flickering when Opacity is animated. The issue wasn't noticed in version 3.1.6.

Steps To Reproduce

<Grid Background="Black">
<Grid>
<Grid.OpacityMask>
<LinearGradientBrush StartPoint="0,0.5" EndPoint="1,0.5">
<GradientStop Color="Transparent" Offset="0" />
<GradientStop Color="Black" Offset="0.5" />
<GradientStop Color="Transparent" Offset="1" />
</LinearGradientBrush>
</Grid.OpacityMask>

                            <Grid>
                                            <Grid.OpacityMask>
                                                            <LinearGradientBrush StartPoint="0.5,0" EndPoint="0.5,1">
                                                                            <GradientStop Color="Black" Offset="0" />
                                                                            <GradientStop Color="Transparent" Offset="1" />
                                                            </LinearGradientBrush>
                                            </Grid.OpacityMask>
                                            <Grid Background="Red" />
                            </Grid>
            </Grid>

</Grid>

Attached Files

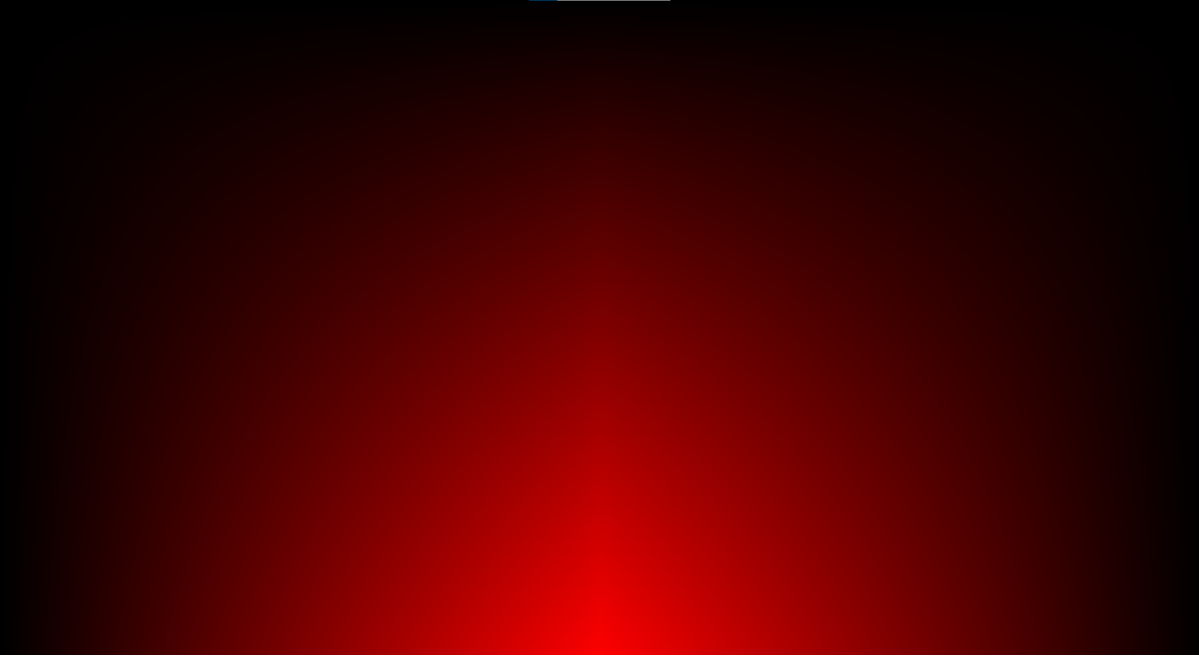

Unreal (Noesis 3.2.0).png (240,850 bytes)
Unreal (Noesis 3.2.0).png (240,850 bytes)
PlatformAny

Relationships

has duplicate 0002652 resolvedsfernandez Opacity Mask Bug - Element Rendered Vertically Flipped

Activities

sfernandez

sfernandez

2023-05-12 10:44

manager   ~0008474

Fixed in rev. 12519

Issue History

Date Modified Username Field Change
2023-05-11 13:17 sergey_sitnikov_ninjatheory New Issue

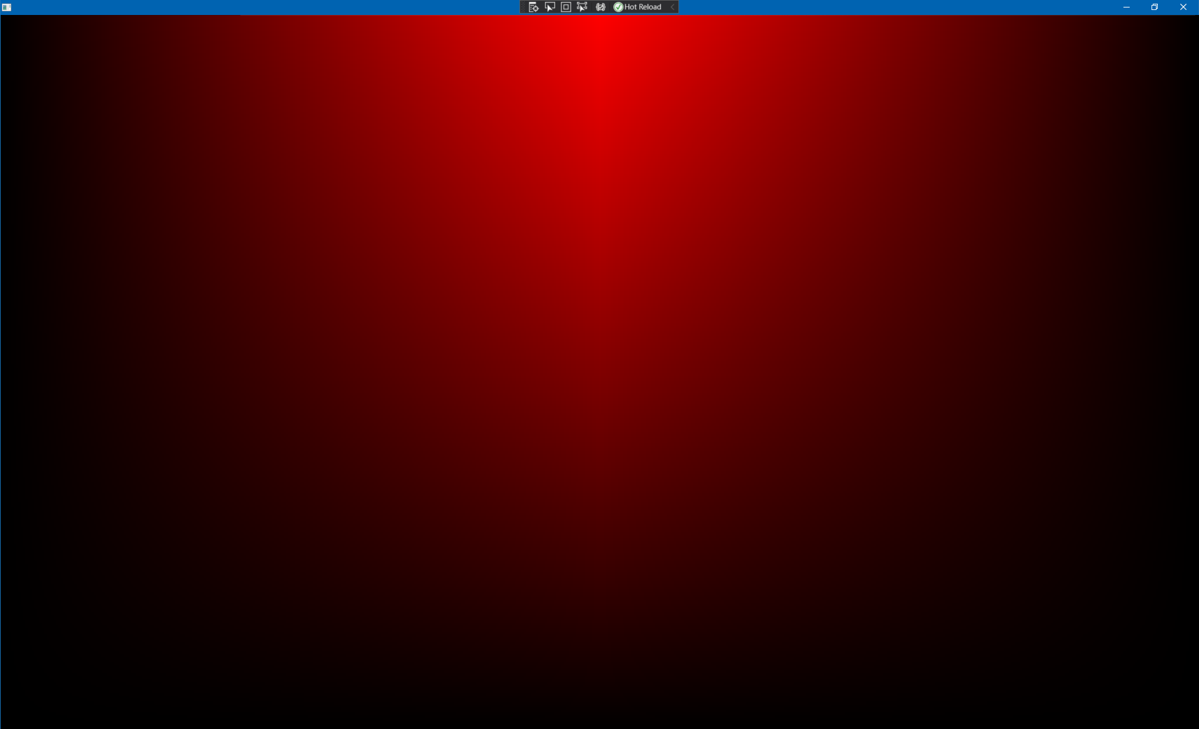

2023-05-11 13:17 sergey_sitnikov_ninjatheory File Added: WPF.png
2023-05-11 13:17 sergey_sitnikov_ninjatheory File Added: Unreal (Noesis 3.2.0).png
2023-05-11 14:13 sfernandez Assigned To => sfernandez
2023-05-11 14:13 sfernandez Status new => assigned
2023-05-11 14:13 sfernandez Product Version 3.2 => 3.2.1
2023-05-11 14:13 sfernandez Target Version => 3.2.2
2023-05-12 10:44 sfernandez Status assigned => resolved
2023-05-12 10:44 sfernandez Resolution open => fixed
2023-05-12 10:44 sfernandez Fixed in Version => 3.2.2
2023-05-12 10:44 sfernandez Note Added: 0008474
2023-07-19 17:14 sfernandez Relationship added has duplicate 0002652
