Thanks for the report. Could you please attach a full XAML that can be pasted into XamlPlayer or XamlToy to reproduce the issue? |
|
|
|
Also, if you can post some images with the difference between the expected and unexpected results to better understand what is happening, thank you! |
|
|
|

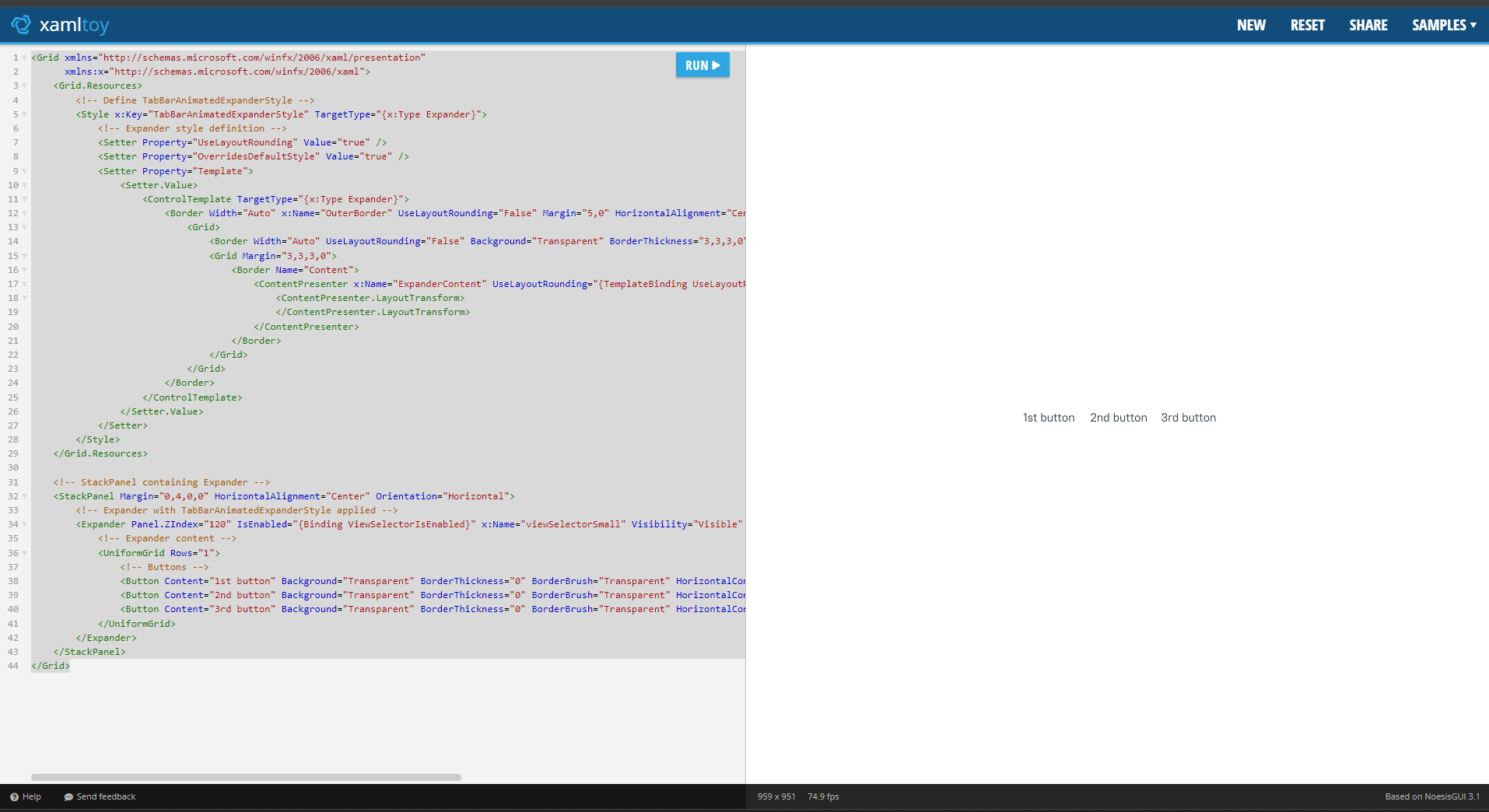

Thanks for the information. I am bit confused with what xamltoy.png is, because I have tried your XAML and I have several errors regarding StaticResource.
Could you please provide a clean XAML that we can use in Xamltoy and XamlPlayer to reproduce the issue?
Thank you! |
|
|
|
Here is the code without any compiling without errors in XamlToy:
<Grid xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
<Grid.Resources>
<!-- Define TabBarAnimatedExpanderStyle -->
<Style x:Key="TabBarAnimatedExpanderStyle" TargetType="{x:Type Expander}">
<!-- Expander style definition -->
<Setter Property="UseLayoutRounding" Value="true" />
<Setter Property="OverridesDefaultStyle" Value="true" />
<Setter Property="Template">
<Setter.Value>
<ControlTemplate TargetType="{x:Type Expander}">
<Border Width="Auto" x:Name="OuterBorder" UseLayoutRounding="False" Margin="5,0" HorizontalAlignment="Center">
<Grid>
<Border Width="Auto" UseLayoutRounding="False" Background="Transparent" BorderThickness="3,3,3,0" BorderBrush="White" CornerRadius="15,15,0,0" />
<Grid Margin="3,3,3,0">
<Border Name="Content">
<ContentPresenter x:Name="ExpanderContent" UseLayoutRounding="{TemplateBinding UseLayoutRounding}">
<ContentPresenter.LayoutTransform>
</ContentPresenter.LayoutTransform>
</ContentPresenter>
</Border>
</Grid>
</Grid>
</Border>
</ControlTemplate>
</Setter.Value>
</Setter>
</Style>
</Grid.Resources>
<!-- StackPanel containing Expander -->
<StackPanel Margin="0,4,0,0" HorizontalAlignment="Center" Orientation="Horizontal">
<!-- Expander with TabBarAnimatedExpanderStyle applied -->
<Expander Panel.ZIndex="120" IsEnabled="{Binding ViewSelectorIsEnabled}" x:Name="viewSelectorSmall" Visibility="Visible" IsExpanded="True" Style="{StaticResource TabBarAnimatedExpanderStyle}">
<!-- Expander content -->
<UniformGrid Rows="1">
<!-- Buttons -->
<Button Content="1st button" Background="Transparent" BorderThickness="0" BorderBrush="Transparent" HorizontalContentAlignment="Center" HorizontalAlignment="Center" Padding="8,0,8,0" Margin="0"/>
<Button Content="2nd button" Background="Transparent" BorderThickness="0" BorderBrush="Transparent" HorizontalContentAlignment="Center" HorizontalAlignment="Center" Padding="8,0,8,0" Margin="0"/>
<Button Content="3rd button" Background="Transparent" BorderThickness="0" BorderBrush="Transparent" HorizontalContentAlignment="Center" HorizontalAlignment="Center" Padding="8,0,8,0" Margin="0"/>
</UniformGrid>
</Expander>
</StackPanel>
</Grid> |
|
|
|
This could be related to an incorrect handling of infinite values in UniformGrid that I found, could you please apply the following patch and see if it solves the problems in Intel Macs?
Index: UniformGrid.cpp
--- UniformGrid.cpp (revision 13788)
+++ UniformGrid.cpp (working copy)
@@ -65,8 +65,9 @@
{
CalculateCells();
- Size childSize(availableSize.width / static_cast<float>(mNumColumns),
- availableSize.height / static_cast<float>(mNumRows));
- Size childSize(
- IsInfinity(availableSize.width) ? FLT_INF : availableSize.width / float(mNumColumns),
-
IsInfinity(availableSize.height) ? FLT_INF : availableSize.height / float(mNumRows));
float maxWidth = 0.0f;
float maxHeight = 0.0f;
@@ -96,8 +97,7 @@
////////////////////////////////////////////////////////////////////////////////////////////////////
Size UniformGrid::ArrangeOverride(const Size& finalSize)
{
- Rect childRect(0.0f, 0.0f, finalSize.width / static_cast<float>(mNumColumns),
- finalSize.height / static_cast<float>(mNumRows));
-
Rect childRect(Size(finalSize.width / float(mNumColumns), finalSize.height / float(mNumRows)));
childRect.x += childRect.width * GetFirstColumn();
float lastColumn = finalSize.width - 1.0f;
|
|
|
|
Hej,
Not sure what to do with this code or how to add these changes. we are only working with C#.
Do you have any documentation or guide on how to implement this changes? so I can do it and test it on Mac+Intel? |
|
|
|
Sorry, as your company has access to the source code I thought you were building the runtime library yourselves.
We can generate a patched library for you, could you please indicate what exact version are you using right now? |
|
|
|
We are using v3.2.3 |
|
|
|
Please, download the following hot-fix (you need to replace this new Noesis.dylib with the one you have in your Unity package in /Runtime/Libraries/MacOS)
https://drive.google.com/file/d/11hbmilUTZzEg2db49lG4BhKP2jzkROHl/view?usp=sharing |
|
|
|
Hej,
thank you so much,
I can confirm this fixed the bug. now it looks correct, thank you!
Should I expect this fix on the next release? |
|
|
|
Sure, we solved it in changeset 13848 and will be fixed in 3.2.4 version |
|
