Summary0003451: WrapPanel elements cannot be centered with multiple lines (or columns)
Description

Currently, the behavior of the wrap panel is the same as in WPF. However, it would be a nice addition to be able to center (or right-align) the children of a wrap panel when there are multiple lines.

To succeed, I simply duplicated the WrapPanel class and added a "float offset" argument to the ArrangeLine method. Then I do "Point(x + offset, y)" to arrange the child.
In offset, I send :
(finalSize.width - accumW) * 0.5f => to center the child
(finalSize.width - accumW) => to right-align

As I simply duplicated the current WrapPanel code, maybe it would be better to include this change in the source code directly, in a next version? With a property to enable it or not. It would be great!

Attached Files
PlatformAny

Activities

Demond

Demond

2024-07-03 15:40

reporter   ~0009737

Last edited: 2024-07-03 15:57

Good idea!
https://stackoverflow.com/questions/806777/wpf-how-can-i-center-all-items-in-a-wrappanel

Issue History

Date Modified Username Field Change
2024-07-03 11:16 FrancoisRecisio New Issue

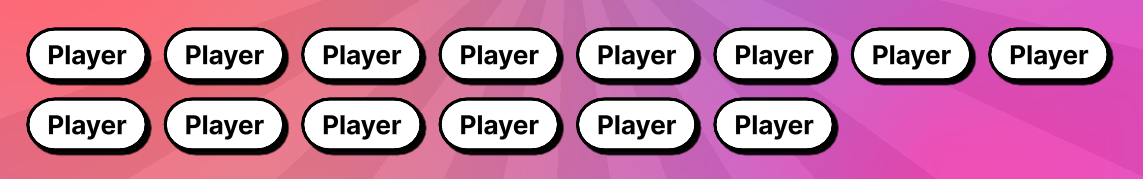

2024-07-03 11:16 FrancoisRecisio File Added: current.png

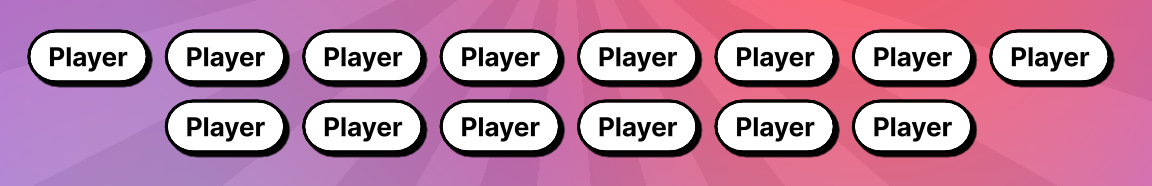

2024-07-03 11:16 FrancoisRecisio File Added: fixed.png
