Target VersionStudio_PathFixed in VersionStudio_Path
Summary0003478: Studio Does Not Render SVG 'Open' Paths
Description

Studio does currently not render non-closed-shape lines (aka 'strokes') exported as SVGs from Illustrator or Affinity Designer.

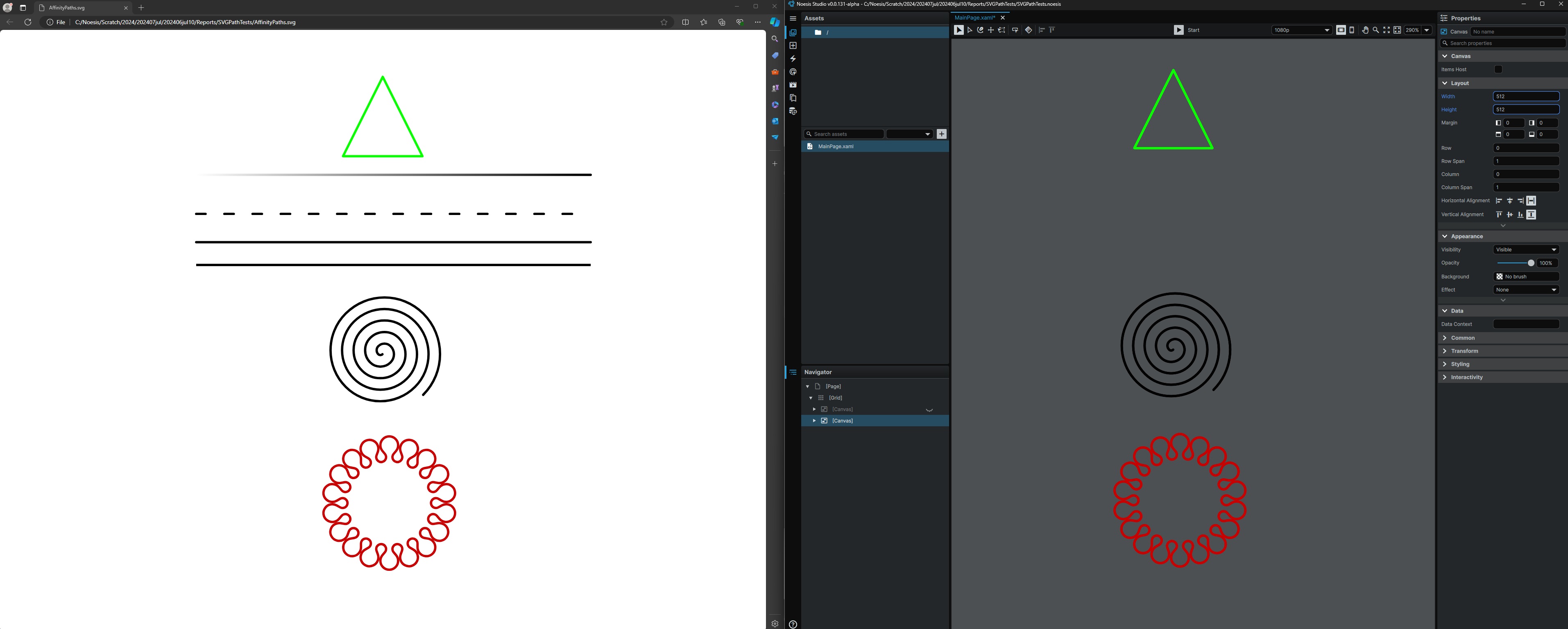

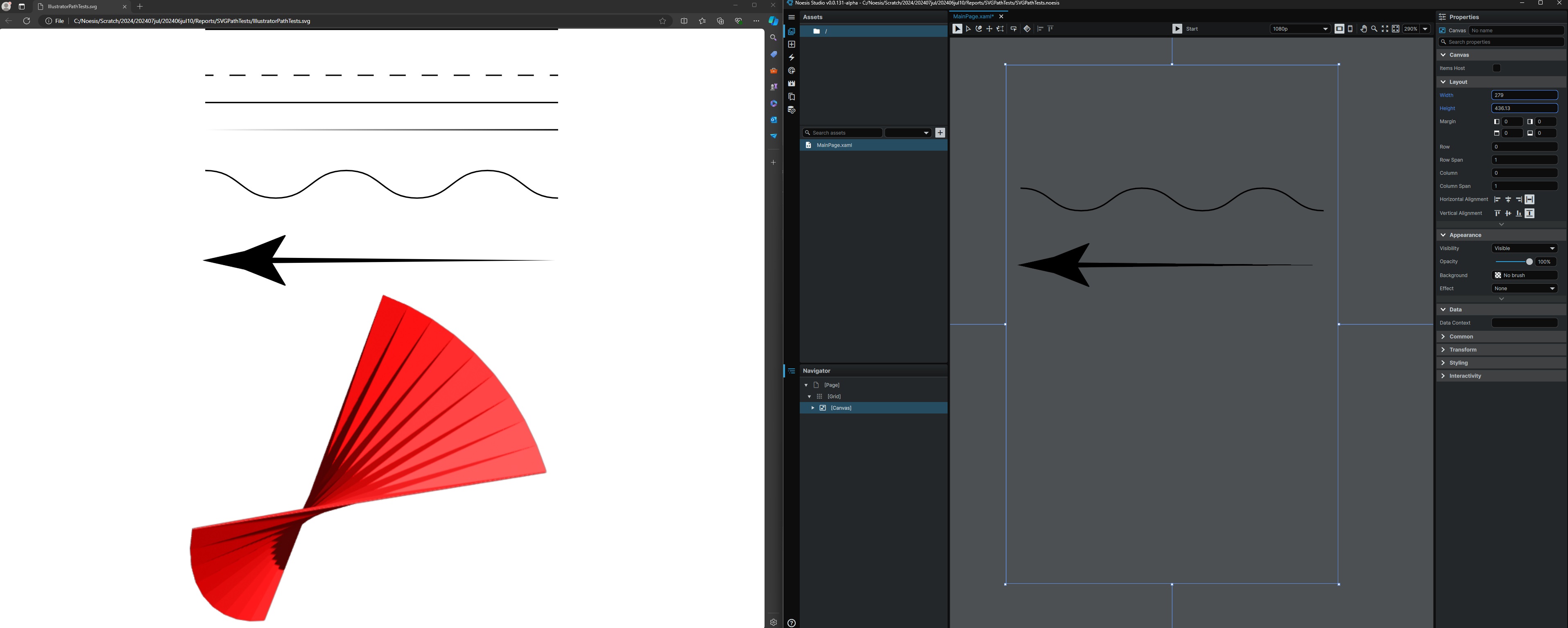

See attached comparison sheets and SVG files.

[!!!] Could be a clue, but note that if the exact same paths are rotated to an angle, they will render properly. [!!!]
[!!!] This appears to be related to Studio applying a height of 0 to any horizontal or vertical paths [!!!]

Steps To Reproduce

Repro Steps:

1) Create a Page
2) Right-Click on the Root Grid, and from the Edit Menu, select "Import SVG"
3) Select one of the attached SVG files, and import it.

Observe how what is rendered does not correspond to the contents of the SVG when viewed within any other SVG viewer.
