Summary0003474: Illustrator-exported SVG not showing gradients correctly
Description

(0.0.130) Gradients done in illustrator are not showing as expected in the Studio.

I'm attaching the test SVG.

Attached Files
BasicFills2.svg (5,184 bytes)
BasicFills2.svg (5,184 bytes)
PlatformAny

Relationships

related to 0003478 resolvedjsantos Studio Does Not Render SVG 'Open' Paths
related to 0003479 resolvedjsantos Studio Does Not Properly Process All Copy-Pasted 'Open' Paths
related to 0003484 resolvedjsantos Dash Decorations are Not Conserved when Bringing Illustrator or Figma Vector Lines Into Studio
related to 0003454 resolvedjsantos Studio Adds Space That Doesn't Exist Around SVG Vector Shapes Featuring Centre-Aligned Strokes

Activities

dstewart

dstewart

2024-07-10 18:31

developer   ~0009793

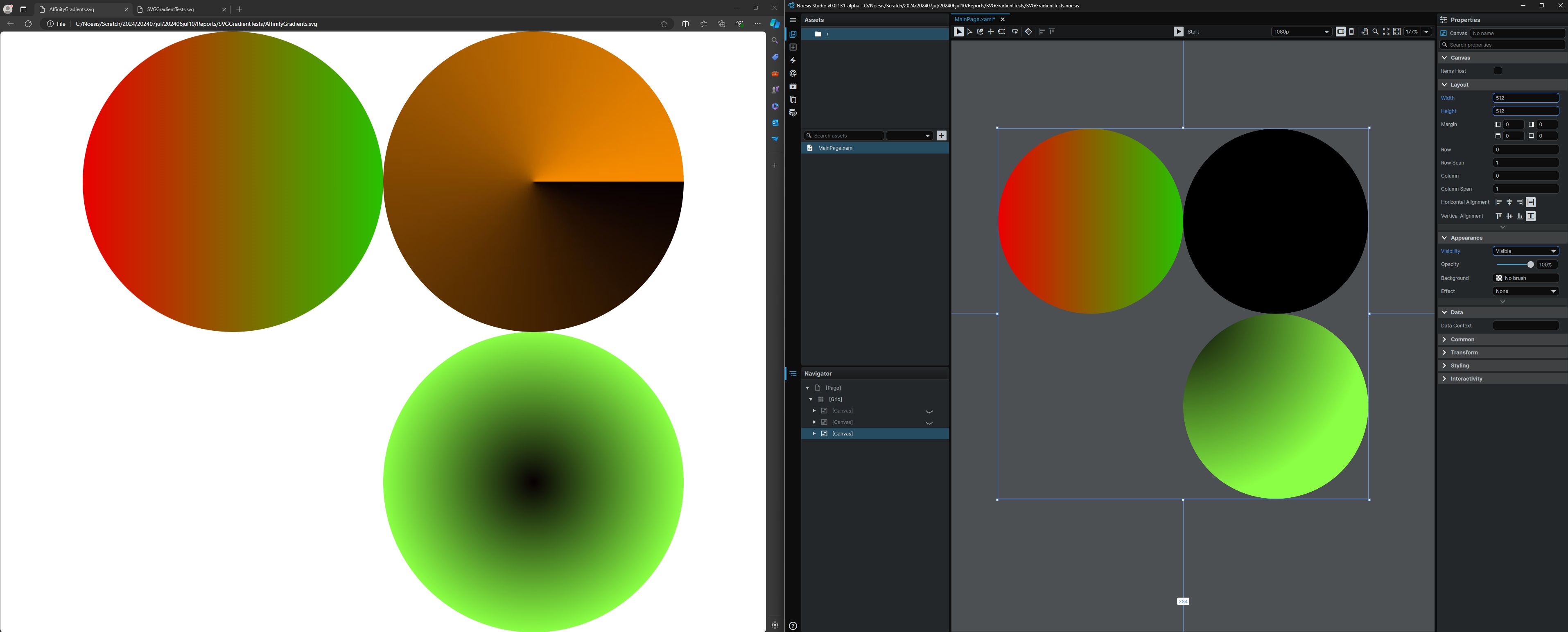

Note that similar occurs importing from Affinity Designer -- however, opposed to Illustrator, Linear Gradients from Affinity Designer do successfully render. (But Spherical and Conical do not)

jsantos

jsantos

2024-07-15 04:04

manager   ~0009810

Dorian, could you attach SVGs that are not working fine?
dstewart

dstewart

2024-07-15 11:04

developer   ~0009811

Hey Jesús! You can find these attached.

AffinityGradients.svg (6,543 bytes)
AffinityGradients.svg (6,543 bytes)
