View Issue Details

IDProjectCategoryView StatusLast Update
0003542NoesisGUIStudiopublic2024-08-12 17:50
Reporterdstewart Assigned Tosfernandez
PrioritynormalSeveritymajor
Status resolvedResolutionduplicate
Product VersionStudio_Path
Target VersionStudio_PathFixed in VersionStudio_Path
Summary0003542: Unable to Cleanly Compound If One Shape is Flipped Horizontally
Description

Currently, there is not really any way to create half of a vector graphic, then to flip it, and to compound it with the other half to make a perfectly symmetrical whole.

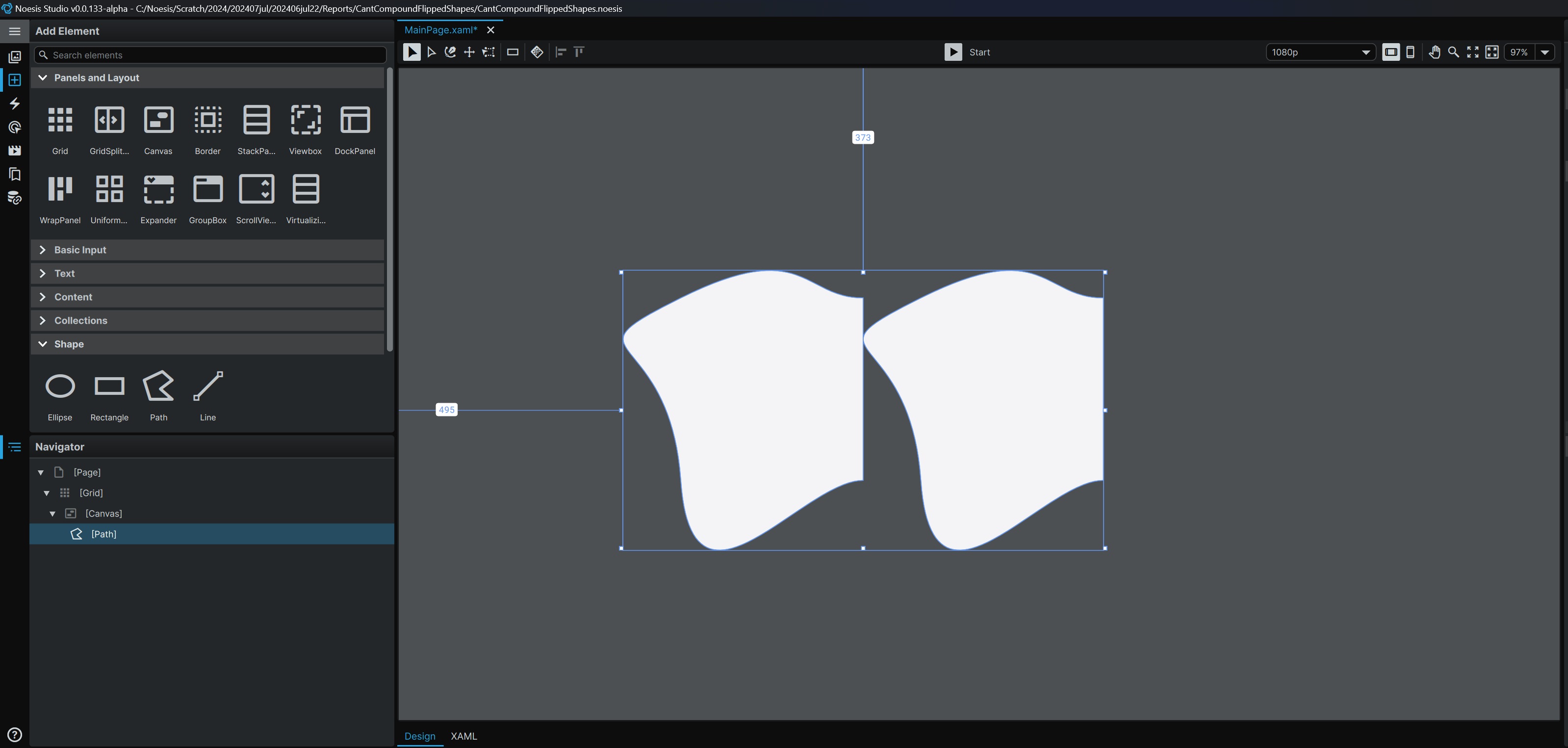

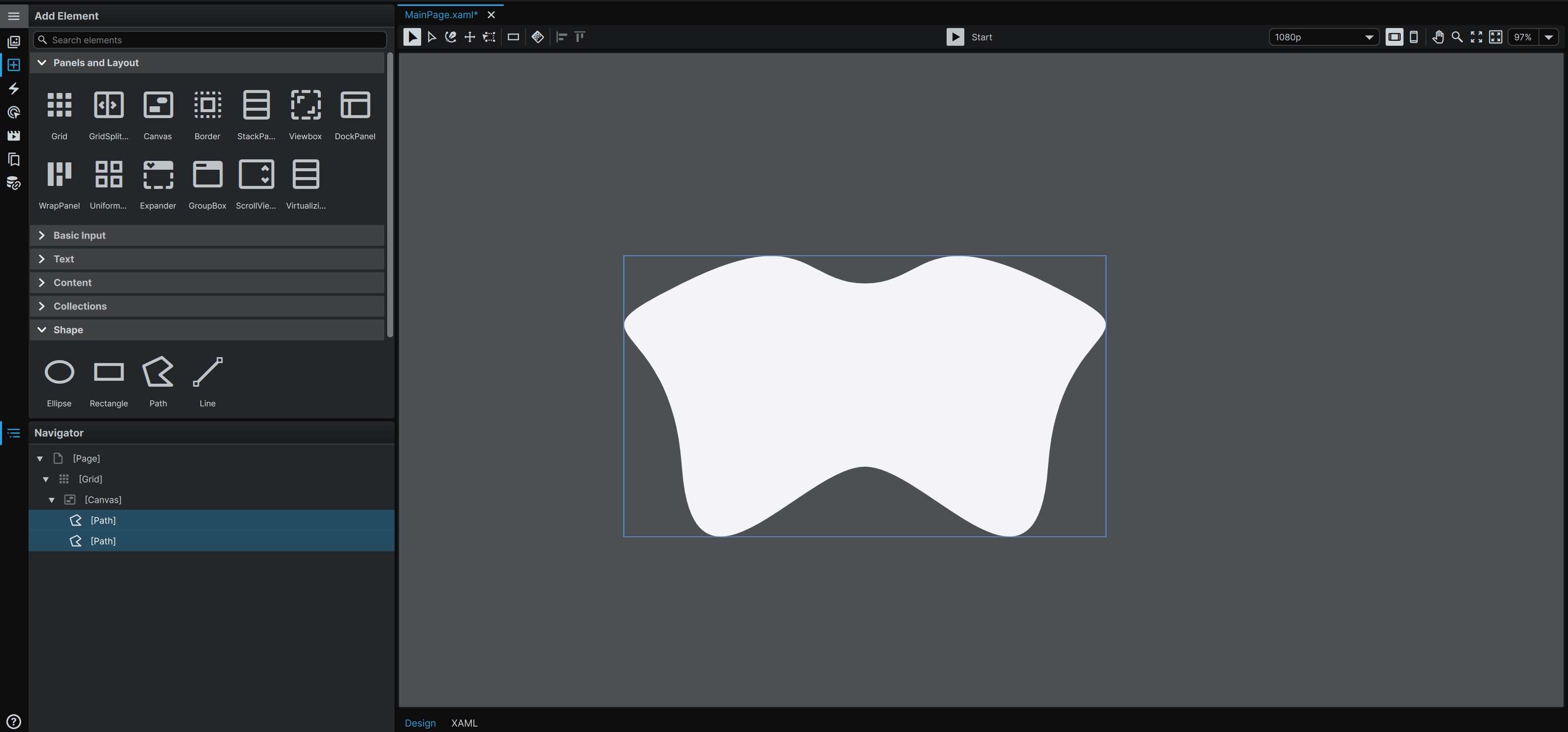

See attached images of a shape before and after its been compounded.

Steps To Reproduce

Repro Steps:

1) Create a Page
2) Introduce a Canvas element to the RootGrid of the Page.
3) Introduce a Rectangle to the Canvas.
4) Remove the Stroke (Clear Local Value, and remove the Thickness (Set Value to '0')
5) Dimension the rectangle to be 256x256
6) Using the Selection Tool (V), click-and-drag the Rectangle so that it is Vertically-Centred in the page (A red guide will appear when snapping to the vertical centre of the parent element)
7) Using the Selection Tool (V), click-and-drag the Rectangle so that its left edge is aligned to the Horizontal center of the parent element (A red guide will appear when snapping the left edge)
8) Right-Click on the Rectangle, and from the 'Path' submenu, select 'Convert to Path'.

9) Select the Path Selection Tool (A), and whilst holding [Ctrl], click-and-drag the two right anchor points of the Rectangle that has been converted to a Path, as to give the two right anchor points a curve. (any curve still is fine)

10) Duplicate the Rectangle by selecting the Path in the Navigator, and pressing [Ctrl+D].
11) With the new duplicate rectangle selected, navigate to the its Properties Panel, and in the Transform/LayoutTransform section, set its Scale X to '-1'.

12) Drag the duplicated and horizontally-rotated Rectangle to the right, and drag it until its right edge is aligned with the original rectangles left edge. This will be appear by a red guide appearing when the two edges meet.

13) From the Navigator, hold [Ctrl] and select both rectangles.

14) With both Rectangles selected, right-click on either of them, and from the 'Path' submenu, select 'Make into Compound Path'.

Observe how the shapes are moved from their set position, and compounded in a different position.

Expected Results: Compounding multiple Path compounds them at their position when the Compound is activated.

Attached Files
PlatformAny

Relationships

duplicate of 0003520 resolvedsfernandez Compound Pathing Doesn't Follow Transformed On-Screen Paths

Activities

dstewart

dstewart

2024-07-22 13:35

developer   ~0009829

I think this is an exact duplicate of 3520. Feel free to delete this one.

dstewart

dstewart

2024-07-22 17:12

developer   ~0009830

Note: This bug is due to using a Layout Transform: This works as intended with a RenderTransform to flip the shape (rather than a LayoutTransform)

Issue History

Date Modified Username Field Change
2024-07-22 13:32 dstewart New Issue
2024-07-22 13:32 dstewart File Added: PostCompound.jpg
2024-07-22 13:32 dstewart File Added: PreCompound.jpg
2024-07-22 13:33 dstewart Relationship added duplicate of 0003520
2024-07-22 13:35 dstewart Note Added: 0009829
2024-07-22 14:16 jsantos Assigned To => sfernandez
2024-07-22 14:16 jsantos Status new => assigned
2024-07-22 14:16 jsantos Target Version => Studio_Path
2024-07-22 17:12 dstewart Note Added: 0009830
2024-08-12 17:50 sfernandez Status assigned => resolved
2024-08-12 17:50 sfernandez Resolution open => duplicate
2024-08-12 17:50 sfernandez Fixed in Version => Studio_Path
