Summary0003734: Blocking interaction in the 3D world
Descriptionhi

As I explained the problem here
https://www.noesisengine.com/forums/viewtopic.php?t=3455

This was the solution for me
https://www.noesisengine.com/bugs/view.php?id=3476#c9787

But I would like to clarify that this is not because I want to use VisualTreeHelper.HitTest

The problem occurs when the noesisGUI uses VisualTreeHelper.HitTest to handle click Events

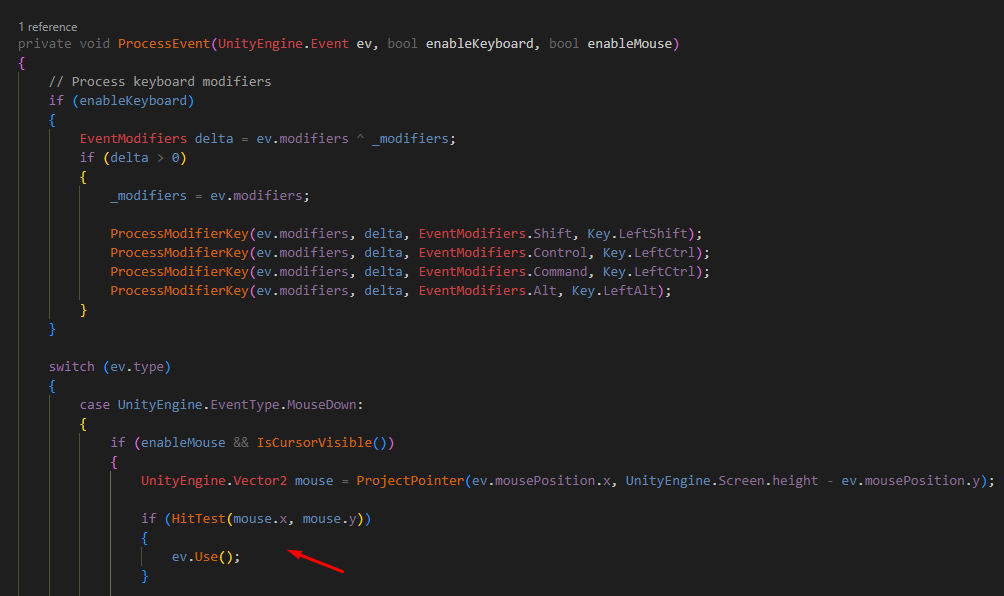

Runtime\NoesisView.cs: "private void ProcessEvent"


In the game when I show, for example, the damage the player received. I do not expect that pressing it will prevent interaction within the game

So there must be additional logic to handle clicks with take account "IsHitTestVisible" true

Since there are developers who use VisualTreeHelper.HitTest as is, to avoid not changing the behavior .. I suggest adding another version of it to deal with click Events events.

Or even add a new setting to override the click event like IsReactable=false with default true To keep the current behavior as it is


In any case, this is important in 3D world games


thank you
Steps To Reproducehttps://www.noesisengine.com/bugs/view.php?id=3476#c9787
https://www.noesisengine.com/bugs/view.php?id=3476#c9787
TagsUnity, worldspaceUI
PlatformAny

Relationships

related to 0003476 resolvedsfernandez WorldSpaceUI Responds to Mouse Enter/Leave But Not Mouse Down

Activities

hendawi

hendawi

2024-10-07 13:04

reporter

sfernandez

sfernandez

2024-10-25 11:40

manager   ~0010056

With this implementation all elements in the UI that are marked with IsHitTestVisible=False will be ignored by Noesis and the mouse events will reach the Scene3D objects.
If you want to use the old behavior just go to NoesisView.cs and comment the define IGNORE_ISHITTESTVISIBLE_FALSE_ELEMENTS at the top of the file
