0004711: Path cap end not applied when trimming the path

ID	Project	Category	View Status	Date Submitted	Last Update

0004711	NoesisGUI	Studio	public	2026-01-19 11:58	2026-02-18 01:15

Reporter	Rafael Munoz	Assigned To	jsantos
Priority	normal	Severity	minor
Status	resolved	Resolution	fixed
Product Version	Studio_Beta
Fixed in Version	3.2.11

Summary	0004711: Path cap end not applied when trimming the path
Description	Repro path: Create a path shape ( it allso reproduces with primitives ) Set a high thickness to observe the stroke Apply a path Trim Start Ensure both Start and End line caps are set to round Expected: Both line ends are round Actual: Only the begin end is round Studio Version: v0.1.262-beta

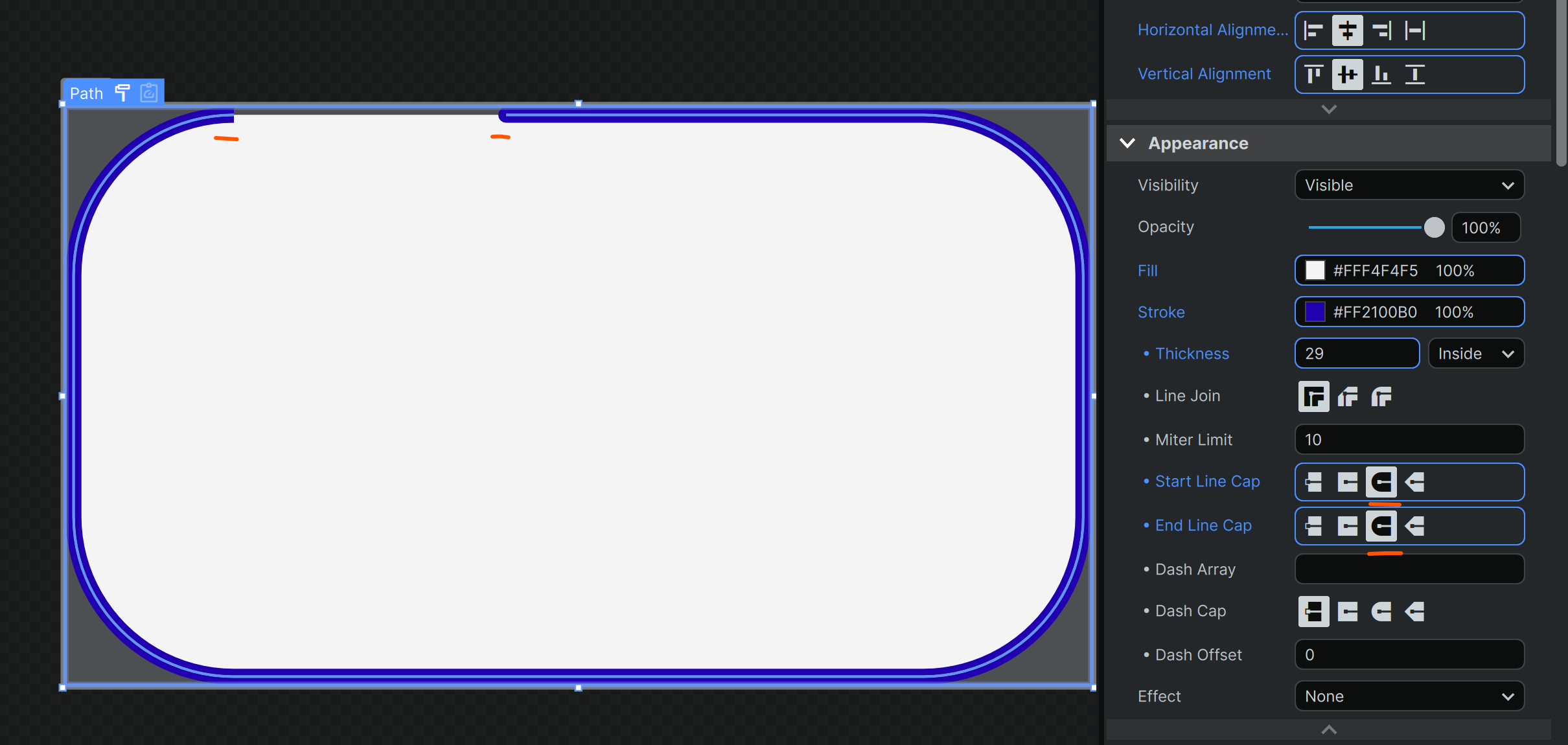

Attached Files	EndLineCapNotAppliedWhenTrimming.png (176,265 bytes) EndLineCapNotAppliedWhenTrimming.png (176,265 bytes)

Platform	Any

Rafael Munoz

2026-01-19 14:18

reporter ~0011703

Last edited: 2026-02-16 21:14

<Page
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
  xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  mc:Ignorable="d"
  d:DesignWidth="1920"
  d:DesignHeight="1080"
  Background="#FF4D5052">
  <Grid>
    <Path Data="M300.5,0.5 1619.5,0.5A300,300 0 011919.5,300.5L1919.5,779.5A300,300 0 011619.5,1079.5L300.5,1079.5A300,300 0 010.5,779.5L0.5,300.5A300,300 0 01300.5,0.5z" Stretch="Fill" Stroke="#FF000000" Fill="#FFF4F4F5" Height="1080" HorizontalAlignment="Center" VerticalAlignment="Center" Width="1920" StrokeThickness="20" TrimStart="0.051" StrokeStartLineCap="Round" StrokeEndLineCap="Round"/>
  </Grid>
</Page>

Date Modified	Username	Field	Change
2026-01-19 11:58	Rafael Munoz	New Issue
2026-01-19 11:58	Rafael Munoz	File Added: EndLineCapNotAppliedWhenTrimming.png
2026-01-19 14:18	Rafael Munoz	Note Added: 0011703
2026-02-16 21:14	jsantos	Note Edited: 0011703
2026-02-16 21:15	jsantos	Assigned To	=> jsantos
2026-02-16 21:15	jsantos	Status	new => assigned
2026-02-16 21:22	jsantos	Relationship added	related to 0004646
2026-02-18 01:15	jsantos	Status	assigned => resolved
2026-02-18 01:15	jsantos	Resolution	open => fixed
2026-02-18 01:15	jsantos	Fixed in Version	=> 3.2.11
