Hello,
I only follow up on this after some experimentations. I ended up with something that kind of work if I edit using xaml (see screenshot_6) but surely something is not set up properly as Noesis studio doesn't allow me to do the same thing that the bulletDecorator does :

• I do not have a drop down when one of the MenuLayout is empty (to add a Grid or a Border as container).
• Some properties look duplicated in the Navigation tab (see screenshot)

I have attached a cleaned up class + default style of what I have been using for those screenshots.
I hope this is an error on my end because getting this to work would be a great help for making menu implementation faster for designers.

I'm not seeing the supposed attached images and code, did you get any error trying to submit them?
Maybe you can add them in a google drive link or something similar.

Hi, It should be quite small (I did have them in separate file but I have now attached a single zip with the class and screenshot for a total of 200kb.)

We'll investigate the duplication of those navigator properties.

In order to show a drop down selector for the property editor, like in the BulletDecorator, you should define the property as Ptr<UIElement>, assuming you want it to contain only UIElements and it won't support a string or any other boxed value. Could you try that?

Hi Sergio,
It looks like UIElement is one part of the solution as now the dropdown works. but there is still some issues with it :

• the duplication still is happening
• if I add something inside the footer it doesn't always appear in the navigator.
• I changed the type of the content of the Header from Grid to Button but the change wasn't updated in the Navigator.

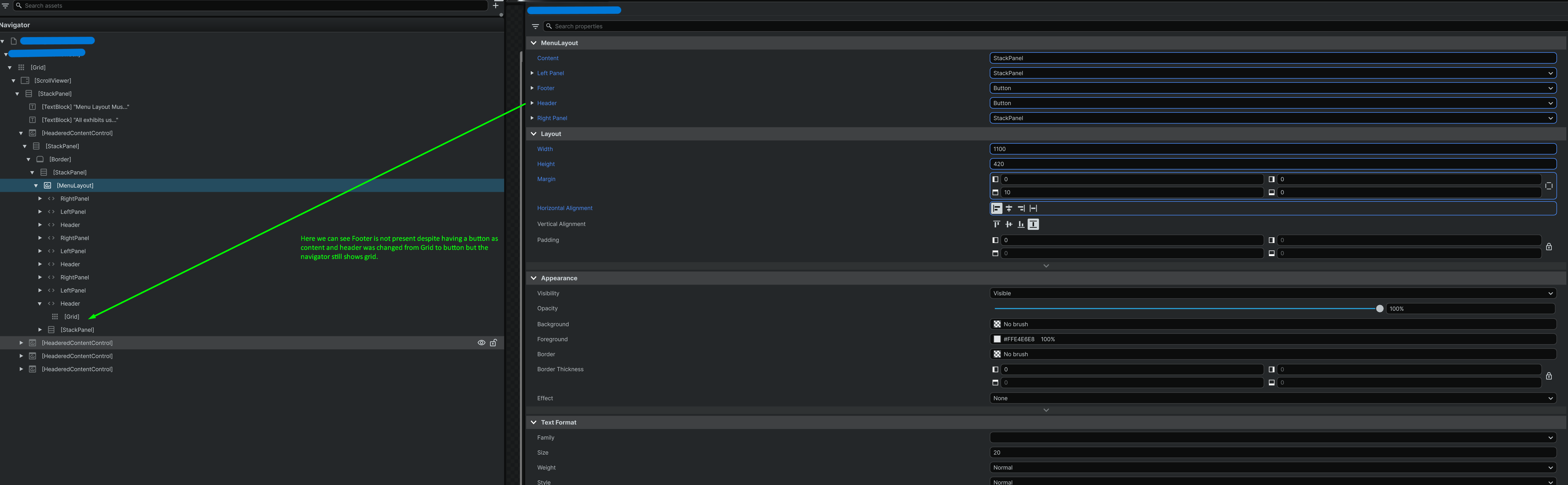

  I have made a screenshot attached to show the issue

I fixed in changeset r17109 an issue we had when the property was defined as a DependencyProperty, and also using NsProp (reflection property) to specify the Studio metadata.

This should fix the following problems:

• properties appearing duplicated sometimes
• changes made to the properties in the Properties panel not updating the Navigator (until document is closed and reopened again).
