View Issue Details

IDProjectCategoryView StatusLast Update
0005204NoesisGUIStudiopublic2026-09-10 22:24
ReporterJinFox Assigned Tosfernandez
PrioritynormalSeveritymajor
Status assignedResolutionopen
Product Version4.0
Target Version4.0.1
Summary0005204: InlineUIContainer fails to preserve the size of their content when updating Foreground property after initial render
Description

Hello,

I found an issue when using Rich Text and was able to reproduce it with a simple example :
When changing the Foreground property of a textblock in a trigger, so after the initial render, the size of the inline UI container gets collapsed to 0 and is no longer allowing the element to be inserted cleanly into the line.

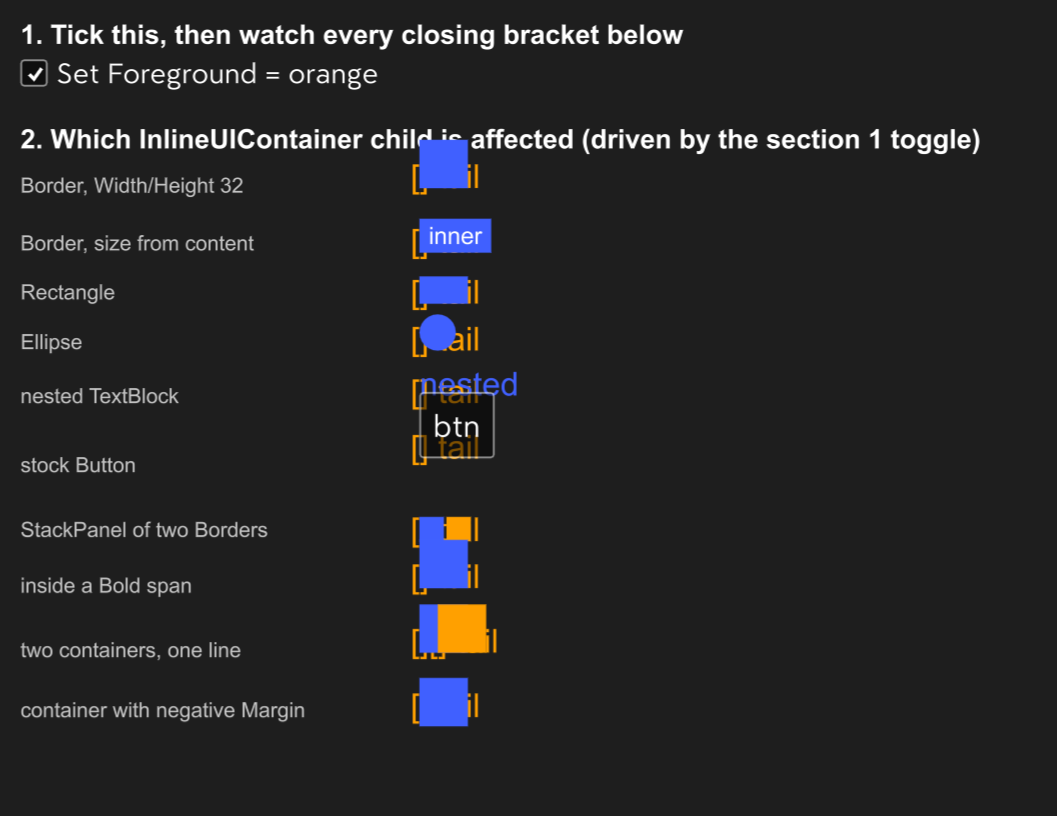

Please see attached image for symptoms and the linked xaml for repro.

Attached Files
NoesisInlineUIContainerRepro.xaml (6,637 bytes)
<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  Background="#FF1E1E1E">

  <Grid.Resources>

    <SolidColorBrush x:Key="Brush.Base" Color="#FFFFFFFF" />
    <SolidColorBrush x:Key="Brush.Alt" Color="#FFFFA000" />
    <SolidColorBrush x:Key="Brush.Marker" Color="#FF4060FF" />

    <Style x:Key="Style.Heading" TargetType="TextBlock">
      <Setter Property="FontSize" Value="18" />
      <Setter Property="FontWeight" Value="Bold" />
      <Setter Property="Foreground" Value="#FFFFFFFF" />
      <Setter Property="Margin" Value="0,18,0,2" />
    </Style>
    <Style x:Key="Style.RowLabel" TargetType="TextBlock">
      <Setter Property="Width" Value="260" />
      <Setter Property="FontSize" Value="14" />
      <Setter Property="Foreground" Value="#FFC8C8C8" />
      <Setter Property="VerticalAlignment" Value="Center" />
    </Style>

    <Style x:Key="Style.Row" TargetType="StackPanel">
      <Setter Property="Orientation" Value="Horizontal" />
      <Setter Property="Margin" Value="0,0,0,6" />
    </Style>

    <Style x:Key="Style.Sample" TargetType="TextBlock">
      <Setter Property="FontSize" Value="22" />
      <Setter Property="Foreground" Value="{StaticResource Brush.Base}" />
      <Setter Property="VerticalAlignment" Value="Center" />
      <Style.Triggers>
        <DataTrigger Binding="{Binding IsChecked, ElementName=ToggleForeground}" Value="True">
          <Setter Property="Foreground" Value="{StaticResource Brush.Alt}" />
        </DataTrigger>
      </Style.Triggers>
    </Style>
  </Grid.Resources>

  <ScrollViewer HorizontalScrollBarVisibility="Disabled" Padding="16" FontFamily="Arial">
    <StackPanel Orientation="Vertical">

      <!-- ==================== 1. The switch ==================== -->
      <TextBlock Style="{StaticResource Style.Heading}" Margin="0,0,0,2"
                 Text="1. Tick this, then watch every closing bracket below" />
      <CheckBox x:Name="ToggleForeground" Content="Set Foreground = orange"
                Foreground="#FFFFFFFF" Margin="0,0,0,4" />

      <!-- ==================== 2. Which child type is affected ==================== -->
      <TextBlock Text="2. Which InlineUIContainer child is affected (driven by the section 1 toggle)" Style="{StaticResource Style.Heading}"/>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="Border, Width/Height 32" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><Border Width="32" Height="32" Background="{StaticResource Brush.Marker}" /></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="Border, size from content" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><Border Background="{StaticResource Brush.Marker}" Padding="6,2"><TextBlock Text="inner" FontSize="16" Foreground="#FFFFFFFF" /></Border></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="Rectangle" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><Rectangle Width="32" Height="18" Fill="{StaticResource Brush.Marker}" /></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="Ellipse" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><Ellipse Width="24" Height="24" Fill="{StaticResource Brush.Marker}" /></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="nested TextBlock" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><TextBlock Text="nested" FontSize="22" Foreground="{StaticResource Brush.Marker}" /></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="stock Button" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><Button Content="btn" /></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="StackPanel of two Borders" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><StackPanel Orientation="Horizontal"><Border Width="16" Height="16" Background="{StaticResource Brush.Marker}" /><Border Width="16" Height="16" Background="{StaticResource Brush.Alt}" Margin="2,0,0,0" /></StackPanel></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="inside a Bold span" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><Bold><InlineUIContainer><Border Width="32" Height="32" Background="{StaticResource Brush.Marker}" /></InlineUIContainer></Bold><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="two containers, one line" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><Border Width="32" Height="32" Background="{StaticResource Brush.Marker}" /></InlineUIContainer><Run Text="][" /><InlineUIContainer><Border Width="32" Height="32" Background="{StaticResource Brush.Alt}" /></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <StackPanel Style="{StaticResource Style.Row}">
        <TextBlock Style="{StaticResource Style.RowLabel}" Text="container with negative Margin" />
        <TextBlock Style="{StaticResource Style.Sample}"><Run Text="[" /><InlineUIContainer><Border Width="32" Height="32" Background="{StaticResource Brush.Marker}" Margin="0,0,0,-6" /></InlineUIContainer><Run Text="] tail" /></TextBlock>
      </StackPanel>

      <!-- ==================== 4. Text-only controls ==================== -->

    </StackPanel>
  </ScrollViewer>
</Grid>
PlatformAny

Activities

Issue History

Date Modified Username Field Change
2026-09-10 13:20 JinFox New Issue
2026-09-10 13:20 JinFox File Added: NoesisInlineUIContainerRepro.xaml
2026-09-10 13:20 JinFox File Added: image.png
2026-09-10 22:24 jsantos Assigned To => sfernandez
2026-09-10 22:24 jsantos Status new => assigned
2026-09-10 22:24 jsantos Target Version => 4.0.1
