View Issue Details

IDProjectCategoryView StatusLast Update
0005295NoesisGUIStudiopublic2026-10-28 16:03
Reporterdstewart Assigned Tosfernandez
PrioritynormalSeverityminor
Status assignedResolutionopen
Product Version4.0
Target Version4.0.2
Summary0005295: LineDecoration Behavior 'Dash Style' Property Offers No Options
Description

Currently, we offer a LineDecoration Behavior which allows lines to be attached to TextBlock Elements.

Among the customization Properties offered under its 'Pen' sub-properties, is the Property to make the line a 'Dashed' line.

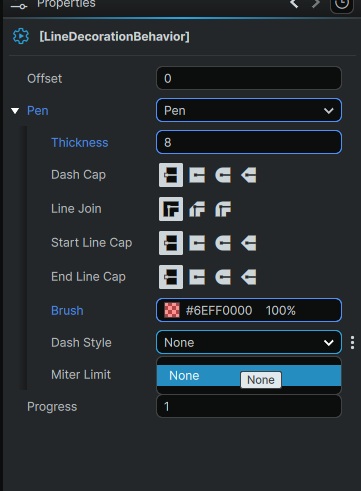

However, when the 'Dash Style' Dropwdown is opened, it only offers an option of 'None'.

See attached image.


Repro Steps:

1) Create a Studio Project featuring a MainPage.xaml

2) Introduce a nice and large TextBlock to the Page.

3) Navigate to the Interactivity/Behaviors Panel, select the TextBlock, and attach a LineDecoration Behavior to it.

4) Select the new LineDecoration Behavior to display its Properties in the Properties Panel, and set its Properties to: Pen: Pen | Pen Thickness: 64

5) Under the Behavior's 'Pen' sub-Properties click on the dropdown for 'Dash Style'
Observe how no options other than 'none' can be selected.

Expected Results: The 'Dash Style' Pen sub-Property offers an option for its value.
OR
Expected Results: If we offer no options for 'Dash Style', the Property is not displayed in the Behavior's 'Pen' sub-Properties.

Attached Files
PlatformAny

Relationships

related to 0005301 assignedsfernandez LineDecoration Behavior 'Progress' Property Driven By Mismatching Increments

Activities

Issue History

Date Modified Username Field Change
2026-10-28 11:34 dstewart New Issue
2026-10-28 11:34 dstewart File Added: LineDecorationDashStyle.jpg
2026-10-28 15:59 sfernandez Assigned To => sfernandez
2026-10-28 15:59 sfernandez Status new => assigned
2026-10-28 15:59 sfernandez Target Version => 4.0.2
2026-10-28 16:03 sfernandez Relationship added related to 0005301
