Summary0001291: Textures rendering issues (unexplainable seams)
DescriptionHi guys,

the problem is presented in the attached screenshots:
screenshot #1 - how it looks in our game (when each rectangle has a 40x40 pixels simple white texture)
screenshot #2 - the issue is more obvious and perhaps give you some ideas... (I'm using an image #4 (TestWhiteRect) as a Texture Brush)
screenshot #3 - I've replaced texture brush everywhere with Brushes.White

As you can see the background visible through seams between rectangle elements:
1. But there are should be no seams. I've tried assigning Brushes.White instead of my texture brush and indeed there are no seams! So this is related to how you render textures, not the positioning/render meshing of the rectangles.
2. I've verified that it's the background permeating in seams (as I tried a different color for the background element and can see this color permeating).
3. The issue is visible even if zoom-in (with transform, very closely). It's still a small seam between elements. UPD. See my comment below!
4. RenderOptions.SetBitmapScalingMode(rectangle, BitmapScalingMode.NearestNeighbor) disables linear texture filtering but the issue still appears (all the screenshots with seams are made with the NearestNeighbor mode).
5. UseLayoutRounding is false for every rectangle and their parent panel control (which is a canvas).

I think it might be related to how you perform UV mapping or wrapping mode/bordering mode during texture rendering... however I'm really not sure how a semi-transparent pixel might appear in that case.

Regards!
TagsNo tags attached.
PlatformAny

Relationships

related to 0000916 assignedjsantos Black lines between elements in Canvas

Activities

ai_enabled

ai_enabled

2018-04-17 15:43

updater

ai_enabled

ai_enabled

2018-04-17 15:55

updater   ~0005192

Though to consider - the size of seam is independent from the zoom (which is performed using ScaleTransform) and always about 1 device pixel. See the attached screenshot (remember that visible magenta rectangle is formed by four neighboring magenta pixels of the test texture (image #4 above)).

jsantos

jsantos

2018-04-18 19:37

manager   ~0005193

Thanks for all this information! Could you also please attach a frame snapshot using the D3D frame debugger? (visual studio -> Debug -> Graphics -> Start Graphics Debugging)
jsantos

jsantos

2018-06-01 22:33

manager   ~0005207

Thanks for the debug session!

And congrats for the momentum you are talking about. You deserve it!
ai_enabled

ai_enabled

2020-12-04 01:13

updater   ~0006860

Last edited: 2020-12-04 01:13

View 2 revisions

I still wonder what's causing this issue when using a texture brush yet it's not reproducible with a solid color brush.

sfernandez

sfernandez

2020-12-04 12:01

manager   ~0006861

Last edited: 2020-12-04 12:02

View 2 revisions

This problem can also be reproduced in WPF and the source of it is that contiguous rectangles don't share the same vertices, so imprecisions can leave small holes between them letting the background be visible sometimes (you can resize the window and holes appear and disappear).
<Grid
  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  UseLayoutRounding="False"
  Background="Black">
  <Grid.Resources>
    <ImageSource x:Key="whiteImg">white.png</ImageSource>
    <ImageBrush x:Key="whiteImgBrush" ImageSource="{StaticResource whiteImg}" Stretch="None" TileMode="FlipXY"/>
  </Grid.Resources>
  <Canvas Width="400" Height="400">
    <Canvas.RenderTransform>
      <TranslateTransform X="0.5" Y="0.5"/>
    </Canvas.RenderTransform>
    <Rectangle Canvas.Left="000" Canvas.Top="000" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="100" Canvas.Top="000" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="200" Canvas.Top="000" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="300" Canvas.Top="000" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="000" Canvas.Top="100" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="100" Canvas.Top="100" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="200" Canvas.Top="100" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="300" Canvas.Top="100" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="000" Canvas.Top="200" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="100" Canvas.Top="200" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="200" Canvas.Top="200" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="300" Canvas.Top="200" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="000" Canvas.Top="300" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="100" Canvas.Top="300" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="200" Canvas.Top="300" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
    <Rectangle Canvas.Left="300" Canvas.Top="300" Width="100" Height="100" Fill="{StaticResource whiteImgBrush}"/>
  </Canvas>
</Grid>

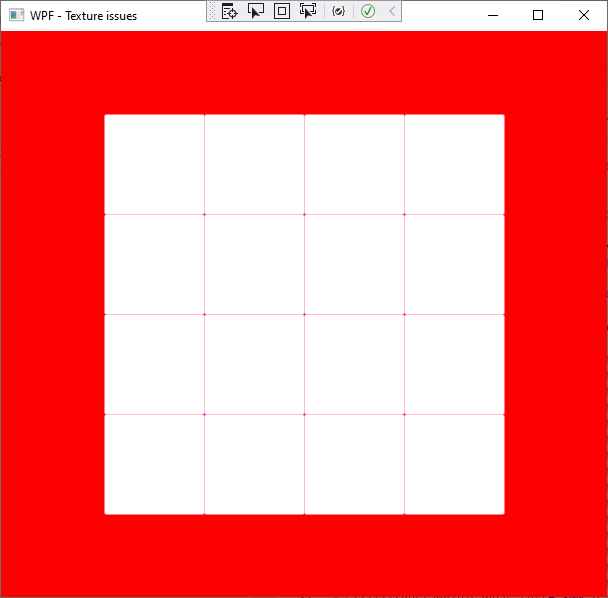

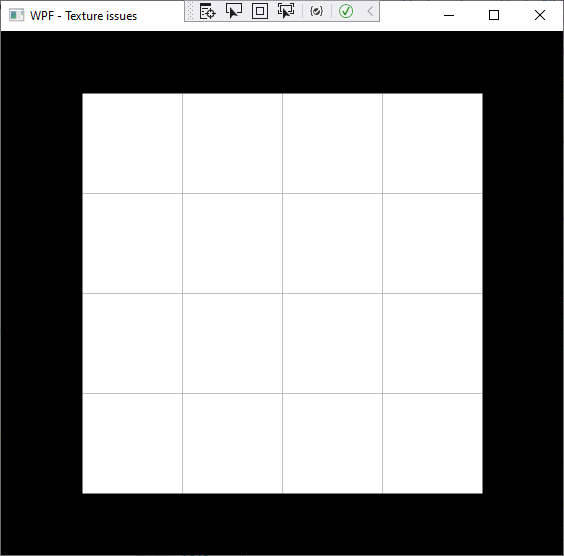

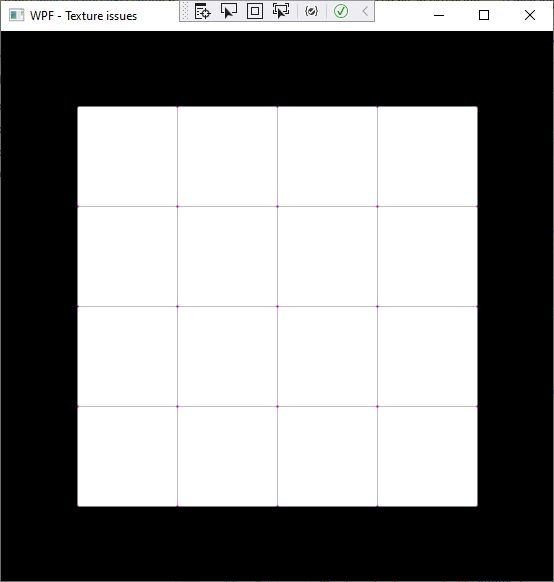

You can see the attached images produced by that xaml in Blend. The last one is using a SolidColorBrush, so you can see it is not a problem with textures.

The only way to avoid those holes is by using a single mesh (Rectangle) and tile the texture.



ai_enabled

ai_enabled

2020-12-05 01:28

updater   ~0006871

Last edited: 2020-12-05 01:29

View 2 revisions

Hi Sergio,
thank you for your response and time spent to make a sample. I've totally forgotten that WPF exists when reported this! :-)

That's what I've suspected based on my previous experience by rending tiled terrain in CryoFall. After that, we've switched to a shader-based approach to draw a properly tiled terrain.

I was surprised I cannot see the seams when rendering tiles with SolidColorBrush though...In WPF there are indeed seams in either case.

I'm reworking the map to use large chunks with render textures, and will add a coordinate grid to hide the stitches! :-)
Please close this ticket.

Regards!
