Summary0000916: Black lines between elements in Canvas
Description

When using either a Rectangle or Border to display elements from a collection within a Canvas black lines appear between the elements even if the elements are next to each other.

Steps To Reproduce

<Style x:Key="MapView_Style" TargetType="{x:Type ItemsControl}">
<Style.Resources>
<GainConverter x:Key="GainConverter" />
</Style.Resources>
<Setter Property="ItemsPanel" >
<Setter.Value>
<ItemsPanelTemplate>
<Canvas ClipToBounds="False" Margin="0,0,0,0" UseLayoutRounding="False">
</Canvas>
</ItemsPanelTemplate>
</Setter.Value>
</Setter>
<Setter Property="ItemTemplate" >
<Setter.Value>
<DataTemplate>
Width}" Height="{Binding Height}" UseLayoutRounding="False" Margin="0"/>

                    <Rectangle  Width="{Binding Width}" Height="{Binding Height}" UseLayoutRounding="False" Margin="0">
                        <Rectangle.Fill>
                              <ImageBrush ImageSource="{Binding TextureSource}" Stretch="Fill"/>
                              <ImageBrush ImageSource="cpps.jpg" Stretch="Fill" />
                        </Rectangle.Fill>
                    </Rectangle>

            </DataTemplate>
        </Setter.Value>
    </Setter>
    <Setter Property="ItemContainerStyle" >
        <Setter.Value>
            <Style>
                <!-- <Setter Property="Canvas.Left" Value="{Binding Path=X1, Converter={StaticResource GainConverter}, ConverterParameter=1}"/>
                <Setter Property="Canvas.Top" Value="{Binding Path=Y2, Converter={StaticResource GainConverter}, ConverterParameter=-1}"/> -->
                <Setter Property="Canvas.Left" Value="{Binding Path=X1}"/>
                <Setter Property="Canvas.Top" Value="{Binding Path=Y2, Converter={StaticResource GainConverter}, ConverterParameter=-1}"/>
                <!-- <Setter Property="UseLayoutRounding" Value="False"/> -->
            </Style>
        </Setter.Value>
    </Setter>
</Style>
Attached Files
PlatformAny

Relationships

related to 0001291 resolvedsfernandez Textures rendering issues (unexplainable seams)

Activities

stonstad

stonstad

2019-03-06 18:30

reporter   ~0005505

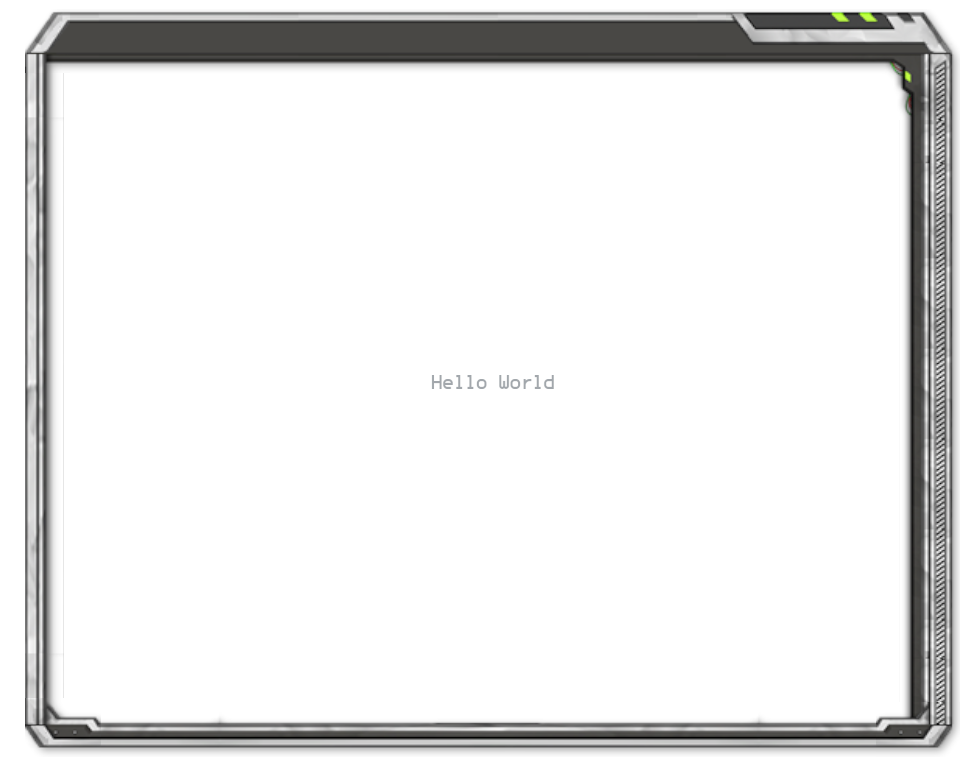

Example of similar behavior using an ImageBrush. The thinking around this is that tiled image pixels are wrapping along the x-axis, despite a 1:1 correspondence between rectangle width and source image width.

Sample.zip (49,479 bytes)
nokola

nokola

2019-03-07 03:21

reporter   ~0005509

I have noticed similar issue, reproduces only on iPhone X for me
jsantos

jsantos

2019-03-07 17:16

manager   ~0005512

Last edited: 2019-03-07 17:23

This is a different issue. I am able to reproduce the same behavior in WPF. Changing the TileMode to None makes the line disappear although that's not a valid solution...
ai_enabled

ai_enabled

2023-07-05 01:11

updater   ~0008585

I also have the same issue (also using 9-patch image approach so it can be stretched in any direction to fit the contents). Please see the screenshot (the issue is a thin orange line above each of the two buttons) https://drive.google.com/file/d/1v3x_0bZNeprDaMQqohpE6y5w2-apLdeX/view?usp=sharing

Is there any workaround?

I wish we can just disable the texture wrapping in one direction—perhaps you can add a NoesisGUI XAML extension for this purpose? Something like this:



noesis:TextureWrapDirection="WrapU"

with the options: WrapU/WrapV/WrapUV

Regards!

P.S. Cannot attach a file due to "Server responded with 0 code" when I submit the message.
jsantos

jsantos

2023-07-06 11:37

manager   ~0008590

Vladimir, could you attach a minimal XAML reproducing the issue for your scenario?

I will revisit this again as soon as possible.
ai_enabled

ai_enabled

2023-07-26 00:44

updater   ~0008610

Last edited: 2023-08-03 04:07

Hi Jesús,
please see the attached sample WPF app.
Using "UseLayoutRounding" makes the issue much less apparent in WPF, but it's still highly noticeable in NoesisGUI even with this setting enabled (and the issue is getting much worse when MSAA is disabled).

The long horizontal line on top and bottom of the button is caused by the texture wrapping around. Hence I've suggested an extension property to restrict texture wrapping ("clamp" render mode). As a workaround for these horizontal lines I'm using RenderOptions.BitmapScalingMode="NearestNeighbor" and simply stretching the texture instead of tiling it (this way wrapping never happens). It's not a good solution but better than seeing these odd lines caused by wrapping.

Regards!

WpfApp9PatchImage.7z (42,845 bytes)
