View Issue Details

IDProjectCategoryView StatusLast Update
0001811NoesisGUIUnity3Dpublic2021-05-07 10:31
ReporterNitae Assigned Tojsantos
PrioritynormalSeverityfeatureReproducibilityalways
Status resolvedResolutionfixed
Product Version3.0.1
Target Version3.0.7Fixed in Version3.0.7
Summary0001811: using Render texture mode with HDRP causes render overlap in viewport an rewrite in other render textures

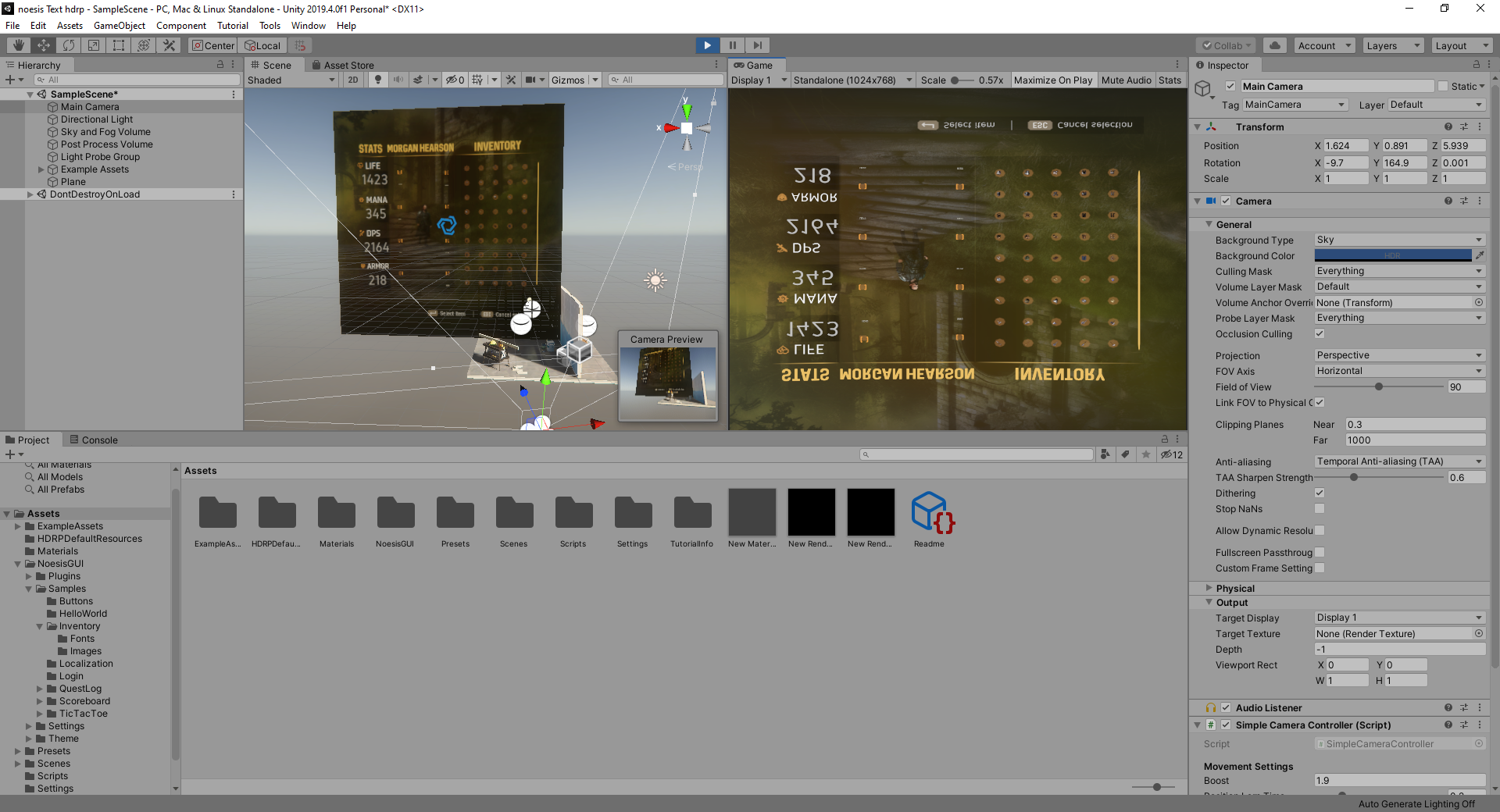

Descriptionhi, I'm Nitae I work for Foresight Sports. I found troubles with noesis view using unity HDRP, when i use noesis view in render texture mode thge render overlap the viewport a somethimes rewrite other render textures. Iam using Unity 2019.4.0f1 and noesis 3.0.1 tested in noesis 3.0.6 and the same happends.
TagsNo tags attached.
PlatformAny

Relationships

related to 0001826 resolvedjsantos HDRP render texture overlap / stacked cameras not rendering

Activities

Nitae

Nitae

2020-10-15 22:48

reporter

jsantos

jsantos

2020-10-16 11:49

manager   ~0006684

Hi Nitae!

Could you please attach a minimal (as much as possible) unity project reproducing the issue?
Nitae

Nitae

2020-10-16 16:29

reporter   ~0006685

Here is a project reproducing the issue the scene name is Main
https://drive.google.com/file/d/1nmzUH-oVq2-TCpx-LXF7W05UYsA173jW/view?usp=sharing
jsantos

jsantos

2020-10-20 17:41

manager   ~0006698

Thank you, I was able to reproduce the issue. I am working on it.
jsantos

jsantos

2020-10-21 12:32

manager   ~0006699

Please, find attached the fixed NoesisView solving the issue. This will be part of the imminent 3.0.7 release.
NoesisView.cs (45,809 bytes)
using UnityEngine;
using Noesis;
using System;
using System.Collections;
using System.Collections.Generic;
using System.Runtime.InteropServices;
using UnityEngine.Rendering;

//[ExecuteInEditMode]
[AddComponentMenu("NoesisGUI/Noesis View")]
[HelpURL("https://www.noesisengine.com/docs")]
[DisallowMultipleComponent]
public class NoesisView: MonoBehaviour, ISerializationCallbackReceiver
{
    #region Public properties

    /// <summary>
    /// User interface definition XAML
    /// </summary>
    public NoesisXaml Xaml
    {
        set { this._xaml = value; }
        get { return this._xaml; }
    }

    /// <summary>
    /// The texture to render this View into
    /// </summary>
    public RenderTexture Texture
    {
        set { this._texture = value; }
        get { return this._texture; }
    }

    /// <summary>
    /// Tessellation curve tolerance in screen space. 'Medium Quality' is usually fine for PPAA (non-multisampled)
    /// while 'High Quality' is the recommended pixel error if you are rendering to a 8x multisampled surface
    /// </summary>
    public float TessellationMaxPixelError
    {
        set
        {
            if (_uiView != null)
            {
                _uiView.SetTessellationMaxPixelError(value);
            }

            this._tessellationMaxPixelError = value;
        }

        get
        {
            if (_uiView != null)
            {
                return _uiView.GetTessellationMaxPixelError().Error;
            }

            return this._tessellationMaxPixelError;
        }
    }

    /// <summary>
    /// Bit flags used for debug rendering purposes.
    /// </summary>
    public RenderFlags RenderFlags
    {
        set
        {
            if (_uiView != null)
            {
                _uiView.SetFlags(value);
            }

            this._renderFlags = value;
        }
        get
        {
            if (_uiView != null)
            {
                return _uiView.GetFlags();
            }

            return this._renderFlags;
        }
    }

    /// <summary>
    /// When continuous rendering is disabled, rendering only happens when UI changes. For performance
    /// purposes and to save battery this is the default mode when rendering to texture. If not rendering
    /// to texture, this property is ignored. Use the property 'NeedsRendering' instead.
    /// </summary>
    public bool ContinuousRendering
    {
        set { this._continuousRendering = value; }
        get { return this._continuousRendering; }
    }

    /// <summary>
    /// After LateUpdate() has been invoked this flag indicates if the GUI needs to be repainted.
    /// This flag can be used on manually painted cameras to optimize performance and save battery.
    /// </summary>
    public bool NeedsRendering
    {
        set { this._needsRendering = value; }
        get { return this._needsRendering; }
    }

    /// <summary>
    /// Enables keyboard input management.
    /// </summary>
    public bool EnableKeyboard
    {
        set { this._enableKeyboard = value; }
        get { return this._enableKeyboard; }
    }

    /// <summary>
    /// Enables mouse input management.
    /// </summary>
    public bool EnableMouse
    {
        set { this._enableMouse = value; }
        get { return this._enableMouse; }
    }

    /// <summary>
    /// Enables touch input management.
    /// </summary>
    public bool EnableTouch
    {
        set { this._enableTouch = value; }
        get { return this._enableTouch; }
    }

    /// <summary>
    /// Enables gamepad input management.
    /// </summary>
    public bool EnableGamepad
    {
        set { this._enableGamepad = value; }
        get { return this._enableGamepad; }
    }

    /// <summary>
    /// Emulate touch input with mouse.
    /// </summary>
    public bool EmulateTouch
    {
        set { this._emulateTouch = value; }
        get { return this._emulateTouch; }
    }

    /// <summary>
    /// When enabled, UI is updated using Time.realtimeSinceStartup.
    /// </summary>
    public bool UseRealTimeClock
    {
        set { this._useRealTimeClock = value; }
        get { return this._useRealTimeClock; }
    }

    /// <summary>
    /// Gets the root of the loaded Xaml.
    /// </summary>
    /// <returns>Root element.</returns>
    public FrameworkElement Content
    {
        get { return _uiView != null ? _uiView.Content : null; }
    }

    /// <summary>
    /// Indicates if this component is rendering UI to a RenderTexture.
    /// </summary>
    /// <returns></returns>
    public bool IsRenderToTexture()
    {
        return _textureCamera != null || gameObject.GetComponent<Camera>() == null;
    }

    #endregion

    #region Public events

    #region Render
    public event RenderingEventHandler Rendering
    {
        add
        {
            if (_uiView != null)
            {
                _uiView.Rendering += value;
            }
        }
        remove
        {
            if (_uiView != null)
            {
                _uiView.Rendering -= value;
            }
        }
    }

    public ViewStats GetStats()
    {
        if (_uiView != null)
        {
            return _uiView.GetStats();
        }

        return new ViewStats();
    }
    #endregion

    #region Keyboard input events
    /// <summary>
    /// Notifies Renderer that a key was pressed.
    /// </summary>
    /// <param name="key">Key identifier.</param>
    public bool KeyDown(Noesis.Key key)
    {
        if (_uiView != null)
        {
            return _uiView.KeyDown(key);
        }

        return false;
    }

    /// <summary>
    /// Notifies Renderer that a key was released.
    /// </summary>
    /// <param name="key">Key identifier.</param>
    public bool KeyUp(Noesis.Key key)
    {
        if (_uiView != null)
        {
            return _uiView.KeyUp(key);
        }

        return false;
    }

    /// <summary>
    /// Notifies Renderer that a key was translated to the corresponding character.
    /// </summary>
    /// <param name="ch">Unicode character value.</param>
    public bool Char(uint ch)
    {
        if (_uiView != null)
        {
            return _uiView.Char(ch);
        }

        return false;
    }
    #endregion

    #region Mouse input events
    /// <summary>
    /// Notifies Renderer that mouse was moved. The mouse position is specified in renderer
    /// surface pixel coordinates.
    /// </summary>
    /// <param name="x">Mouse x-coordinate.</param>
    /// <param name="y">Mouse y-coordinate.</param>
    public bool MouseMove(int x, int y)
    {
        if (_uiView != null)
        {
            return _uiView.MouseMove(x, y);
        }

        return false;
    }

    /// <summary>
    /// Notifies Renderer that a mouse button was pressed. The mouse position is specified in
    /// renderer surface pixel coordinates.
    /// </summary>
    /// <param name="x">Mouse x-coordinate.</param>
    /// <param name="y">Mouse y-coordinate.</param>
    /// <param name="button">Indicates which button was pressed.</param>
    public bool MouseButtonDown(int x, int y, Noesis.MouseButton button)
    {
        if (_uiView != null)
        {
            return _uiView.MouseButtonDown(x, y, button);
        }

        return false;
    }

    /// Notifies Renderer that a mouse button was released. The mouse position is specified in
    /// renderer surface pixel coordinates.
    /// </summary>
    /// <param name="x">Mouse x-coordinate.</param>
    /// <param name="y">Mouse y-coordinate.</param>
    /// <param name="button">Indicates which button was released.</param>
    public bool MouseButtonUp(int x, int y, Noesis.MouseButton button)
    {
        if (_uiView != null)
        {
            return _uiView.MouseButtonUp(x, y, button);
        }

        return false;
    }

    /// <summary>
    /// Notifies Renderer of a mouse button double click. The mouse position is specified in
    /// renderer surface pixel coordinates.
    /// </summary>
    /// <param name="x">Mouse x-coordinate.</param>
    /// <param name="y">Mouse y-coordinate.</param>
    /// <param name="button">Indicates which button was pressed.</param>
    public bool MouseDoubleClick(int x, int y, Noesis.MouseButton button)
    {
        if (_uiView != null)
        {
            return _uiView.MouseDoubleClick(x, y, button);
        }

        return false;
    }

    /// <summary>
    /// Notifies Renderer that mouse wheel was rotated. The mouse position is specified in
    /// renderer surface pixel coordinates.
    /// </summary>
    /// <param name="x">Mouse x-coordinate.</param>
    /// <param name="y">Mouse y-coordinate.</param>
    /// <param name="wheelRotation">Indicates the amount mouse wheel has changed.</param>
    public bool MouseWheel(int x, int y, int wheelRotation)
    {
        if (_uiView != null)
        {
            return _uiView.MouseWheel(x, y, wheelRotation);
        }

        return false;
    }
    #endregion

    #region Touch input events
    /// <summary>
    /// Notifies Renderer that a finger is moving on the screen. The finger position is
    /// specified in renderer surface pixel coordinates.
    /// </summary>
    /// <param name="x">Finger x-coordinate.</param>
    /// <param name="y">Finger y-coordinate.</param>
    /// <param name="touchId">Finger identifier.</param>
    public bool TouchMove(int x, int y, uint touchId)
    {
        if (_uiView != null)
        {
            return _uiView.TouchMove(x, y, touchId);
        }

        return false;
    }

    /// <summary>
    /// Notifies Renderer that a finger touches the screen. The finger position is
    /// specified in renderer surface pixel coordinates.
    /// </summary>
    /// <param name="x">Finger x-coordinate.</param>
    /// <param name="y">Finger y-coordinate.</param>
    /// <param name="touchId">Finger identifier.</param>
    public bool TouchDown(int x, int y, uint touchId)
    {
        if (_uiView != null)
        {
            return _uiView.TouchDown(x, y, touchId);
        }

        return false;
    }

    /// <summary>
    /// Notifies Renderer that a finger is raised off the screen. The finger position is
    /// specified in renderer surface pixel coordinates.
    /// </summary>
    /// <param name="x">Finger x-coordinate.</param>
    /// <param name="y">Finger y-coordinate.</param>
    /// <param name="touchId">Finger identifier.</param>
    public bool TouchUp(int x, int y, uint touchId)
    {
        if (_uiView != null)
        {
            return _uiView.TouchUp(x, y, touchId);
        }

        return false;
    }
    #endregion

    #endregion

    #region Public methods

    /// <summary>
    /// Loads the user interface specified in the XAML property
    /// </summary>
    public void LoadXaml(bool force)
    {
        if (force)
        {
            DestroyView();
        }

        if (_xaml != null && _uiView == null)
        {
            FrameworkElement content = _xaml.Load() as FrameworkElement;

            if (content == null)
            {
                throw new System.Exception("XAML root is not FrameworkElement");
            }

            CreateView(content);
        }
    }

    #endregion

    #region Private members

    #region MonoBehavior component messages

    /// <summary>
    /// Called once when component is attached to GameObject for the first time
    /// </summary>
    void Reset()
    {
        _isPPAAEnabled = true;
        _tessellationMaxPixelError = Noesis.TessellationMaxPixelError.MediumQuality.Error;
        _renderFlags = 0;
        _continuousRendering = gameObject.GetComponent<Camera>() != null;
        _enableKeyboard = true;
        _enableMouse = true;
        _enableTouch = true;
        _enableGamepad = false;
        _emulateTouch = false;
        _useRealTimeClock = false;
    }

    Camera _myCamera;

    void OnEnable()
    {
        _commands = new UnityEngine.Rendering.CommandBuffer();

        if (GetComponent<Camera>() == null)
        {
            if (_texture != null && _textureCamera == null)
            {
                _textureCamera = gameObject.AddComponent<Camera>();
                _textureCamera.clearFlags = CameraClearFlags.SolidColor;
                _textureCamera.backgroundColor = new UnityEngine.Color(0.0f, 0.0f, 0.0f, 0.0f);
                _textureCamera.renderingPath = RenderingPath.Forward;
                _textureCamera.depthTextureMode = DepthTextureMode.None;
                _textureCamera.opaqueSortMode = UnityEngine.Rendering.OpaqueSortMode.NoDistanceSort;
                _textureCamera.transparencySortMode = TransparencySortMode.Orthographic;
                _textureCamera.clearStencilAfterLightingPass = false;
#if UNITY_5_6_OR_NEWER
                _textureCamera.allowHDR = false;
#else
                _textureCamera.hdr = false;
#endif
                _textureCamera.useOcclusionCulling = false;
                _textureCamera.cullingMask = 0;
                _textureCamera.targetTexture = _texture;
                _textureCamera.enabled = false;
            }
        }

        _myCamera = GetComponent<Camera>();

        LoadXaml(false);

        Camera.onPreRender += PreRender;

#if UNITY_2019_1_OR_NEWER
        // When SRP is active PreRender and PostRender camera events are disabled. Pipeline callbacks need to be used
        RenderPipelineAsset pipeline = GraphicsSettings.renderPipelineAsset;
        if (pipeline)
        {
            UnityEngine.Rendering.RenderPipelineManager.beginCameraRendering += BeginCameraRendering;
            UnityEngine.Rendering.RenderPipelineManager.endCameraRendering += EndCameraRendering;
        }
#endif
    }

    void OnDisable()
    {
        Camera.onPreRender -= PreRender;

#if UNITY_2019_1_OR_NEWER
        UnityEngine.Rendering.RenderPipelineManager.beginCameraRendering -= BeginCameraRendering;
        UnityEngine.Rendering.RenderPipelineManager.endCameraRendering -= EndCameraRendering;
#endif
    }

    bool _haveNoesisVertical = false;
    bool _haveNoesisHorizontal = false;
    bool _haveNoesisAccept = false;
    bool _haveNoesisCancel = false;
    bool _haveNoesisMenu = false;
    bool _haveNoesisView = false;
    bool _haveNoesisPageLeft = false;
    bool _haveNoesisPageRight = false;
    bool _haveNoesisPageUp = false;
    bool _haveNoesisPageDown = false;
    bool _haveNoesisScroll = false;
    bool _haveNoesisHScroll = false;

    void Awake()
    {
        // Unity does not offer a better way to detect mapped axis
        try { Input.GetAxis("Noesis_Vertical"); _haveNoesisVertical = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_Horizontal"); _haveNoesisHorizontal = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_Accept"); _haveNoesisAccept = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_Cancel"); _haveNoesisCancel = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_Menu"); _haveNoesisMenu = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_View"); _haveNoesisView = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_PageLeft"); _haveNoesisPageLeft = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_PageRight"); _haveNoesisPageRight = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_PageUp"); _haveNoesisPageUp = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_PageDown"); _haveNoesisPageDown = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_Scroll"); _haveNoesisScroll = true; } catch (Exception) {}
        try { Input.GetAxis("Noesis_HScroll"); _haveNoesisHScroll = true; } catch (Exception) {}
    }

#if UNITY_2019_1_OR_NEWER
    private void BeginCameraRendering(ScriptableRenderContext context, Camera camera)
    {
        if (_myCamera == camera)
        {
            if (_uiView != null && _visible)
            {
                _commands.name = "Noesis (Offscreen)";
                NoesisRenderer.RenderOffscreen(_uiView, _commands);
                context.ExecuteCommandBuffer(_commands);
                _commands.Clear();

                context.Submit();
                GL.InvalidateState();
                ForceRestoreCameraRenderTarget();

            #if UNITY_EDITOR
                _pendingUpdates = 0;
            #endif
            }
        }
    }

    private void EndCameraRendering(ScriptableRenderContext context, Camera camera)
    {
        if (_myCamera == camera)
        {
            if (_uiView != null && _visible)
            {
                _commands.name = "Noesis (Onscreen)";
                NoesisRenderer.RenderOnscreen(_uiView, FlipRender(), _commands);
                context.ExecuteCommandBuffer(_commands);
                _commands.Clear();

                context.Submit();
                GL.InvalidateState();
                DiscardTexture();
            }
        }
    }
#endif

    void OnDestroy()
    {
        if (_textureCamera != null)
        {
            UnityEngine.Object.Destroy(_textureCamera);
            _textureCamera = null;
        }

        DestroyView();
    }

    UnityEngine.EventSystems.PointerEventData _pointerData;

    private UnityEngine.Vector2 ProjectPointer(float x, float y)
    {
        if (_textureCamera == null)
        {
            return new UnityEngine.Vector2(x, UnityEngine.Screen.height - y);
        }
        else if (_texture != null)
        {
            // Project using texture coordinates

            // First try with Unity GUI RawImage objects
            UnityEngine.EventSystems.EventSystem eventSystem = UnityEngine.EventSystems.EventSystem.current;

            if (eventSystem != null && eventSystem.IsPointerOverGameObject())
            {
                UnityEngine.Vector2 pos = new UnityEngine.Vector2(x, y);

                if (_pointerData == null)
                {
                    _pointerData = new UnityEngine.EventSystems.PointerEventData(eventSystem)
                    {
                        pointerId = 0,
                        position = pos
                    };
                }
                else
                {
                    _pointerData.Reset();
                }

                _pointerData.delta = pos - _pointerData.position;
                _pointerData.position = pos;

                UnityEngine.RectTransform rect = GetComponent<UnityEngine.RectTransform>();

                if (rect != null &&
                    UnityEngine.RectTransformUtility.ScreenPointToLocalPointInRectangle(
                        rect, _pointerData.position, _pointerData.pressEventCamera, out pos))
                {
                    UnityEngine.Vector2 pivot = new UnityEngine.Vector2(
                        rect.pivot.x * rect.rect.width,
                        rect.pivot.y * rect.rect.height);

                    float texCoordX = (pos.x + pivot.x) / rect.rect.width;
                    float texCoordY = (pos.y + pivot.y) / rect.rect.height;

                    float localX = _texture.width * texCoordX;
                    float localY = _texture.height * (1.0f - texCoordY);
                    return new UnityEngine.Vector2(localX, localY);
                }
            }

            // NOTE: A MeshCollider must be attached to the target to obtain valid
            // texture coordinates, otherwise Hit Testing won't work

            UnityEngine.Ray ray = UnityEngine.Camera.main.ScreenPointToRay(new UnityEngine.Vector3(x, y, 0));

            UnityEngine.RaycastHit hit;
            if (UnityEngine.Physics.Raycast(ray, out hit))
            {
                if (hit.collider.gameObject == gameObject)
                {
                    float localX = _texture.width * hit.textureCoord.x;
                    float localY = _texture.height * (1.0f - hit.textureCoord.y);
                    return new UnityEngine.Vector2(localX, localY);
                }
            }

            return new UnityEngine.Vector2(-1, -1);
        }

        return Vector2.zero;
    }

    private bool _touchEmulated = false;
    private UnityEngine.Vector3 _mousePos;
    private int _activeDisplay = 0;

    private Vector3 MousePosition(Vector3 mousePosition)
    {
        Vector3 p = Display.RelativeMouseAt(mousePosition);

        if (p == Vector3.zero)
        {
            return mousePosition;
        }

        _activeDisplay = (int)p.z;
        return p;
    }

    private void UpdateMouse()
    {
        Vector3 mousePos = MousePosition(UnityEngine.Input.mousePosition);

        // mouse move
        if (_activeDisplay == _myCamera.targetDisplay && _mousePos != mousePos)
        {
            _mousePos = mousePos;

            UnityEngine.Vector2 mouse = ProjectPointer(_mousePos.x, _mousePos.y);

            if (_emulateTouch)
            {
                if (_touchEmulated)
                {
                    _uiView.TouchMove((int)mouse.x, (int)mouse.y, 0);
                }
            }
            else
            {
                _uiView.MouseMove((int)mouse.x, (int)mouse.y);
            }
        }
    }

    private void UpdateTouch()
    {
        for (int i = 0; i < UnityEngine.Input.touchCount; i++)
        {
            UnityEngine.Touch touch = UnityEngine.Input.GetTouch(i);
            uint id = (uint)touch.fingerId;
            UnityEngine.Vector2 pos = ProjectPointer(touch.position.x, touch.position.y);
            UnityEngine.TouchPhase phase = touch.phase;

            if (phase == UnityEngine.TouchPhase.Began)
            {
                _uiView.TouchDown((int)pos.x, (int)pos.y, id);
            }
            else if (phase == UnityEngine.TouchPhase.Moved || phase == UnityEngine.TouchPhase.Stationary)
            {
                _uiView.TouchMove((int)pos.x, (int)pos.y, id);
            }
            else
            {
                _uiView.TouchUp((int)pos.x, (int)pos.y, id);
            }
        }
    }

    [FlagsAttribute]
    enum GamepadButtons
    {
         Up = 1,
         Down = 2,
         Left = 4,
         Right = 8,
         Accept = 16,
         Cancel = 32,
         Menu = 64,
         View = 128,
         PageUp = 256,
         PageDown = 512,
         PageLeft = 1024,
         PageRight = 2048
    }

    private static readonly Dictionary<GamepadButtons, Noesis.Key> GamepadButtonsMap = new Dictionary<GamepadButtons, Noesis.Key>
    {
        { GamepadButtons.Up, Key.GamepadUp },
        { GamepadButtons.Down, Key.GamepadDown },
        { GamepadButtons.Left, Key.GamepadLeft },
        { GamepadButtons.Right, Key.GamepadRight },
        { GamepadButtons.Accept, Key.GamepadAccept },
        { GamepadButtons.Cancel, Key.GamepadCancel },
        { GamepadButtons.Menu, Key.GamepadMenu},
        { GamepadButtons.View, Key.GamepadView },
        { GamepadButtons.PageUp, Key.GamepadPageUp },
        { GamepadButtons.PageDown, Key.GamepadPageDown },
        { GamepadButtons.PageLeft, Key.GamepadPageLeft },
        { GamepadButtons.PageRight, Key.GamepadPageRight },
    };

    private GamepadButtons _gamepadButtons = 0;

    private void UpdateGamepad()
    {
        GamepadButtons gamepadButtons = 0;

        if (_haveNoesisVertical)
        {
            float v = Input.GetAxis("Noesis_Vertical");
            if (v > 0.5f) gamepadButtons |= GamepadButtons.Up;
            if (v < -0.5f) gamepadButtons |= GamepadButtons.Down;
        }

        if (_haveNoesisHorizontal)
        {
            float v = Input.GetAxis("Noesis_Horizontal");
            if (v > 0.5f) gamepadButtons |= GamepadButtons.Right;
            if (v < -0.5f) gamepadButtons |= GamepadButtons.Left;
        }

        if (_haveNoesisAccept)
        {
            if (Input.GetButton("Noesis_Accept")) gamepadButtons |= GamepadButtons.Accept;
        }

        if (_haveNoesisCancel)
        {
            if (Input.GetButton("Noesis_Cancel")) gamepadButtons |= GamepadButtons.Cancel;
        }

        if (_haveNoesisMenu)
        {
            if (Input.GetButton("Noesis_Menu")) gamepadButtons |= GamepadButtons.Menu;
        }

        if (_haveNoesisView)
        {
            if (Input.GetButton("Noesis_View")) gamepadButtons |= GamepadButtons.View;
        }

        if (_haveNoesisPageLeft)
        {
            if (Input.GetButton("Noesis_PageLeft")) gamepadButtons |= GamepadButtons.PageLeft;
        }

        if (_haveNoesisPageRight)
        {
            if (Input.GetButton("Noesis_PageRight")) gamepadButtons |= GamepadButtons.PageRight;
        }

        if (_haveNoesisPageUp)
        {
            if (Input.GetAxis("Noesis_PageUp") > 0.5f) gamepadButtons |= GamepadButtons.PageUp;
        }

        if (_haveNoesisPageDown)
        {
            if (Input.GetAxis("Noesis_PageDown") > 0.5f) gamepadButtons |= GamepadButtons.PageDown;
        }

        if (_haveNoesisScroll)
        {
            float v = Input.GetAxisRaw("Noesis_Scroll");
            if (Math.Abs(v) > 0.05f) _uiView.Scroll(v);
        }

        if (_haveNoesisHScroll)
        {
            float v = Input.GetAxisRaw("Noesis_HScroll");
            if (Math.Abs(v) > 0.05f) _uiView.HScroll(v);
        }

        GamepadButtons delta = gamepadButtons ^ _gamepadButtons;
        if (delta != 0)
        {
            foreach (var pair in GamepadButtonsMap)
            {
                if ((delta & pair.Key) > 0)
                {
                    if ((gamepadButtons & pair.Key) > 0)
                    {
                        _uiView.KeyDown(pair.Value);
                    }
                    else
                    {
                        _uiView.KeyUp(pair.Value);
                    }
                }
            }
        }

         _gamepadButtons = gamepadButtons;
    }

    private void UpdateInputs()
    {
        if (_enableMouse)
        {
            UpdateMouse();
        }

        if (_enableTouch)
        {
            UpdateTouch();
        }

        if (_enableGamepad)
        {
            UpdateGamepad();
        }
    }

    private void UpdateSettings()
    {
        if (_myCamera != null)
        {
            _uiView.SetSize(_myCamera.pixelWidth, _myCamera.pixelHeight);
        }
    }

    private bool _visible = true;

#if UNITY_EDITOR
    private int _pendingUpdates = 0;
#endif

    void LateUpdate()
    {
        if (_uiView != null && _visible)
        {

#if UNITY_EDITOR
            // Make sure render queue is flushed to avoid memory growing
            // Under normal circumstances this counter will be 0, but if for example we are in
            // Play mode and the Game view is hidden (by switching to Scene View) then we need to
            // force an Update in the render to clear the queue
            if (_pendingUpdates > 4)
            {
                RenderOffscreen();
            }
#endif
            UpdateInputs();
            UpdateSettings();
            NoesisUnity.IME.Update(_uiView);
            NoesisUnity.TouchKeyboard.Update();
            Noesis_UnityUpdate();
            _needsRendering = _uiView.Update(_useRealTimeClock ? Time.realtimeSinceStartup : Time.time);

#if UNITY_EDITOR
            if (_needsRendering)
            {
                _pendingUpdates++;
            }
#endif

            if (_textureCamera != null)
            {
                if (_continuousRendering || _needsRendering)
                {
                    _textureCamera.Render();
                }
            }
        }
    }

    void OnBecameInvisible()
    {
        if (_uiView != null && _textureCamera != null)
        {
            _visible = false;
        }
    }

    void OnBecameVisible()
    {
        if (_uiView != null && _textureCamera != null)
        {
            _visible = true;
        }
    }

    private bool _updatePending = true;

    private void PreRender(Camera cam)
    {
        // In case there are several cameras rendering to the same texture (Camera Stacking),
        // the camera rendered first (less depth) is the one that must apply our offscreen phase
        // to avoid inefficient Load/Store in Tiled architectures
        // Note that camera stacking is deprecated in LWRP and HDRP
        if (_updatePending && cam.targetTexture == _myCamera.targetTexture && cam.depth <= _myCamera.depth)
        {
            RenderOffscreen();
            _updatePending = false;
        }
    }

    private void ForceRestoreCameraRenderTarget()
    {
        // Unity should automatically restore the render target but sometimes (for example a scene without lights)
        // it doesn't. We use this hack to flush the active render target and force unity to set the camera RT afterward
        RenderTexture surface = RenderTexture.GetTemporary(1,1);
        Graphics.SetRenderTarget(surface);
        RenderTexture.ReleaseTemporary(surface);
    }

    private void DiscardTexture()
    {
        if (_texture != null)
        {
            _texture.DiscardContents(false, true);
        }
    }

    private void RenderOffscreen()
    {
        if (_uiView != null && _visible)
        {
            _commands.name = "Noesis (Offscreen)";
            NoesisRenderer.RenderOffscreen(_uiView, _commands);
            Graphics.ExecuteCommandBuffer(_commands);
            _commands.Clear();

            GL.InvalidateState();
            ForceRestoreCameraRenderTarget();

        #if UNITY_EDITOR
            _pendingUpdates = 0;
        #endif
        }
    }

    private bool IsGL()
    {
        return
            SystemInfo.graphicsDeviceType == GraphicsDeviceType.OpenGLES2 ||
            SystemInfo.graphicsDeviceType == GraphicsDeviceType.OpenGLES3 ||
            SystemInfo.graphicsDeviceType == GraphicsDeviceType.OpenGLCore;
    }

    private bool FlipRender()
    {
        // In D3D when Unity is rendering to an intermmediate texture instead of the back buffer, we need to vertically flip the output
        // Note that camera.activeTexture should only be checked from OnPostRender
        if (!IsGL())
        {
            return _myCamera.activeTexture != null;
        }

        return false;
    }

    private void RenderOnscreen()
    {
        if (_uiView != null && _visible)
        {
            _commands.name = "Noesis (Onscreen)";
            NoesisRenderer.RenderOnscreen(_uiView, FlipRender(), _commands);
            Graphics.ExecuteCommandBuffer(_commands);
            _commands.Clear();

            GL.InvalidateState();
            DiscardTexture();

            _updatePending = true;
        }
    }

    private void OnPostRender()
    {
        RenderOnscreen();
    }

    private UnityEngine.EventModifiers _modifiers = 0;

    private void ProcessModifierKey(EventModifiers modifiers, EventModifiers delta, EventModifiers flag, Noesis.Key key)
    {
        if ((delta & flag) > 0)
        {
            if ((modifiers & flag) > 0)
            {
                _uiView.KeyDown(key);
            }
            else
            {
                _uiView.KeyUp(key);
            }
        }
    }

    private bool HitTest(float x, float y)
    {
        return VisualTreeHelper.HitTest((Visual)VisualTreeHelper.GetRoot(_uiView.Content), new Point(x, y)).VisualHit != null;
    }

#if !UNITY_EDITOR && UNITY_STANDALONE_OSX
    private static int lastFrame;
    private static Noesis.Key lastKeyDown;
#endif

    private void ProcessEvent(UnityEngine.Event ev, bool enableKeyboard, bool enableMouse, bool emulateTouch)
    {
        // Process keyboard modifiers
        if (enableKeyboard)
        {
            EventModifiers delta = ev.modifiers ^ _modifiers;
            if (delta > 0)
            {
                _modifiers = ev.modifiers;

                ProcessModifierKey(ev.modifiers, delta, EventModifiers.Shift, Key.LeftShift);
                ProcessModifierKey(ev.modifiers, delta, EventModifiers.Control, Key.LeftCtrl);
                ProcessModifierKey(ev.modifiers, delta, EventModifiers.Command, Key.LeftCtrl);
                ProcessModifierKey(ev.modifiers, delta, EventModifiers.Alt, Key.LeftAlt);
            }
        }

        switch (ev.type)
        {
            case UnityEngine.EventType.MouseDown:
            {
                if (enableMouse)
                {
                    UnityEngine.Vector2 mouse = ProjectPointer(ev.mousePosition.x, UnityEngine.Screen.height - ev.mousePosition.y);

                    if (HitTest(mouse.x, mouse.y))
                    {
                        ev.Use();
                    }

                    if (emulateTouch)
                    {
                        _uiView.TouchDown((int)mouse.x, (int)mouse.y, 0);
                        _touchEmulated = true;
                    }
                    else
                    {
                        // Ignore events generated by Unity to simulate a mouse down when a touch event occurs
                        bool mouseEmulated = Input.simulateMouseWithTouches && Input.touchCount > 0;
                        if (!mouseEmulated)
                        {
                            if (ev.clickCount == 1)
                            {
                                _uiView.MouseButtonDown((int)mouse.x, (int)mouse.y, (Noesis.MouseButton)ev.button);
                            }
                            else
                            {
                                _uiView.MouseDoubleClick((int)mouse.x, (int)mouse.y, (Noesis.MouseButton)ev.button);
                            }
                        }
                    }
                }
                break;
            }
            case UnityEngine.EventType.MouseUp:
            {
                if (enableMouse)
                {
                    UnityEngine.Vector2 mouse = ProjectPointer(ev.mousePosition.x, UnityEngine.Screen.height - ev.mousePosition.y);

                    if (HitTest(mouse.x, mouse.y))
                    {
                        ev.Use();
                    }

                    if (emulateTouch && _touchEmulated)
                    {
                        _uiView.TouchUp((int)mouse.x, (int)mouse.y, 0);
                        _touchEmulated = false;
                    }
                    else
                    {
                        // Ignore events generated by Unity to simulate a mouse up when a touch event occurs
                        bool mouseEmulated = Input.simulateMouseWithTouches && Input.touchCount > 0;
                        if (!mouseEmulated)
                        {
                            _uiView.MouseButtonUp((int)mouse.x, (int)mouse.y, (Noesis.MouseButton)ev.button);
                        }
                    }
                }
                break;
            }
            case UnityEngine.EventType.ScrollWheel:
            {
                if (enableMouse)
                {
                    UnityEngine.Vector2 mouse = ProjectPointer(ev.mousePosition.x, UnityEngine.Screen.height - ev.mousePosition.y);

                    if (ev.delta.y != 0.0f)
                    {
                        _uiView.MouseWheel((int)mouse.x, (int)mouse.y, -(int)(ev.delta.y * 40.0f));
                    }

                    if (ev.delta.x != 0.0f)
                    {
                        _uiView.MouseHWheel((int)mouse.x, (int)mouse.y, (int)(ev.delta.x * 40.0f));
                    }
                }
                break;
            }
            case UnityEngine.EventType.KeyDown:
            {
                if (enableKeyboard)
                {
                    // Don't process key when IME composition is being used
                    if (ev.keyCode != KeyCode.None && NoesisUnity.IME.compositionString == "")
                    {
                        Noesis.Key noesisKeyCode = NoesisKeyCodes.Convert(ev.keyCode);
                        if (noesisKeyCode != Noesis.Key.None)
                        {
#if !UNITY_EDITOR && UNITY_STANDALONE_OSX
                            // In OSX Standalone, CMD + key always sends two KeyDown events for the key.
                            // This seems to be a bug in Unity.
                            if (!ev.command || lastFrame != Time.frameCount || lastKeyDown != noesisKeyCode)
                            {
                                lastFrame = Time.frameCount;
                                lastKeyDown = noesisKeyCode;
#endif
                                _uiView.KeyDown(noesisKeyCode);
#if !UNITY_EDITOR && UNITY_STANDALONE_OSX
                            }
#endif
                        }
                    }

                    if (ev.character != 0)
                    {
                        // Filter out character events when CTRL is down
                        bool isControl = (_modifiers & EventModifiers.Control) != 0 || (_modifiers & EventModifiers.Command) != 0;
                        bool isAlt = (_modifiers & EventModifiers.Alt) != 0;
                        bool filter = isControl && !isAlt;

                        if (!filter)
                        {
#if !UNITY_EDITOR && UNITY_STANDALONE_LINUX
                            // It seems that linux is sending KeySyms instead of Unicode points
                            // https://github.com/substack/node-keysym/blob/master/data/keysyms.txt
                            ev.character = NoesisKeyCodes.KeySymToUnicode(ev.character);
#endif
                            _uiView.Char((uint)ev.character);
                        }
                    }

                }
                break;
            }
            case UnityEngine.EventType.KeyUp:
            {
                // Don't process key when IME composition is being used
                if (enableKeyboard)
                {
                    if (ev.keyCode != KeyCode.None && NoesisUnity.IME.compositionString == "")
                    {
                        Noesis.Key noesisKeyCode = NoesisKeyCodes.Convert(ev.keyCode);
                        if (noesisKeyCode != Noesis.Key.None)
                        {
                            _uiView.KeyUp(noesisKeyCode);
                        }
                    }
                }
                break;
            }
        }
    }

    void OnGUI()
    {
        if (_uiView != null && _activeDisplay == _myCamera.targetDisplay)
        {
            UnityEngine.GUI.depth = -(int)_myCamera.depth;
            ProcessEvent(UnityEngine.Event.current, _enableKeyboard, _enableMouse, _emulateTouch);
        }
    }

    void OnApplicationFocus(bool focused)
    {
        if (_uiView != null)
        {
            if (NoesisUnity.TouchKeyboard.keyboard == null)
            {
                if (focused)
                {
                    _uiView.Activate();
                }
                else
                {
                    _uiView.Deactivate();
                }
            }
        }
    }
#endregion

    void SetRenderSettings()
    {
        NoesisSettings settings = NoesisSettings.Get();

        bool linearRendering = false;

        switch (settings.linearRendering)
        {
            case NoesisSettings.LinearRendering._SamesAsUnity:
            {
                linearRendering = QualitySettings.activeColorSpace == ColorSpace.Linear;
                break;
            }
            case NoesisSettings.LinearRendering._Enabled:
            {
                linearRendering = true;
                break;
            }
            case NoesisSettings.LinearRendering._Disabled:
            {
                linearRendering = false;
                break;
            }
        }

        int sampleCount = 1;

        switch (settings.offscreenSampleCount)
        {
            case NoesisSettings.OffscreenSampleCount._SameAsUnity:
            {
                sampleCount = QualitySettings.antiAliasing;
                break;
            }
            case NoesisSettings.OffscreenSampleCount._1x:
            {
                sampleCount = 1;
                break;
            }
            case NoesisSettings.OffscreenSampleCount._2x:
            {
                sampleCount = 2;
                break;
            }
            case NoesisSettings.OffscreenSampleCount._4x:
            {
                sampleCount = 4;
                break;
            }
            case NoesisSettings.OffscreenSampleCount._8x:
            {
                sampleCount = 8;
                break;
            }
        }

        uint offscreenDefaultNumSurfaces = settings.offscreenInitSurfaces;
        uint offscreenMaxNumSurfaces = settings.offscreenMaxSurfaces;

        int glyphCacheTextureWidth = 1024;
        int glyphCacheTextureHeight = 1024;

        switch (settings.glyphTextureSize)
        {
            case NoesisSettings.TextureSize._256x256:
            {
                glyphCacheTextureWidth = 256;
                glyphCacheTextureHeight = 256;
                break;
            }
            case NoesisSettings.TextureSize._512x512:
            {
                glyphCacheTextureWidth = 512;
                glyphCacheTextureHeight = 512;
                break;
            }
            case NoesisSettings.TextureSize._1024x1024:
            {
                glyphCacheTextureWidth = 1024;
                glyphCacheTextureHeight = 1024;
                break;
            }
            case NoesisSettings.TextureSize._2048x2048:
            {
                glyphCacheTextureWidth = 2048;
                glyphCacheTextureHeight = 2048;
                break;
            }
            case NoesisSettings.TextureSize._4096x4096:
            {
                glyphCacheTextureWidth = 4096;
                glyphCacheTextureHeight = 4096;
                break;
            }
        }

        Noesis_RendererSettings(linearRendering, sampleCount, offscreenDefaultNumSurfaces,
            offscreenMaxNumSurfaces, glyphCacheTextureWidth, glyphCacheTextureHeight);
    }

    private void CreateView(FrameworkElement content)
    {
        if (_uiView == null)
        {
            // Send settings for the internal device, created by the first view
            SetRenderSettings();

            _uiView = new Noesis.View(content);
            _uiView.SetTessellationMaxPixelError(_tessellationMaxPixelError);
            _uiView.SetFlags(_renderFlags);

            _commands.name = "";
            NoesisRenderer.RegisterView(_uiView, _commands);
            Graphics.ExecuteCommandBuffer(_commands);
            _commands.Clear();
        }
    }

    private void DestroyView()
    {
        if (_uiView != null)
        {
            _commands.name = "";
            NoesisRenderer.UnregisterView(_uiView, _commands);
            Graphics.ExecuteCommandBuffer(_commands);
            _commands.Clear();

            _uiView = null;
        }
    }

    public void OnBeforeSerialize() {}

    public void OnAfterDeserialize()
    {
        // (3.0) PPAA flag is now in view render flags
        if (_isPPAAEnabled)
        {
            _renderFlags |= RenderFlags.PPAA;
            _isPPAAEnabled = false;
        }
    }

    private Noesis.View _uiView;
    private Camera _textureCamera;
    private UnityEngine.Rendering.CommandBuffer _commands;
    private bool _needsRendering = false;

#region Serialized properties
    [SerializeField] private NoesisXaml _xaml;
    [SerializeField] private RenderTexture _texture;

    [SerializeField] private bool _isPPAAEnabled = true;
    [SerializeField] private float _tessellationMaxPixelError = Noesis.TessellationMaxPixelError.MediumQuality.Error;
    [SerializeField] private RenderFlags _renderFlags = 0;
    [SerializeField] private bool _continuousRendering = true;

    [SerializeField] private bool _enableKeyboard = true;
    [SerializeField] private bool _enableMouse = true;
    [SerializeField] private bool _enableTouch = true;
    [SerializeField] private bool _enableGamepad = false;
    [SerializeField] private bool _emulateTouch = false;
    [SerializeField] private bool _useRealTimeClock = false;
#endregion

#region Imports
    [DllImport(Library.Name)]
    static extern void Noesis_UnityUpdate();

    [DllImport(Library.Name)]
    static extern void Noesis_RendererSettings(bool linearSpaceRendering, int offscreenSampleCount,
        uint offscreenDefaultNumSurfaces, uint offscreenMaxNumSurfaces, int glyphCacheTextureWidth,
        int glyphCacheTextureHeight);
#endregion

#endregion
}
NoesisView.cs (45,809 bytes)

Issue History

Date Modified Username Field Change
2020-10-15 22:48 Nitae New Issue
2020-10-15 22:48 Nitae File Added: testhdrp.png
2020-10-16 11:47 jsantos Assigned To => jsantos
2020-10-16 11:47 jsantos Status new => assigned
2020-10-16 11:49 jsantos Note Added: 0006684
2020-10-16 11:49 jsantos Status assigned => feedback
2020-10-16 16:29 Nitae Note Added: 0006685
2020-10-16 16:29 Nitae Status feedback => assigned
2020-10-16 17:05 jsantos Target Version => 3.0.7
2020-10-19 13:08 jsantos Relationship added parent of 0001349
2020-10-19 13:08 jsantos Relationship deleted parent of 0001349
2020-10-20 17:41 jsantos Note Added: 0006698
2020-10-21 12:32 jsantos File Added: NoesisView.cs
2020-10-21 12:32 jsantos Note Added: 0006699
2020-10-21 12:32 jsantos Status assigned => resolved
2020-10-21 12:32 jsantos Resolution open => fixed
2020-10-21 12:32 jsantos Fixed in Version => 3.0.7
2020-10-30 19:28 kokolihapihvi Relationship added related to 0001826
