| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0003662 | NoesisGUI | Unity | public | 2024-08-28 14:01 | 2026-01-27 13:21 |
| Reporter | Xaron | Assigned To | jsantos | ||
| Priority | normal | Severity | major | ||
| Status | resolved | Resolution | suspended | ||
| Product Version | 3.2.3 | ||||
| Summary | 0003662: Drawing large circles create too complex geometry | ||||

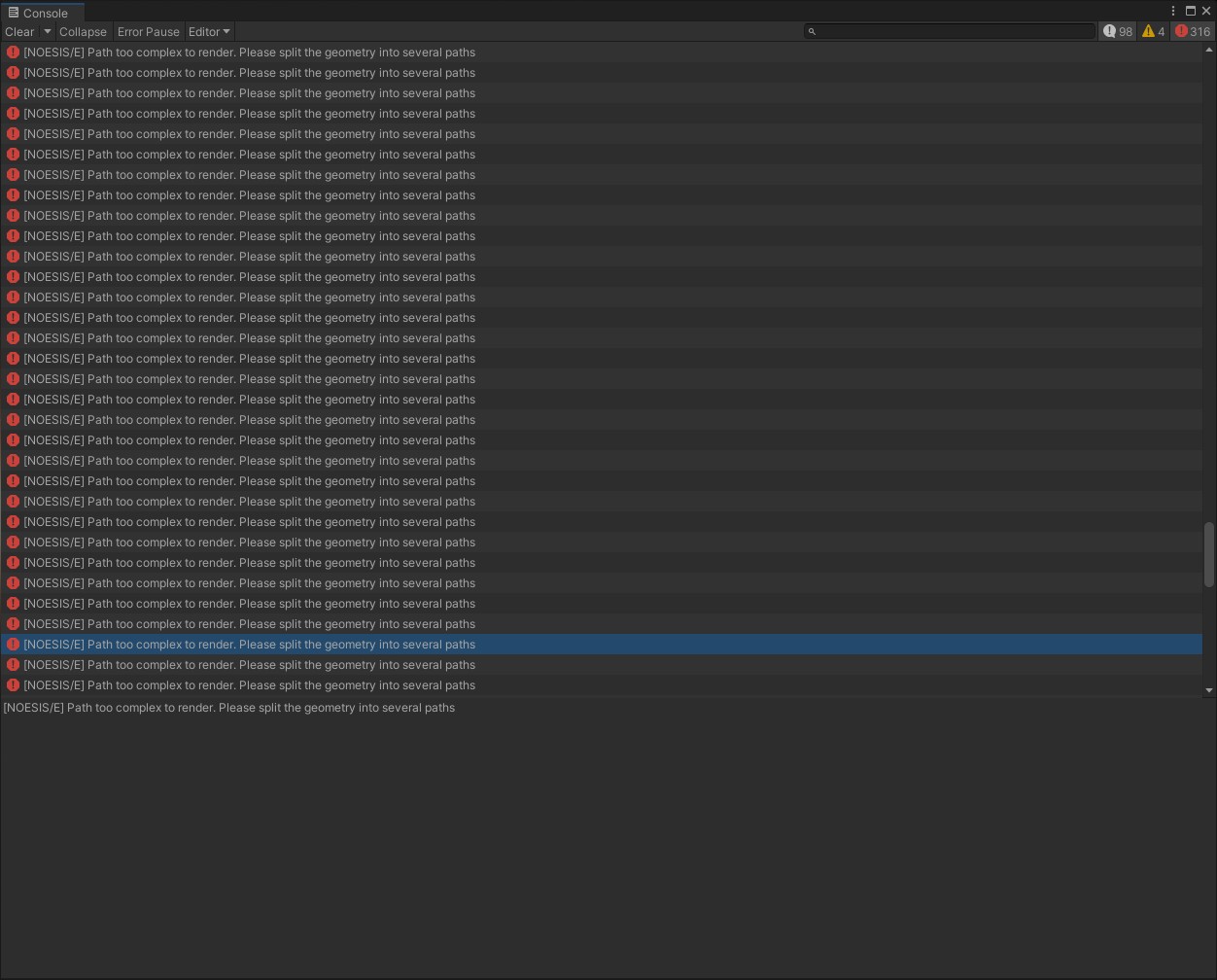

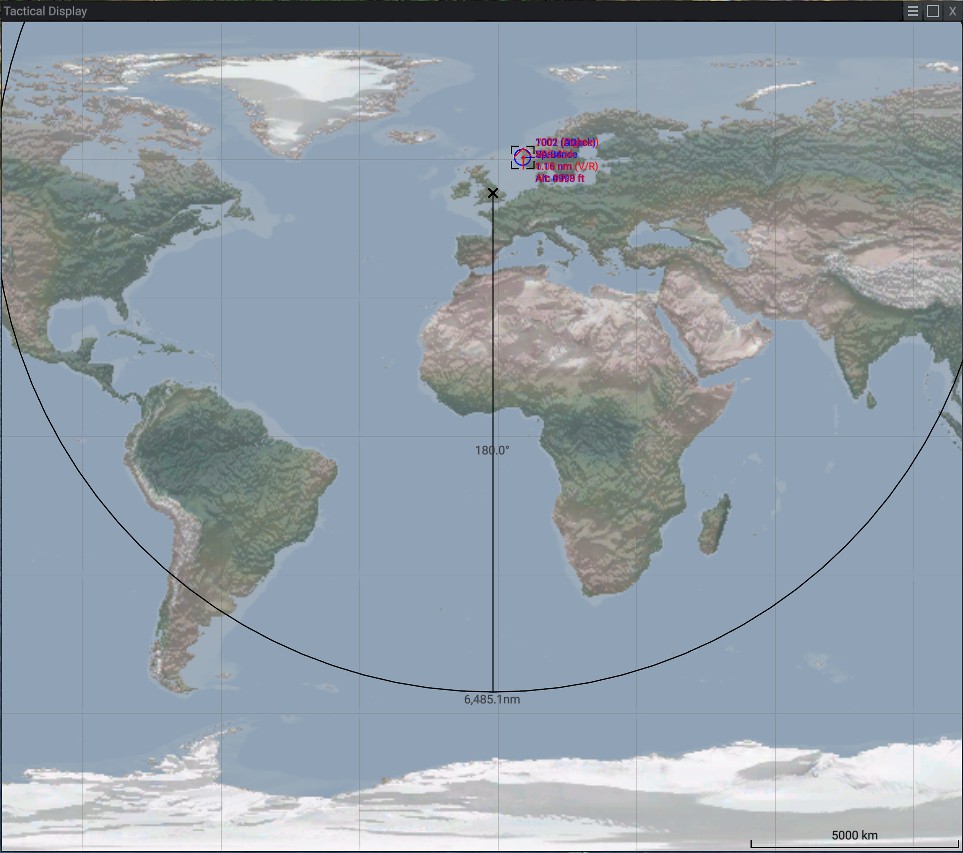

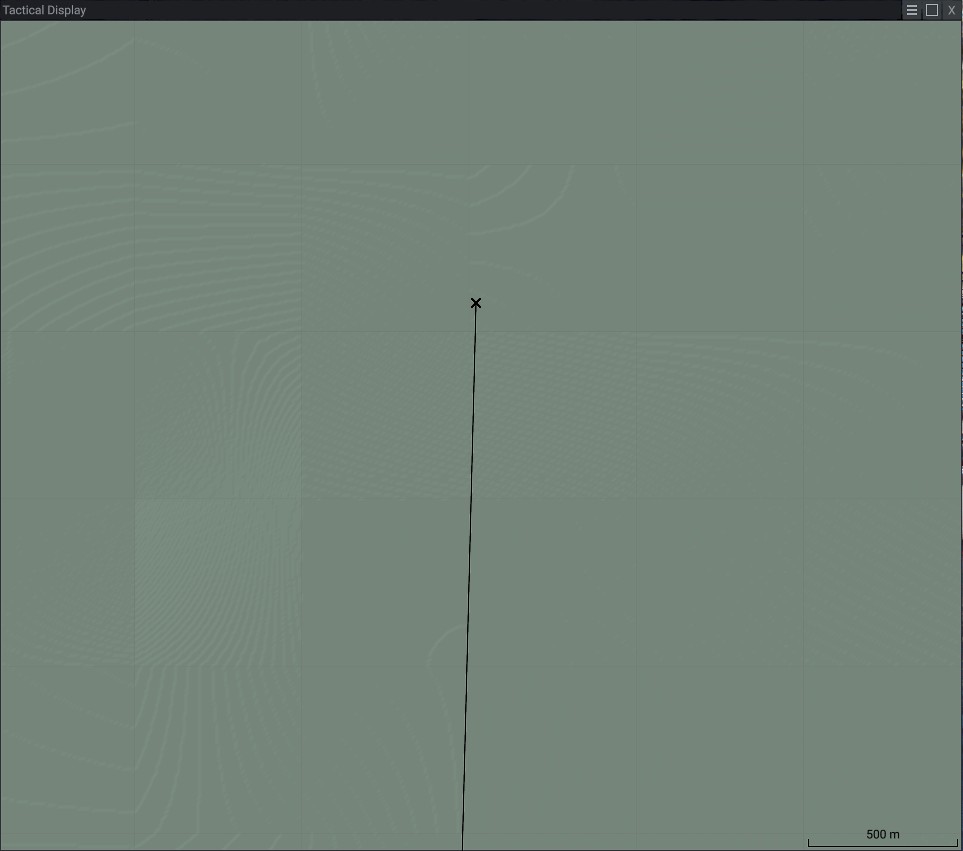

| Description | In our project we have a zoomable map and drawing tools. When we zoom out and draw a large circle on our map all is fine. Please note the scale of 5000km in the lower right of the map. See screenshot 1-map-zoomed-out-jpg Now when we zoom in like in screenshot 2-map-zoomed-in.jpg we get lots of errors from Noesis. Please note the scale of 0.5km in the lower right of the map. See screenshot 3-error.jpg My guess is that there should be some checks if that circle is even in the field of view, if not it should basically just draw parts of it. Probably the circle itself is drawn in segments which get extremely large? As we want to release in a couple of weeks it's a really urgent topic for us and we would like to ask for a patch upfront. We're still using 3.2.3 as 3.2.4 crashes on our end frequently. | ||||
| Steps To Reproduce | Just draw a circle and change the scale in a way that the circle gets really large. | ||||
| Platform | Any | ||||
 |
This is not easy to solve internally without adding a lot of overhead. For an urgent solution, I recommend splitting the circle into 4 arcs. That should work fine. What 3.2.4 crashes are you getting? Are they reported? |
 |
Thank you! WIll have a look splitting it into arcs. Regarding the crash: This is the one: https://www.noesisengine.com/bugs/view.php?id=3554 3.2.3 works fine but 3.2.4 crashes quite frequently unfortunately. |
|
|
Thanks, I just increased the priority of 0003554 |
|
|
Thank you so much! |
