Summary0004662: Opacity masks are non-functional when an effect is applied.
Description

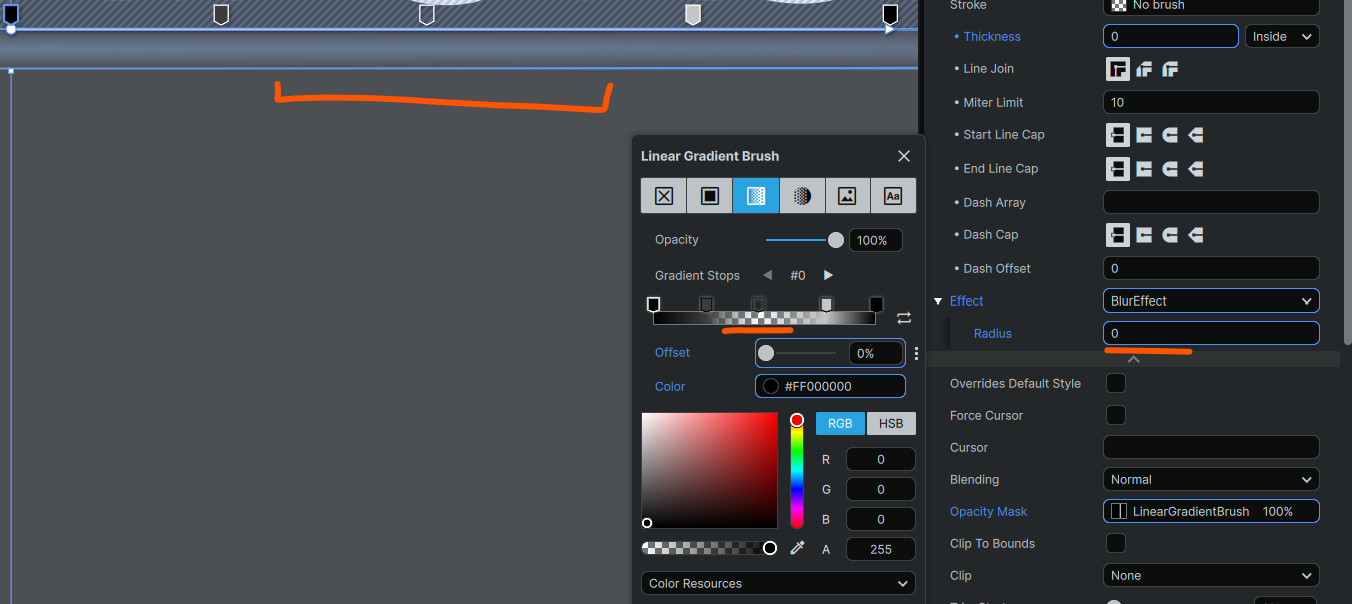

Trying to compose a masked shape with a little blur effect.
Mask is a Linear Gradient Brush.
After selecting Blur as Effect on the shape, the masking stops getting applied.
This seems to affect any combination of Brushes with any Effect
It is very confusing depending on the order of creation, if ( in my case) Blur was set first, Opacity Mask seems completely non functional without notice.

Repro Path:
1.- Create a Rectangle
2.- Apply any opacity mask to it. A linear will do, make sure it has some part translucent
3.- Apply a Blur effect with Radius 0 to the same rectangle

Expected:
Both Blur and Mask can work together

Actual:
Mask stops working the moment Effect is selected.

Attached Files
PlatformAny

Relationships

has duplicate 0004806 assignedjsantos Opacity Masks Don't Render On Elements With Effects Applied

Activities

sfernandez

sfernandez

2025-12-23 17:45

manager   ~0011667

Last edited: 2025-12-23 17:45

This is a known issue. The workaround is to apply mask and effect in different nested elements, something like:

<Border>
  <Border.Effect>
    <BlurEffect Radius="20"/>
  </Border.Effect>
  <Grid OpacityMask="{StaticResource GradientMask}">
    ...
  </Grid>
</Border>
jsantos

jsantos

2025-12-26 13:55

manager   ~0011670

I want to fix this for Noesis 4.0
